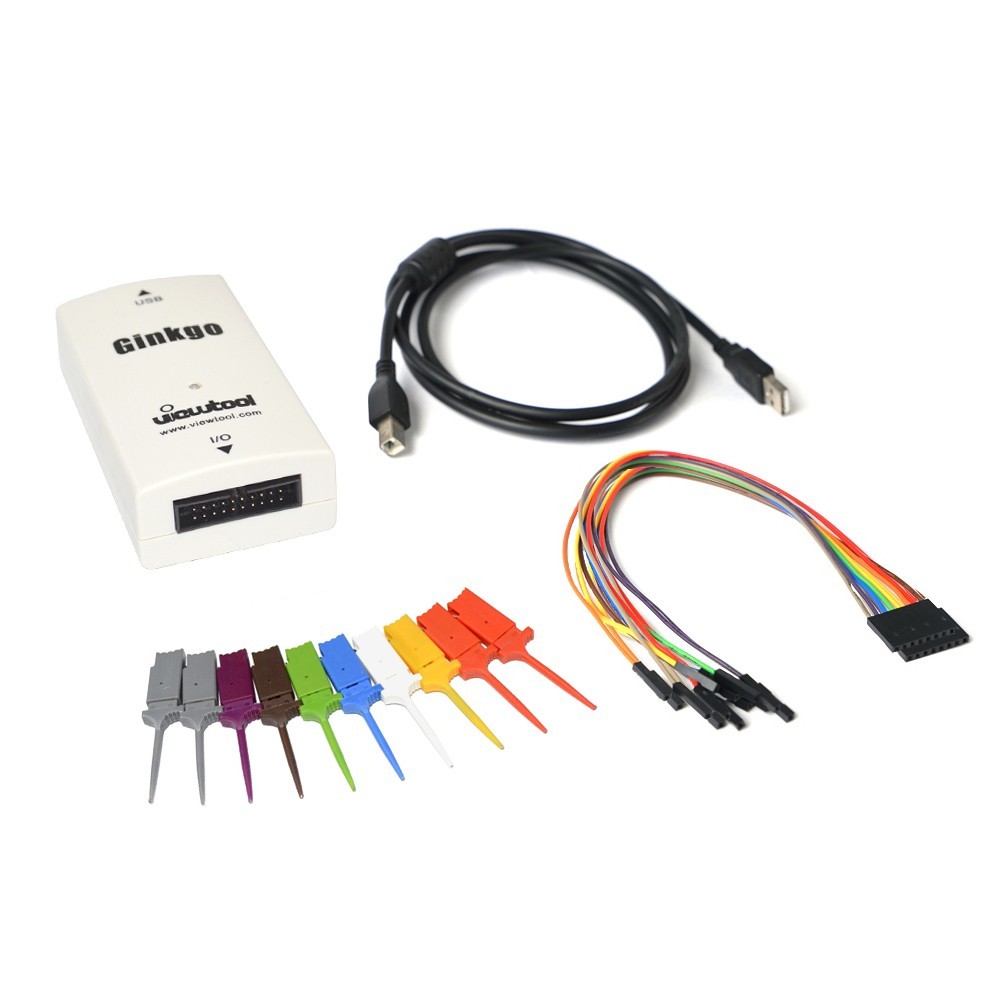

Ginkgo USB to I2C Adapter Support Windows/linux/Mac/Android/Raspberry PiUSB-I2C
Description:
Thewindows driver of Ginkgo series product has passed microsoft driver signaturecertificate, it's not necessary to use "Disable driver signatureenforcement" in all windows system.
Typical Applications:
-Controland debugging of I2C bus devices.
-Testing of I2C-interface sensors.
-Reading and writing data to I2C EEPROM menory.
-Fault detection and repair of I2C bus devices.
-Control of PMBus and SMBus interface chips.
-Assisting in the development of I2C master programmes.
-Pulse counters.
-Analogue voltage measurement,GPIO input/output control.
-PWM signal output.
-USB to dual serial port/TTL conversion (compatible with RS485 bus mode).
Feature:
-Supports the three major operating systems: Windows, Linux and MAC OS;
-Supports Android and Raspberry Pi;
-USB bus-powered, requiring no external power supply; provides 5V and 3.3V poweroutputs with a maximum current of 500mA and short-circuit protection;
-Can function as an I2C bus host (Host/Master) or slave (Slave), enablingofferirectional adaptation between USB and I2C buses;
-2-channel hardware I2C (standard mode) and 8-channel software I2C (GPIO mode);hardware I2C frequency up to 1.2 MHz, software I2C frequency up to 400 kHz,with freely adjustable frequencies;
-Supports PMBus and SMBus, providing dedicated interface libraries for bothbuses;
-Multiple sets of free host software to meet the practical needs of differentusers, with seamless integration with LabVIEW;
-Supports USB-SDI12, USB-EasyScale and USB-UART bus conversion, as well asfunctions such as counter, PWM output, ADC sampling and GPIO input/outputcontrol;
-A single PC can connect to multiple USB-I2C adapters for simultaneous operation(supporting up to 100);
-Supports USB-RS485, outputting RS485 bus control signals (DE), with a maximumbaud rate of 2.25 Mbps;
-Users can update and upgrade the software free of charge; the same hardware canbe made to perform different functions via software updates (e.g. updating aUSB-I2C adapter to a USB-SPI or USB-CAN adapter);
-Low-level interface functions are fully open for secondary development, withdetailed function documentation and application examples provided for variousprogramming languages and platforms (LabVIEW, C#, VC, Qt, Python,LabWindows/CVI, C++ Builder, VB, VB.NET, Delphi, CodeBlocks, GCC, Eclipse,Android Studio…);
Performance:
-USB bus-powered, USB 2.0 communication interface;
-2-channel hardware I2C (standard mode), 8-channel software I2C (GPIO mode);hardware I2C data rate: 1.2 Mbps; software I2C data rate: 400 Kbps; bus speedfreely adjustable;
-8-channel ADC (12-bit) for measuring analogue voltage signals (0～3.3 V), with amaximum sampling rate of 1 MHz;
-16 GPIO pins, configurable as input or output pins; all pins are TTL-levelcompatible;
-4 pulse counter input channels, capable of counting both rising and fallingedges;
-2 UARTs, capable of outputting RS485 bus control signals (DE), with a maximumbaud rate of 2.25 Mbps;
-8 PWM signal outputs, with adjustable duty cycle (0%～100%) andadjustable output frequency (1 Hz～20 MHz);
-16 EasyScale bus signal outputs, with adjustable bus timing;
-2 SDI12 bus outputs (requires an external transceiver), with dedicated commandtransmission and reception functions specifically for SDI12;
-Safe voltage: 0～5 V;
-Size:103 mm × 53 mm × 28 mm; Weight: ≈200g
-Operating temperature range:-40 °C～85 °C;
