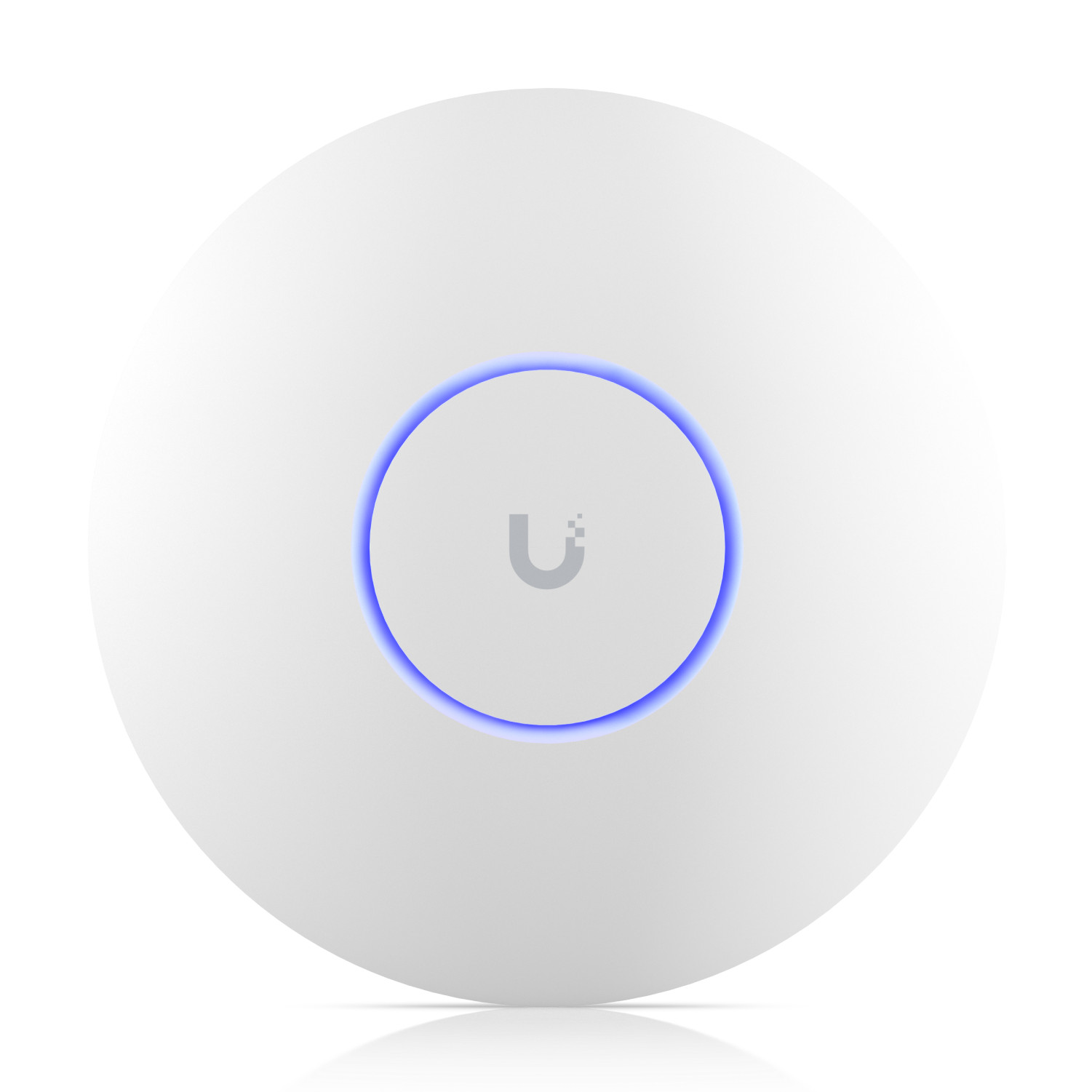

Ubiquiti UniFi6 Enterprise Wi-Fi 6E Tri-Band Access Point
UPC: 810010077677
MPN: U6-Enterprise
Brand: Ubiquiti
Type: Access Point
Model: U6-Enterprise
Number of LAN Ports: 1
Color: White
Maximum Wireless Data Rate: 10.2 Gbps
Maximum LAN Data Rate: 2500 Mbps
Unit Quantity: 1
Unit Type: Unit
Alternative Models & Cross-Brand Equivalents
For buyers cross-referencing specific PC builds or motherboard QVL lists, this item shares identical core specifications with, or is a direct physical variant of, the following manufacturer part numbers:
- U6-Enterprise
- U6-Enterprise-IW
- U7-Pro
- U6-Pro
- U6-LR
- U6-Mesh
- TP-Link EAP690E HD
- Netgear WAX630E
- Aruba AP-635
- Cisco C9136I-B
- Linksys WNE7200
Deployment & Controller Requirements
The U6-Enterprise is a high-density access point managed via the UniFi Network Application (Version 6.5.55 or later). It can be centrally managed through a UniFi Cloud Gateway or a dedicated UniFi Network Server, allowing for seamless scalability and remote site management without per-device licensing fees.
- Management: Fully integrated into the UniFi ecosystem for centralized control and analytics.
- Scalability: Specifically optimized for high-density client environments like stadiums and large offices.
Power & Interface Specifications
Equipped with a high-speed 2.5 GbE RJ45 uplink, this access point eliminates backhaul bottlenecks to deliver true multi-gigabit wireless performance. It requires a PoE+ (802.3at) power source to operate at full capacity, making it ideal for modern enterprise switching infrastructures.
- Uplink: (1) 2.5 GbE port for high-speed backhaul connectivity to multi-gig switches.
- Power: Powered via 802.3at PoE+ with a 22W maximum power consumption.
- Mounting: Includes a professional mounting kit compatible with UAP-AC-Pro and U6-LR patterns.
Wireless Capabilities & RF Performance
Leveraging the newly available 6 GHz band, the UniFi6 Enterprise provides interference-free wireless networking with a massive 10.2 Gbps aggregate throughput. With 10 spatial streams and 4x4 MU-MIMO on the 5 GHz and 6 GHz bands, it ensures reliable performance for over 600 concurrent clients.
- Tri-Band: Simultaneous 2.4 GHz, 5 GHz, and 6 GHz frequency support for maximum device compatibility.
- Throughput: 4.8 Gbps on 6 GHz, 4.8 Gbps on 5 GHz, and 573.5 Mbps on 2.4 GHz.
- Security: Advanced WPA3-Enterprise and WPA3-PSK support for robust network encryption.
