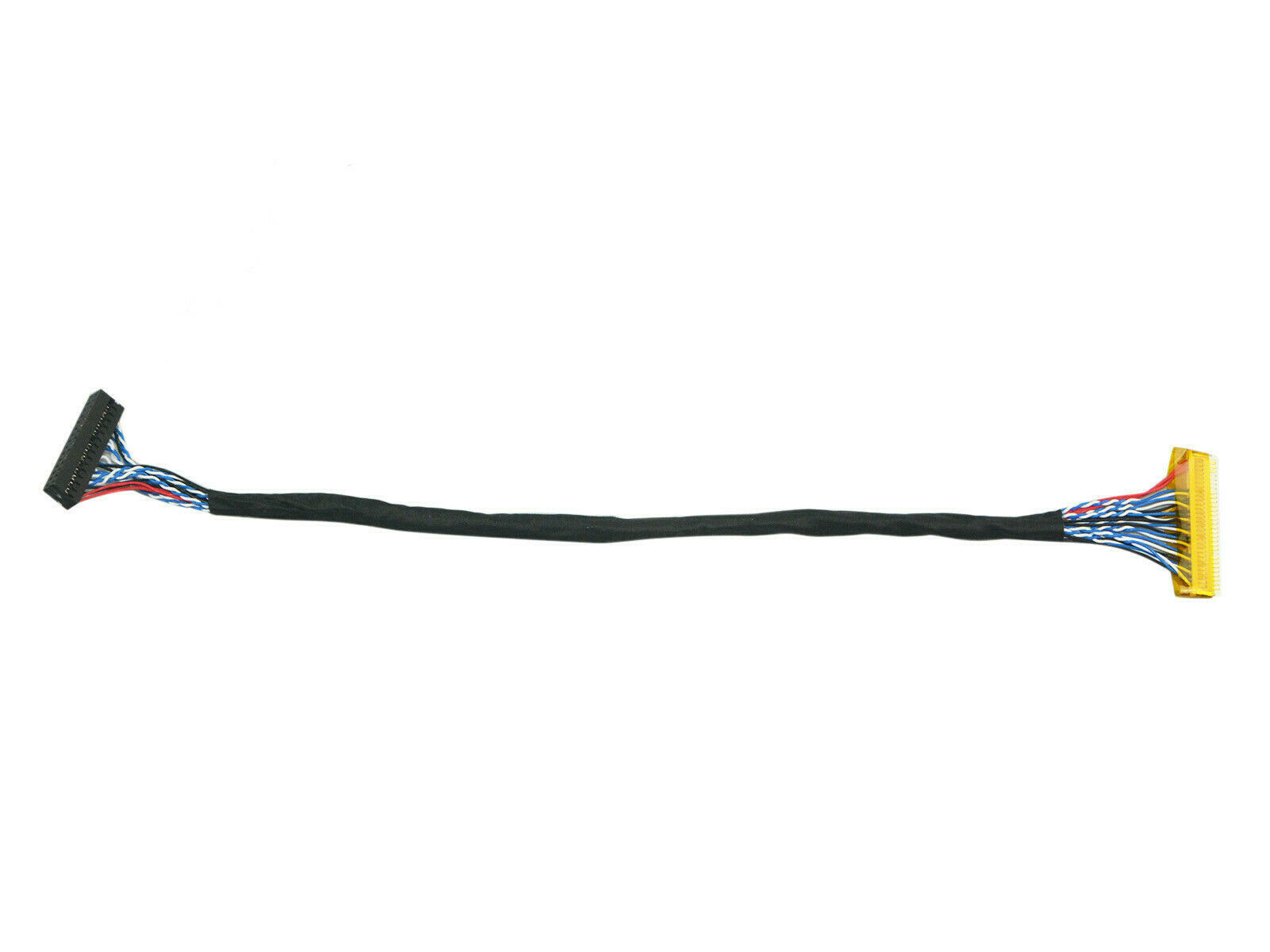

Features:Length: about 26cm
Pins: 30 pin to 30 pin
Wiring: 8 pairs of blue&white cables (for signaling connection);
Black wires stand for “Ground” and red wires stand for "Power"
Application:
Suitable for LCD display with 2ch LVDS interface (RGB 6-bits data, 8 pairs of differential signal; Type Part Number: JAE FI-XB30SR-HF11-NPB);
Compatible with our LCD controller;
Good for12.1",14.1",15",15.4",17",17.1"LCD panels with resolutions 1440*900, 1400*1050, 1600*1200, 1680*1050, 1920*1200;
Useful for maintenance/repair shops.
30pin connector pin sequence (the connector to LCD LVDS interface):
PIN #
SIGNAL NAME
DESCRIPTION
1
GND
Ground
2
VCC
Power Supply
3
VCC
Power Supply
4
VEDID
DDC Power
5
NC
No Connection
6
CLKEDID
DDC Clock
7
DATAEDID
DDC data
8
Odd_RxIN0-
-LVDS differential data input
9
Odd_RxIN0+
+LVDS differential data input
10
GND
Ground
11
Odd_RxIN1-
-LVDS differential data input
12
Odd_RxIN1+
+LVDS differential data input
13
GND
Ground
14
Odd_RxIN2-
-LVDS differential data input
15
Odd_RxIN2+
+LVDS differential data input
16
GND
Ground
17
Odd_RxCLKIN-
-LVDS differential clock input
18
Odd_RxCLKIN+
+LVDS differential clock input
19
GND
Ground
20
Even_RxIN0-
-LVDS differential data input
21
Even_RxIN0+
+LVDS differential data input
22
GND
Ground
23
Even_RxIN1-
-LVDS differential data input
24
Even_RxIN1+
+LVDS differential data input
25
GND
Ground
26
Even_RxIN2-
-LVDS differential data input
27
Even_RxIN2+
+LVDS differential data input
28
GND
Ground
29
Even_RxCLKIN-
-LVDS differential clock input
30
Even_RxCLKIN+
+LVDS differential clock input
(2x15pin/2.0) the black connector pin sequence:
Pin Sequence
Definition
Description
1
LCD-VDD
Power for Panel
2
LCD-VDD
Power for Panel
3
LCD-VDD
Power for Panel
4
GND
Ground
5
GND
Ground
6
GND
Ground
7
RXO0-
LVDS ODD 0 - Signal
8
RXO0+
LVDS ODD 0 + Signal
9
RXO1-
LVDS ODD 1 - Signal
10
RXO1+
LVDS ODD 1 + Signal
11
RXO2-
LVDS ODD 2 - Signal
12
RXO2+
LVDS ODD 2 + Signal
13
GND
Ground
14
GND
Ground
15
RXOC-
LVDS ODD Clock - Signal
16
RXOC+
LVDS ODD Clock + Signal
17
RXO3-
LVDS ODD 3 - Signal
18
RXO3+
LVDS ODD 3 + Signal
19
RXE0-
LVDS EVEN 0 - Signal
20
RXE0+
LVDS EVEN 0 + Signal
21
RXE1-
LVDS EVEN 1 - Signal
22
RXE1+
LVDS EVEN 1 + Signal
23
RXE2-
LVDS EVEN 2 - Signal
24
RXE2+
LVDS EVEN 2 + Signal
25
GND
Ground
26
GND
Ground
27
RXEC-
LVDS EVEN Clock - Signal
28
RXEC+
LVDS EVEN Clock + Signal
29
RXE3-
LVDS EVEN 3 - Signal
30
RXE3+
LVDS EVEN 3 + Signal
Suitable for below LCDs (not all listed, just for example)
B150PG03_V0
LP141WP1
LP171WP4(TL)(B4)
LQ170M1LA2A
LTN154P3-L01
B150PN01
LP150E02(A2)(P1)
LP171WP4(TL)(B5)
LQ170M1LA3C
LTN154U1-L01
B154PW01
LP150E06
LP171WP4(TL)(N2)
LQ170M1LA4B
LTN154U1-L02
B154SW01
LP150E06 (A3)(K2)
LP171WP4(TL)(R2)
LQ170M1LA4G
LTN154U2-L04
B170PW01
LP150E07
LP171WP4-TLN1
LTD121KM2M
LTN154U2-L06
B170PW02
Package included:1Pc*26cm FIX/30P S6 Cable
