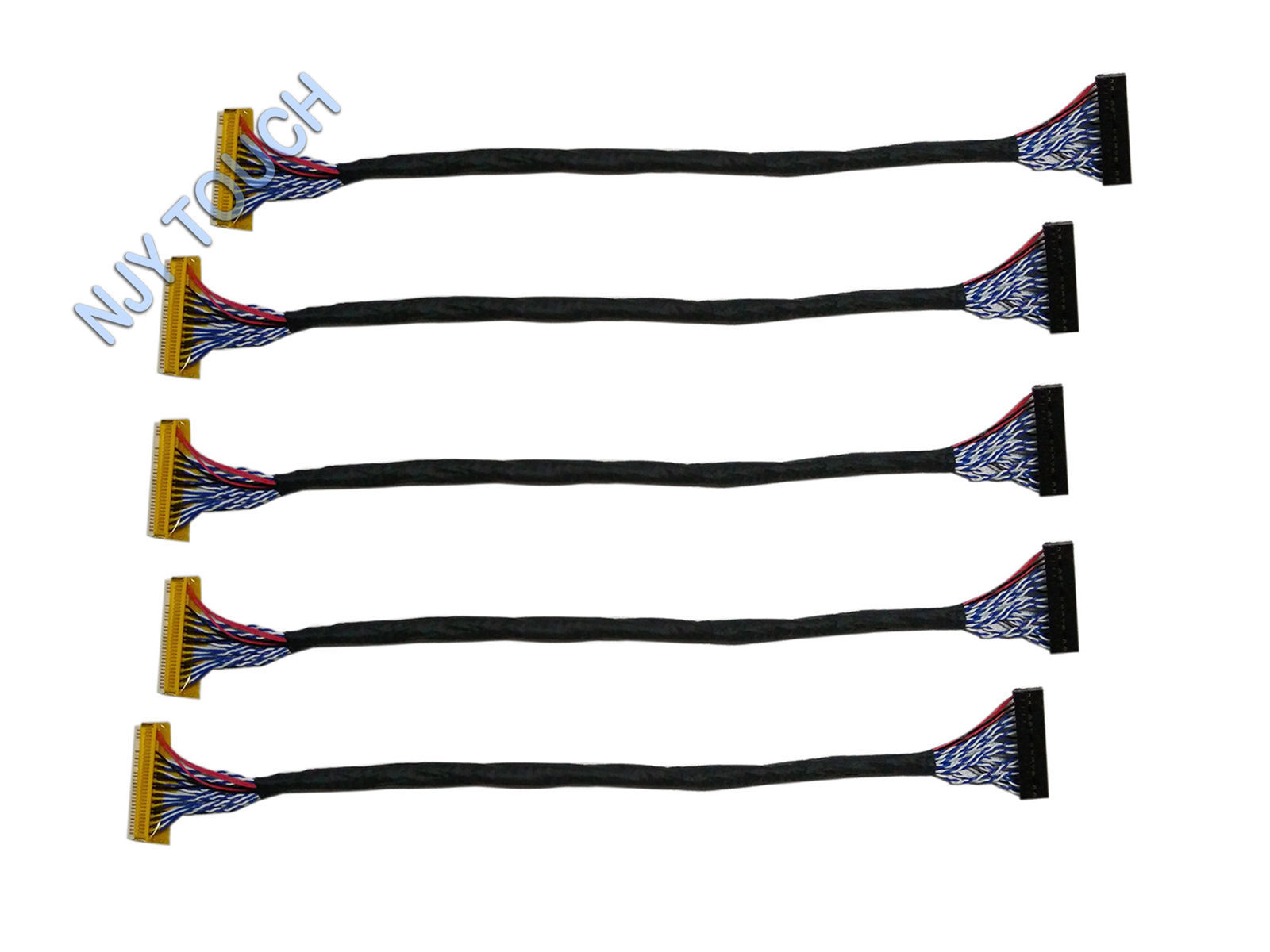

Universal FIX-30Pin 2ch 8bit 0.5mm LVDS Cable for 17inch~21inch LCD Screen Panel
Length: about26cm
Pins: 30 pin to 30 pin
Wiring: 10 pairs of blue&white cables (for signaling connection);
Black wires stand for “Ground” and red wires stand for “Power”
Application:
Suitable for LCD display with 2ch LVDS interface (RGB 8-bits data, 10 pairs of differential signal; Type Part Number: JAE FI-XB30SSL-HF15);
Compatible with our LCD controller; Good for17”and19”1280x1024 LCD panels;
Useful for maintenance/repair shops.
(2x15pin/2.0) the black connector pin sequence:
Pin Sequence
Definition
Description
1
LCD-VDD
Power for Panel
2
LCD-VDD
Power for Panel
3
LCD-VDD
Power for Panel
4
GND
Ground
5
GND
Ground
6
GND
Ground
7
RXO0-
LVDS ODD 0 - Signal
8
RXO0+
LVDS ODD 0 + Signal
9
RXO1-
LVDS ODD 1 - Signal
10
RXO1+
LVDS ODD 1 + Signal
11
RXO2-
LVDS ODD 2 - Signal
12
RXO2+
LVDS ODD 2 + Signal
13
GND
Ground
14
GND
Ground
15
RXOC-
LVDS ODD Clock - Signal
16
RXOC+
LVDS ODD Clock + Signal
17
RXO3-
LVDS ODD 3 - Signal
18
RXO3+
LVDS ODD 3 + Signal
19
RXE0-
LVDS EVEN 0 - Signal
20
RXE0+
LVDS EVEN 0 + Signal
21
RXE1-
LVDS EVEN 1 - Signal
22
RXE1+
LVDS EVEN 1 + Signal
23
RXE2-
LVDS EVEN 2 - Signal
24
RXE2+
LVDS EVEN 2 + Signal
25
GND
Ground
26
GND
Ground
27
RXEC-
LVDS EVEN Clock - Signal
28
RXEC+
LVDS EVEN Clock + Signal
29
RXE3-
LVDS EVEN 3 - Signal
30
RXE3+
LVDS EVEN 3 + Signal
30pin connector pin sequence (the connector to LCD LVDS interface):
PIN #
SIGNAL NAME
DESCRIPTION
1
RxOIN0-
Negative LVDS differential data input (Odd data)
2
RxOIN0+
Positive LVDS differential data input (Odd data)
3
RxOIN1-
Negative LVDS differential data input (Odd data)
4
RxOIN1+
Positive LVDS differential data input (Odd data)
5
RxOIN2-
Negative LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
6
RxOIN2+
Positive LVDS differential data input (Odd data, H-Sync,V-Sync,DSPTMG)
7
GND
Ground
8
RxOCLKIN-
Negative LVDS differential clock input (Odd clock)
9
RxOCLKIN+
Positive LVDS differential clock input (Odd clock)
10
RxOIN3-
Negative LVDS differential data input (Odd data)
11
RxOIN3+
Positive LVDS differential data input (Odd data)
12
RxEIN0-
Negative LVDS differential data input (Even data)
13
RxEIN0+
Positive LVDS differential data input (Even data)
14
GND
Ground
15
RxEIN1-
Negative LVDS differential data input (Even data)
16
RxEIN1+
Positive LVDS differential data input (Even data)
17
GND
Ground
18
RxEIN2-
Negative LVDS differential data input (Even data)
19
RxEIN2+
Positive LVDS differential data input (Even data)
20
RxECLKIN-
Negative LVDS differential clock input (Even clock)
21
RxECLKIN+
Positive LVDS differential clock input (Even clock)
22
RxEIN3-
Negative LVDS differential data input (Even data)
23
RxEIN3+
Positive LVDS differential data input (Even data)
24
GND
Ground
25
GND
Ground
26
NC
No Connection
27
GND
Ground
28
VCC
Power Supply
29
VCC
Power Supply
30
VCC
Power Supply
Suitable for below LCDs (not all listed, just for example)
CLAA170EA07Q
LTM190E4-L02
M190MWW1
HSD170ME13
LTM190EP01
M190PW01 V0
HSD170MGW1-B00
LTM190M2-L31
M201EW02 VC
HSD190ME12
M170E5-L09
M201UN02-2SD2
HT17E12-210
M170EG01
M220EW01
LM170E01
M170EG01 VA
M240UW01V1
LM170E01(A)
M170EN04
MT170EN01
LM170E03-TLG1
M190A1
MT170EN01-V1
LM190E03(B4)(N9)
M190A1-L01
MT190AW01
LM190E03(TL)(B1)
M190A1-P02
MT190EN02
LM201W01(A6)(K1)
M190EG01
QD17EL07
LP201WE1(SL)(01)
M190EG02
SVA170SX01
LTM170EH-L01
M190EN03
TD170WGCA1
LTM170EU-L01
M190EN04
TD170WGCB3
