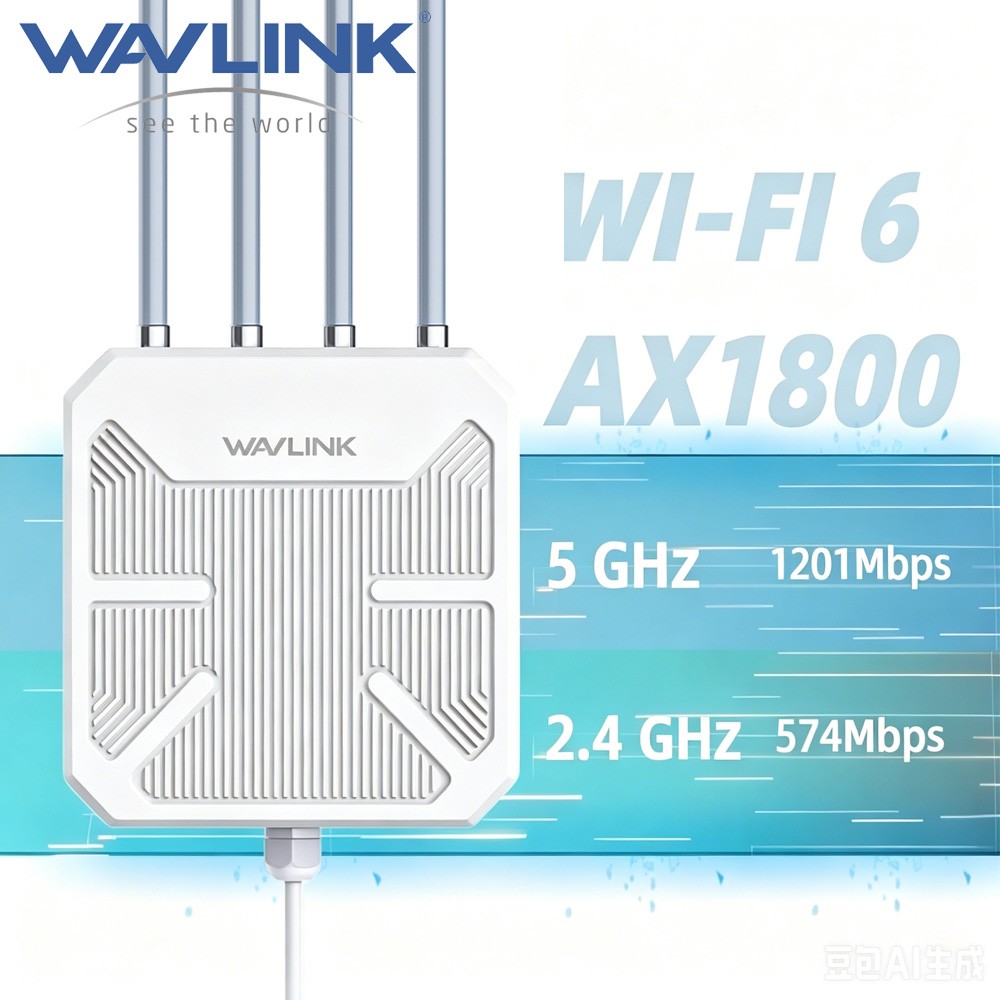

Using a high power amplifier and 4x 8dBi omni-directional antennas with dual 2.4GHz and 5GHz bands, the wifi extender extensively enhances the Wi-Fi signal and extends the outdoor signal coverage to ensure you have good access to the internet even when you are outdoors. Enjoy Blazing-Fast WiFi 6 Speed AX1800 Dual Band--2.4G+5G
AX1800 provides smoother online surfing experience and stronger anti-interference capability. 574Mbps on 2.4GHz is commendable for web browsing and social media use, while 1201Mbaps on 5GHz is ideal for video streaming or gaming. Dual integrated signal boosters support 128 devices' connections.
Upgraded Fiberglass Tube Antennas
Four 8dBi omni-directional antennas are covered by strong fiberglass tube, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance (coverage up to 300 meter radius on a barrier-free environment) and longer service life.
Passive/Active POE Compatible-Flexible Arrangement Compatible with Passive POE
The WAVLINK passive PoE (DC 54V/0.3A) is included in the package.
NOTE: This PoE is not waterproof, please install indoors. If replacing with a longer cable, please ensure that your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
Compatible with Active POE
This WIFI range extender is also compatible with 802.3 af/at active PoE (DC 48V) from other brands. You can use your own POE switch for easy management.
NOTE: Active POE is not included. it is recommended to use DC 48V active PoE only.
Multi-mode Support for Various Outdoor Scenarios Outdoor WiFi Range Extender / Access Point
One pack for use as a regular outdoor Access Point/wifi range extender for everyday WiFi needs in small to medium-sized outdoor areas such as home patios, outdoor swimming pool or outdoor coffee bar.
Outdoor Mesh WiFi for Seamless Roaming
Multiple sets used for seamless outdoor roaming, suitable for large outdoor areas such as business districts, industrial parks, farms, schools, large hotels, stadiums, parks, etc.
Please note: mesh WiFi refers to the common use of multiple 573HX1, it is not recommended to mix other models.
Features:
【⭐Designed for Harsh Outdoor Conditions】Equipped with IP67 waterproof enclosure, 15kV ESD protection and 6kV lightning protection, it can work normally in rain/snow/wind/thunder and other bad weather. The fiberglass tube high-gain antennas can not only withstand strong wind and corrosion, but also boost the WiFi coverage, making it more suitable for outdoor use.
【⭐Enjoy True WiFi 6 Speed】The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz 867Mbps and 2.4GHz 300Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN573HX1, you can enjoy HD videos, smooth gaming, etc. even outdoors.
【⭐Optional PoE Power Supply】Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable, so you can install the product outdoors where power outlet is not available. Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the length should not exceed 100m/328ft.
【⭐Seamless WiFi Roaming】The 4x8dBi omnidirectional antennas and two built-in high-power amplifiers provide extreme WiFi coverage and penetration. Also supports Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
【⭐Multiple Modes, Flexible Use】Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor connection scenarios. Router/AP Mode is ideal for converting wired connections into wireless networks, while under Mesh Mode you can enjoy seamless WiFi with a single network name and password.
WAVLINK Professional Outdoor Router/AP/Repeater, Enjoy Super-Speed WiFi6 Anytime & Anywhere
WN573HX1 is a high-performance outdoor router/AP/repeater specially designed for outdoor use: Robust weatherproof case and 15kV ESD protection ensure continuous operation and stable connection under harsh outdoor conditions; The 4 x 8dBi omnidirectional fiberglass tube antennas feature high strength and high precision, a long service life and excellent wireless performance; Supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet speeds of 1800Mbps (2.4GHz 574Mbps+5GHz 1201Mbps); Supports MU-MIMO and Beamforming technology, allowing up to 128 devices to be connected simultaneously in a wider range.
Fiberglass Tube High Gain Antennas
4 x 8dBi omnidirectional antennas are covered by strong fiberglass tube, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance and longer service life.
IP67 Waterproof Enclosure
Equipped with an IP67 enclosure with excellent dustproof and waterproof capabilities, this product can operate normally in rainy days, snowy days, thunderstorms, sandstorms and other severe weather.
PoE Power Supply
Both active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.
574Mbps on 2.4G & 1201Mbps on 5G
Dual band AX1800 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and social media use, while 5G band is ideal for video streaming or gaming.
High Power Amplifiers
Dual integrated signal boosters efficiently strengthen the wireless performance. The PA(power amplifier) increases the power output while the LNA(low-noise amplifier) minimizes additional noises and increases the wireless signal.
Advanced WiFi Safeguard
WPA2-PSK & WPA2/WPA3-MIX wireless security protocols are supported, fully protecting your private information and keeping your WiFi connection secure at all times.
Specification
- Model: WL-WN573HX1
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(574Mbps)+5GHz(1201Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HX1 ONLY supports interconnection with WN531AX2, WN583AX1 and WN573HX1.
In the Box
1 x Wi-Fi6 Outdoor Mesh Router/AP/Repeater
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE:
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
