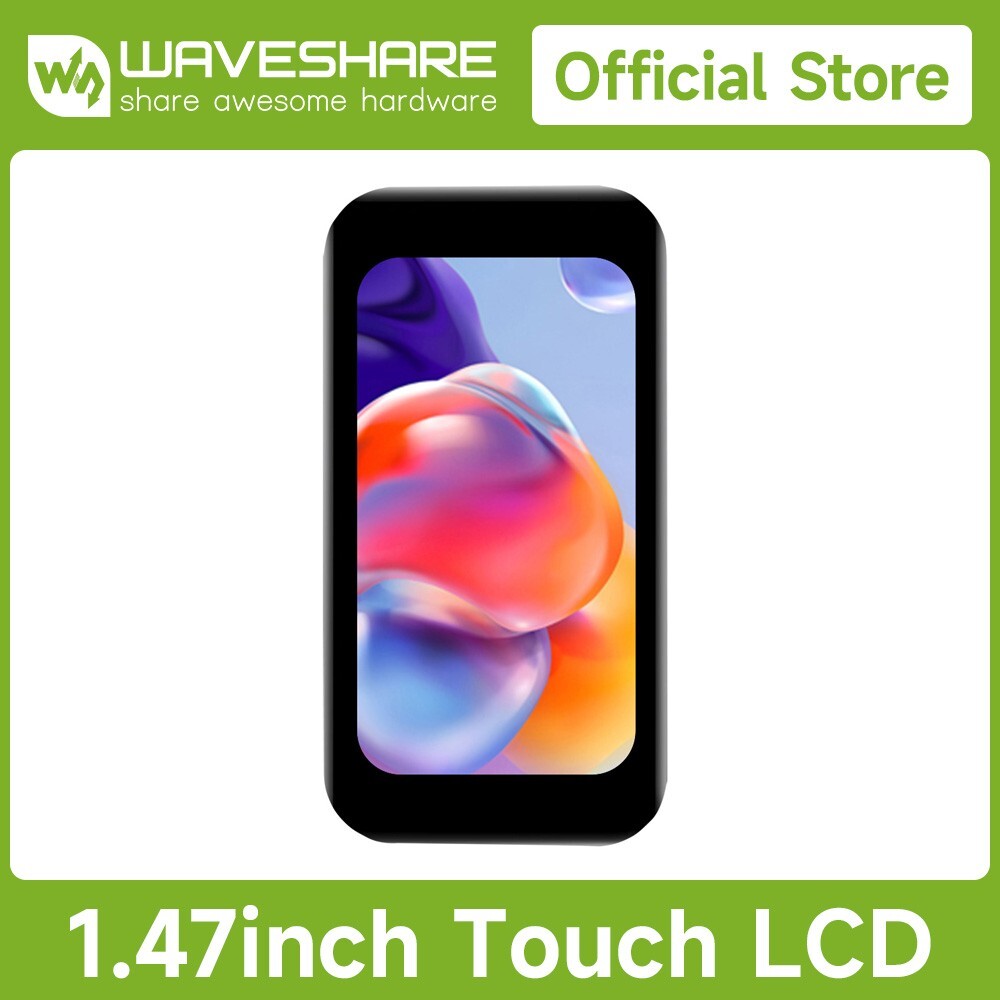

1.47inch LCD Display Module With Touch panel, Micro LCD Display, 172×320 Resolution, IPS, SPI And I2C Communication, 262K Display Color1.47inchTouch LCD Display Module

Embedded JD9853 driver and AXS5106L capacitive touch control chip

Comes with examples for Raspberry Pi, ESP32S3, Pico, Arduino, etc.

• Size1.47"
• Display Color262K
• Display PanelIPS


• Display DriverJD9853
• Display InterfaceSPI
• Touch DriverAXS5106L
• Touch InterfaceI2C

Features at a glance

• 172×320 resolution, 262K colors, clear and colorful displaying effect
• High touch screen transmittance, fast response and long lifetime
• Embedded JD9853 driver chip and AXS5106L capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins, supports controller boards like Raspberry Pi / ESP32S3 / Raspberry Pi Pico / Arduino
• Comes with online development resources and manual (examples for Raspberry Pi / ESP32S3 / Raspberry Pi Pico / Arduino)

SpecificationsOperating voltage3.3V / 5VResolution172 × 320 pixelsDisplay DriverJD9853Touch DriverAXS5106LDisplay Interface4-wire SPITouch InterfaceI2CDISPLAY PANELIPSTouch TypeCapacitiveDisplay size17.75 × 32.93mmModule size22.05 × 41.69mm
Onboard Voltage Translator

Compatible With 3.3V / 5V Power Input

SPI and I2C Control Interfaces

Embedded JD9853 driver and AXS5106L capacitive touch control chip

VCCPower (3.3V / 5V input)GNDGroundMISOSPI MOSI pinMOSISPI MOSI pinSCLKSPI Clock pinLCD_CSLCD Chip Selection, low activeLCD_DCLCD Data/Command selection (high for data, low for command)LCD_RSTLCD Reset, low activeLCD_BLLCD BacklightTP_SDATP Data pinTP_SCLTP Clock pinTP_INTTP Interrupt pinTP_RSTTP Reset, low active
Usage Example

Connecting with Raspberry Pi 5

Connecting with ESP32-S3

* for reference only, the Raspberry Pi 5 and ESP32-S3 board are NOT included.

Outline dimensionsResources & ServicesPackage Content

Weight:0.014 kg

1. 1.47inch Touch LCD x1
2. SH1.0 13PIN cable ~100mm x1
3. FFC cable x1
