Waveshare ESP32-S3 1.47inch LCD display Development Board Type B 172×320 262K
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Waveshare ESP32-S3 1.47inch LCD display Development Board Type B 172×320 262K
Price: CN $34.21
Description
ESP32-S3 1.47inch LCD display Development Board Type B, 172×320 Resolution, 262K Display Color, Supports 2.4GHz Wi-Fi / BLE 5, 240MHz LX7 Dual-core Processor, ESP32 With Display ESP32-S3-LCD-1.47B

Onboard TF card slot, 6-Axis IMU, and multiple peripheral interfaces

* for reference only, please refer to the actual display effect


version options

ESP32-S3-LCD-1.47B
Standard version

ESP32-S3-LCD-1.47B-M
With pre-soldered header (black)

Features

ESP32-S3-LCD-1.47Bis a microcontroller development board that supports 2.4GHz Wi-Fi and Bluetooth BLE 5, integrates high-capacity Flash and PSRAM. Onboard 1.47inch IPS display can smoothly run GUI programs such as LVGL. Combined with multiple peripheral interfaces, it is suitable for rapid development of ESP32-S3 HMI applications.

  • Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
  • Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
  • Onboard 1.47inch LCD display, 172×320 resolution, 262K color
  • Adapting multiple IO interfaces, supports full-speed USB standard
  • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures, counting steps, etc
  • Built-in RGB LED with clear acrylic sandwich panel for cool lighting effects
  • Onboard TF card slot for external TF card storage of pictures or files
  • Onboard battery charging management module, supports connecting to Lithium battery for power supply (the battery interface is located at the GPIO header)
  • Supports accurate control such as flexible clock and multiple power modes to realize low power consumption in different scenarios


LCD Specifications DISPLAY SIZE 1.47inch Resolution 172 × 320 pixels Display Driver ST7789 Color 262K Display Interface 3-wire SPI DISPLAY PANEL IPS
suitable for AIoT applications

Powered by a high-performance 32-bit LX7 Dual-core processor, the main frequency is up to 240 MHz, with Powerful AI Computing Capability & Reliable security

Wi-Fi and BLE 5 support

ESP32-S3 integrates 2.4GHz Wi-Fi (802.11 b/g/n) with 40 MHz of bandwidth support, its Bluetooth Low Energy subsystem supports Bluetooth 5 (LE) and Bluetooth Mesh

Application Scenarios

Pin Definition

Supports the expansion of multiple peripherals via GPIO header


What's On Board
  1. ESP32-S3R8
    Dual-core processor, up to 240MHz running frequency
  2. 16MB Flash
  3. RGB LED
    with onboard clear acrylic sandwich panel to achieve cool color changes
  4. ME6217C33M5G
    Low dropout regulator, 800mA output (Max.)
  5. QMI8658
    6-Axis IMU
  1. Charging management circuit
  2. Onboard ceramic antenna
  3. System battery interface
    for connecting 3.7V Lithium battery, supports charging and discharging
  4. TF card slot
  5. RESET button
  6. BOOT button
  7. Type-C interface
    for power supply, USB communication, and firmware downloading

Outline dimensions Resources & Services

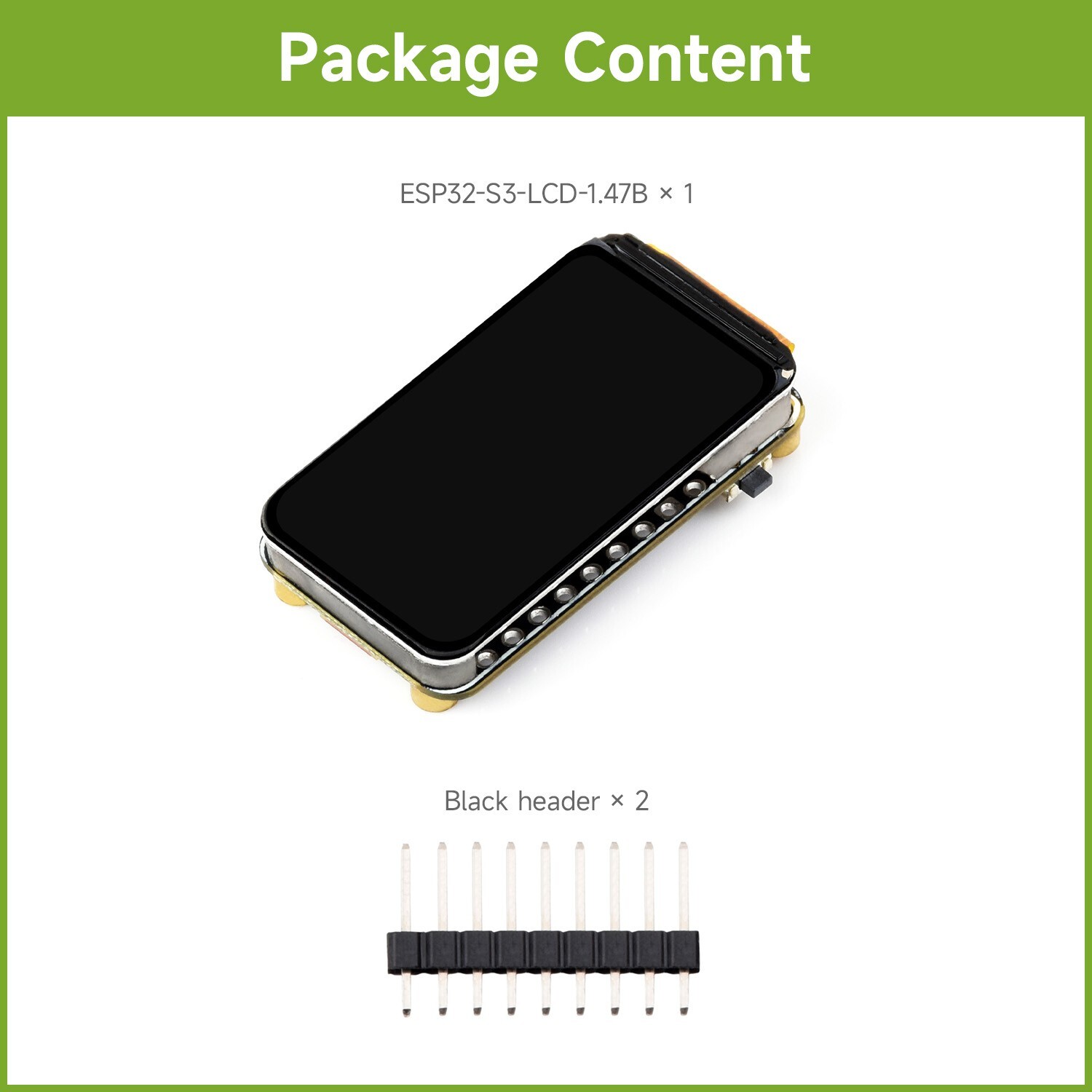

Package Content

Weight:0.008 kg

ESP32-S3-LCD-1.47B
  1. ESP32-S3-LCD-1.47B × 1
  2. Black header × 2
1 2 ESP32-S3-LCD-1.47B-M

ESP32-S3-LCD-1.47B with pre-soldered header × 1



Buy Now
