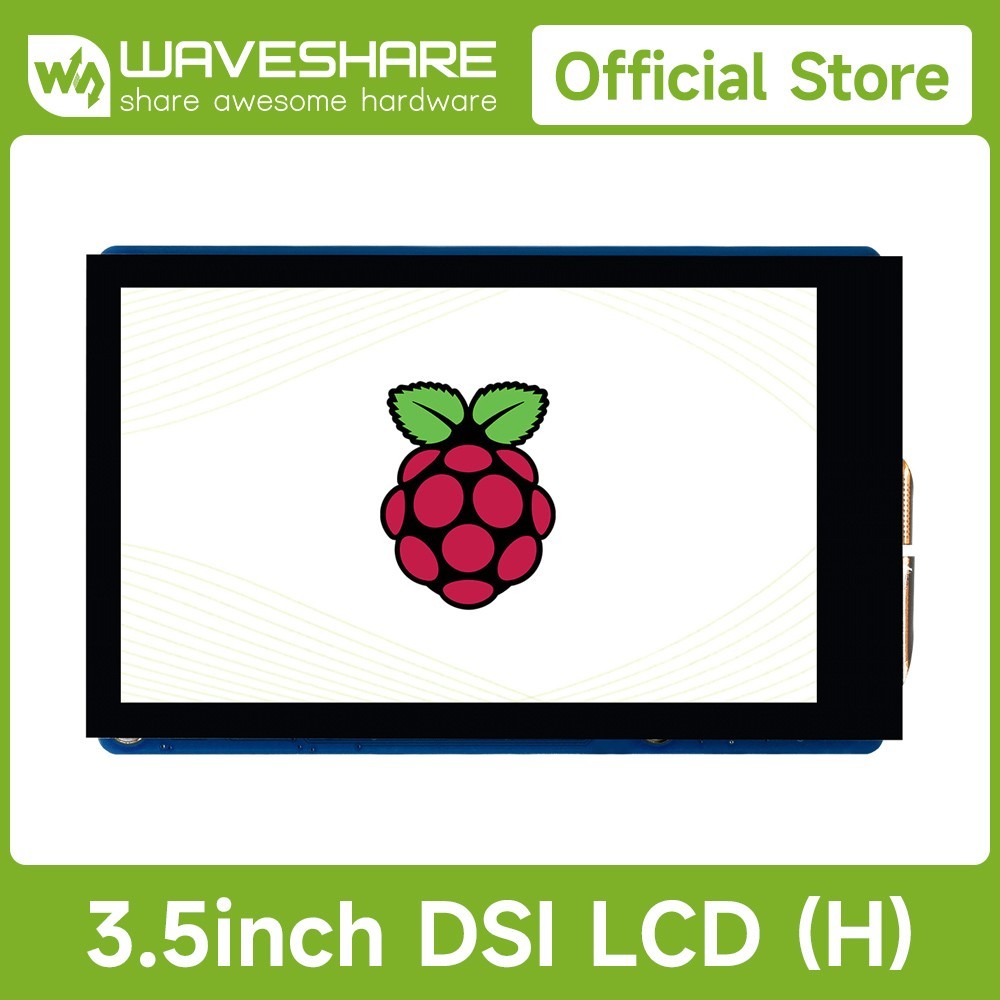

Waveshare 3.5inch DSI Capacitive Touch Display 5-Point 480×800 for Raspberry Pi
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
Waveshare 3.5inch DSI Capacitive Touch Display 5-Point 480×800 for Raspberry Pi
Price: CN $46.09
Description
3.5inch DSI Capacitive Touch Display, 5-Point Touch, 480 × 800 Pixels, IPS display panel, Supports Raspberry Pi Series Boards3.5″ DSI Touch Display
  • Size3.5″
  • Resolution480 × 800
  • Display InterfaceDSI
  • Display PanelIPS
  • Viewing Angle170°
  • Touch TypeCapacitive
  • Touch Points5-Point
  • Touch PortI2C
  • Touch PanelToughened Glass

The display orientation is portrait by default, 480 × 800 resolution (H×V)
Change the software config for landscape display


Device & System Support
Raspberry PiSupports Raspberry Pi OS, 5-point touch
Connection Examples

Working with Raspberry Pi 5



Working with Raspberry Pi 4




Working with Raspberry Pi 3B+



* for reference only, the above boards or hosts are NOT included.


IPS display panel

5-Point Capacitive Touch
  1. up to 5-point touch, depending on the operating system
  2. up to 6H hardness toughened glass panel

Outline DimensionsPackage Content

Weight:0.096 kg

  1. 3.5inch DSI LCD (H) x1
  2. FPC 15PIN 1.0 pitch cable 50mm (opposite sides) x1
  3. DSI-Cable-12cm x1
  4. FPC 15PIN 1.0 pitch cable 160mm (opposite sides) x1
  5. Standoffs x1
12345
