Description

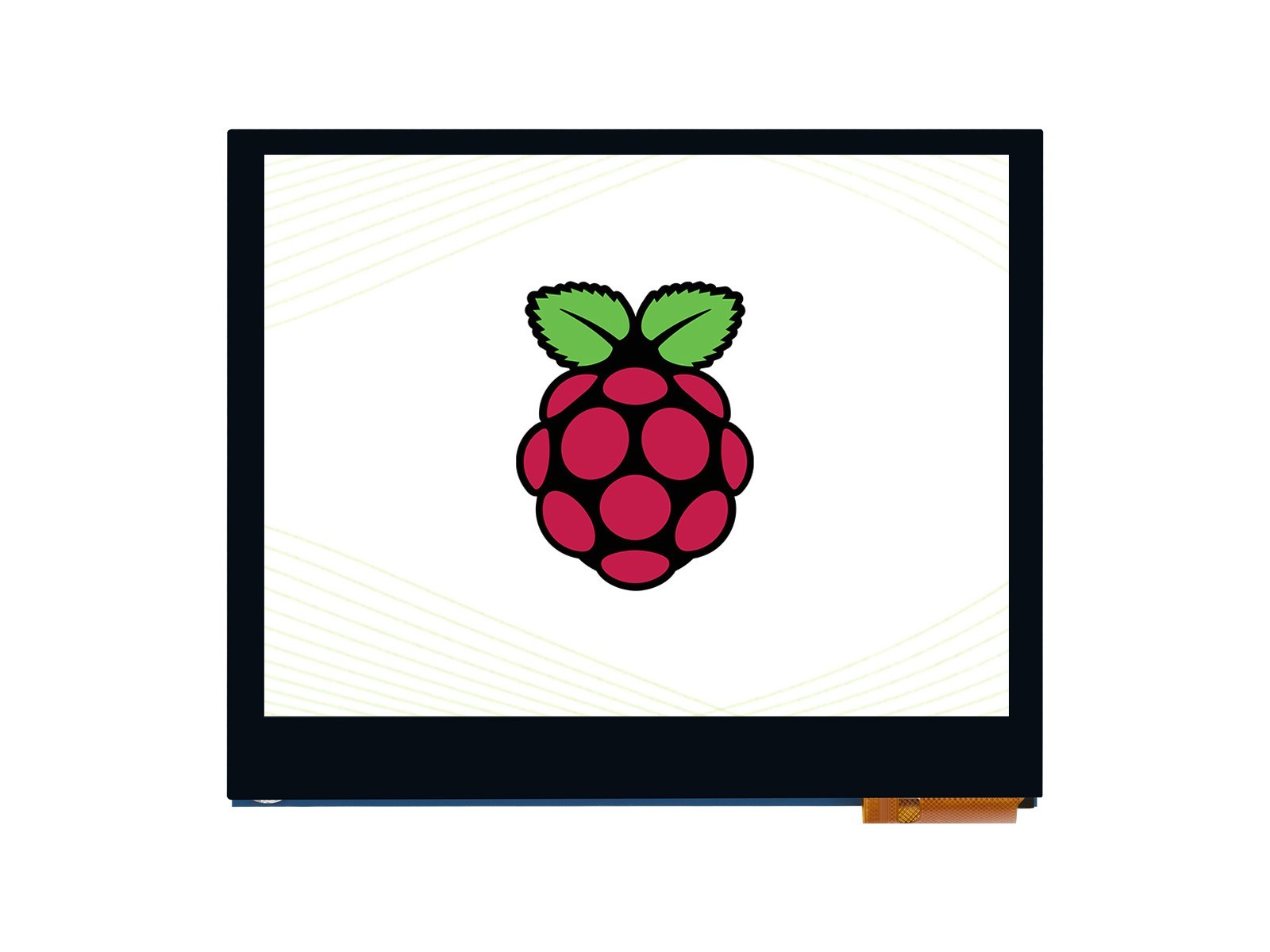

3.5inch DSI Capacitive Touch Display, 5-Point Touch, 640 × 480 Pixels, IPS display panel, Supports Raspberry Pi Series Boards3.5″ DSI Touch Display

• Size3.5″
• Resolution640 × 480
• Display InterfaceDSI
• Display PanelIPS
• Viewing Angle170°
• Touch TypeCapacitive
• Touch Points5-Point
• Touch PortI2C
• Touch PanelToughened Glass

Device & System Support
Raspberry PiSupports Raspberry Pi OS, 5-point touch
Connection Examples

Working with Raspberry Pi 5

Working with Raspberry Pi 4

Working with Raspberry Pi 3B+

* for reference only, the above boards or hosts are NOT included.

IPS display panel

5-Point Capacitive Touch

1. up to 5-point touch, depending on the operating system
2. up to 6H hardness toughened glass panel

Outline Dimensions

Support touch screen customization

Support the following ways to customize the touch screen display in bulk order

Over a decade
Waveshare grows with display

* Waveshare has been focusing on display design for over 10 years.

Package Content

Weight:0.096 kg

1. 3.5inch DSI LCD (E) x1
2. FPC 15PIN 1.0 pitch cable 50mm (opposite sides) x1
3. DSI-Cable-12cm x1
4. FPC 15PIN 1.0 pitch cable 160mm (opposite sides) x1
5. Standoffs x1

12345
