DescriptionESP32-P4-Core High-performance Development Board Based On ESP32-P4, Equipped With RISC-V 32-bit Dual-core And Single-core Processors, Supports USB OTG 2.0 HSESP32-P4-Core development board

High-performance Development Board Based On ESP32-P4

Rich Human-machine Interfaces

Version Options

ESP32-P4-Core-DEV-KIT
without pinheader

ESP32-P4-Core-DEV-KIT-M
with pre-soldered headers

Features

The ESP32-P4-Core-DEV-KIT is a compact multimedia development board based on ESP32-P4. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS for broader application compatibility.

The ESP32-P4 adopts a dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI, MIPI-DSI, H.264 encoder, and other peripherals, making it ideal for low-cost, high-performance, and low-power multimedia development. It also integrates a Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. The ESP32-P4-Core-DEV-KIT is designed for high-performance and high-security applications, meeting the requirements of embedded systems in areas such as human-machine interaction, edge computing, and IO expansion.

Key features:

• High-performance MCU with RISC-V 32-bit dual-core and single-core processors
• 128KB HP ROM, 16KB LP ROM, 768KB HP L2MEM, 32KB LP Static RAM, 8KB TCM
• Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG Codec, Pixel Processing Accelerator, Image Signal Processor, H264 encoder
• 32MB PSRAM in the chip's package, with onboard 32MB NOR Flash
• Commonly used peripherals such as MIPI-CSI, MIPI-DSI, and USB 2.0 OTG, etc.
• Adapting 2*20 GPIO headers, and with multiple GPIO pads on the back
• Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation

Highly integrated and powerful performance

Adopts ESP32-P4-Core Module, built-in 32MB NOR Flash

What's On Board

1. ESP32-P4-Core
   built-in ESP32-P4 and 32MB NOR Flash
2. Camera interface
   MIPI-2lane
3. Display interface
   MIPI-2lane
4. WS2812B
   cool RGB LED
5. MX1.25 4PIN header
   USB OTG 2.0 High Speed header

6. Reset button
7. BOOT button
   Press it when powering on or resetting to enter download mode
8. Type-C port
   for power supply and programming
9. Type-C UART port
   for power supply, programming and debugging
10. Power indicator

Pinout definitionApplication example

* for reference only, please refer to the package content for the detailed part list.

Outline DimensionsResources & ServicesPackage Content

Weight: 0.013 kg

ESP32-P4-Core-DEV-KIT

1. ESP32-P4-Core-DEV-KIT x1
2. 20PIN header (black) x2

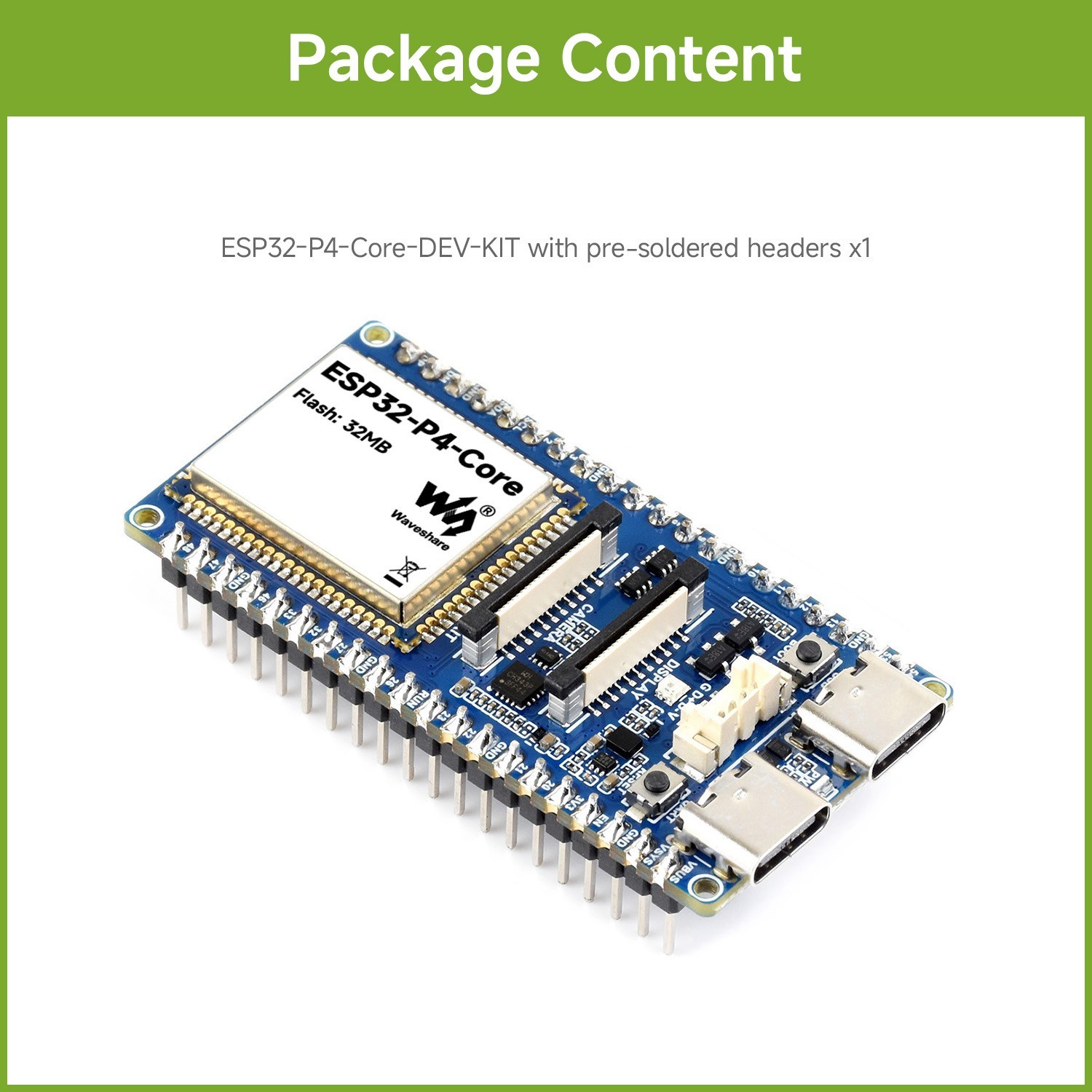

12ESP32-P4-Core-DEV-KIT-M

ESP32-P4-Core-DEV-KIT with pre-soldered headers x1
