DescriptionESP32-P4-ETH High-Performance Development Board, Based On ESP32-P4, With 100 Mbps RJ45 Ethernet PortESP32-P4-ETH Development Board

High-performance Development Board Based On ESP32-P4

Rich Human-machine Interfaces

Development Board Introduction

This product is a multimedia development board based on ESP32-P4. It features rich Human-Machine interfaces, including MIPI-CSI (with integrated Image Signal Processor), MIPI-DSI, SPI, I2S, I2C, LED PWM, MCPWM, RMT, ADC, UART, TWAI, etc. Additionally, it supports USB OTG 2.0 HS, Ethernet port and onboard 40PIN GPIO header which is compatible with some Raspberry Pi Pico HATs, enabling a wider range of application adaptability.
The ESP32-P4 adopts a dual-core RISC-V processor and supports up to 32MB PSRAM, featuring USB 2.0, MIPI-CSI / DSI, H.264 encoder, and other peripherals, meeting the needs for low-cost, high-performance, and low-power multimedia development. It also integrates a Digital Signature Peripheral and a dedicated Key Management Unit, ensuring secure data and operations. Specifically designed for high-performance and high-security applications, the ESP32-P4-ETH meets the requirements of Human-Machine interaction, efficient edge computing, and IO expansion.

Key features include:

• High-performance MCU with RISC-V 32-bit dual-core and single-core processors
• 128 KB HP ROM, 16 KB LP ROM, 768 KB HP L2MEM, 32 KB LP SRAM, 8 KB TCM
• Powerful image and voice processing capability. Provides image and voice processing interfaces including JPEG codecs, Pixel Processing Accelerator (PPA), Image Signal Processor (ISP) and H.264 video encoder
• 32MB PSRAM in the chip's package, onboard 32MB Nor Flash
• Commonly used peripherals such as MIPI-CSI, MIPI-DSI, USB 2.0 OTG, Ethernet, SDIO 3.0 TF card slot, microphone, speaker header, etc.
• Adapting 2*20 GPIO headers with 27 x remaining programmable GPIOs
• Security features: Secure Boot, Flash Encryption, cryptographic accelerators, and TRNG. Additionally, hardware access protection mechanisms help to enable Access Permission Management and Privilege Separation

Kit SelectionKit Connection ExamplesDSI Capacitive Touchscreen

Optional For DSI Capacitive Touch Display, IPS Screen,
Optical Bonding Toughened Glass Panel, With 178° Wide Viewing Angle.
Supports 10-Point Touch, provides clear image and excellent visual × 1280 (H × V)Communication InterfaceMIPI-DSI (2-lane)Brightness400cd/m² (supports customization for 1000cd/m² high brightness version)Touch ChipGT9271Outline Dimension147.0 × 239.0 (mm)Display area135.36 × 216.58 (mm)Pixel pitch0.1692 (H) × 0.1692 (V) (mm)Contrast ratio800:1Operation temperature0℃~60℃

* the DSI LCD is only included in the ESP32-P4-POE-ETH-KIT-B

Raspberry Pi Camera (B)

5MP | Manual Focus

Compatible with Raspberry Pi series boards

SensorOV5647CMOS size1/4 inchPIXELS5MPApertureF2.0Focal length6mmField of view60.6°Night Vision functionNot supportFOCUSINGManual Focus

* for reference only, please refer to the package content for detailed part list.

Highly integrated and powerful performance

Adopts ESP32-P4 Module, onboard 32MB Nor Flash

Two power supply methods

Supports both PoE* and USB Type-C power supply

* the PoE module is required.

optional for PoE Module, Supports PoE Power Supply

Provides Both Network Connection And Power Supply In Only One Ethernet Cable

* the PoE module is optional, and the switch in the picture above is NOT included.

Supports AI Speech Interaction

Allows access to online large model platforms such as DeepSeek, Doubao, etc.

* (the speaker is only included in the ESP32-P4-POE-ETH-KIT-A / B)
(the DSl display is only included in the ESP32-P4-POE-ETH-KIT-B)

What's On Board

1. ESP32-P4NRW32
   ESP32-P4 chip, with 32MB PSRAM
2. 100M RJ45 Ethernet port
3. 32MB Nor Flash
4. Display interface
   MIPI-DSI (2-lane), supports5/7/8/10.1inch DSI screens
5. Camera interface
   MIPI-CSI (2-lane), supportsOV5647camera, etc.
6. Type-C port
   for power supply, program burning
7. Onboard microphone

8. Speaker header
   MX1.25 2P connector, supports 8Ω 2W speaker
9. 4PIN USB header
   USB OTG 2.0 High Speed interface
10. PoE module & power supply header
11. BOOT button
    Press it when powering on or resetting to enter download mode
12. RST Reset button
13. Power indicator
14. TF card slot
    SDIO 3.0 interface protocol

Pin definition
outline dimensions
Resources & Services

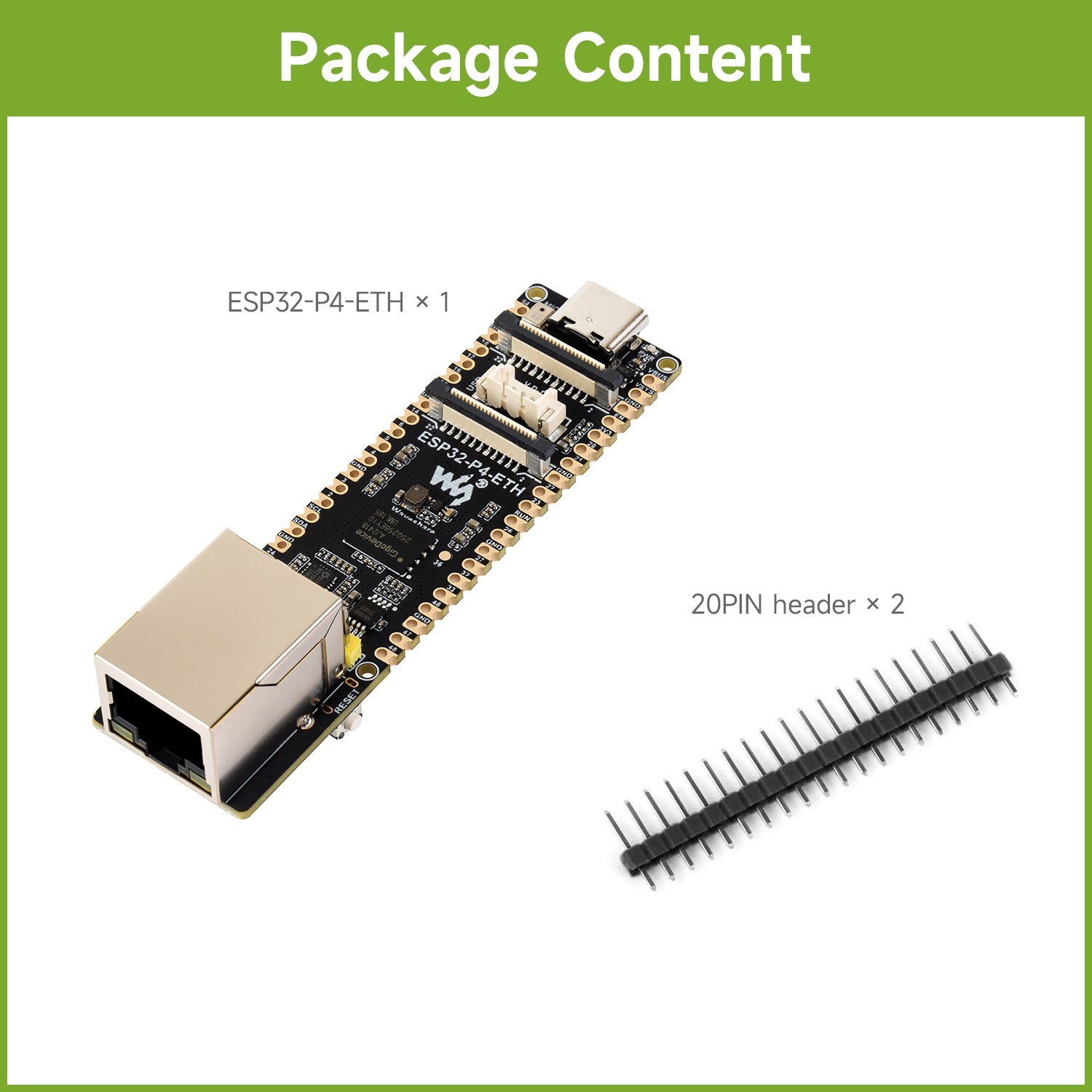

Package Content

Weight:0.07 kg

ESP32-P4-ETH

1. ESP32-P4-ETH x1
2. 20PIN header x2

12ESP32-P4-ETH-M

ESP32-P4-ETH with pre-soldered headers x1

ESP32-P4-POE-ETH-NH

1. ESP32-P4-ETH x1
2. PoE module x1
3. Screws pack x1
4. 20PIN header x2

1234ESP32-P4-POE-ETH

1. ESP32-P4-ETH-M x1
2. PoE module x1
3. Screws pack style="box-sizing: border-box; margin: 0px 0px 1em; padding: 0px 0px 0px 1.5em; list-style-position: outside; list-style-image: initial;">
4. ESP32-P4-ETH x1
5. PoE module x1
6. Screws pack x1
7. 8Ω 2W speaker x1
8. Pi5-Camera-Cable-200mm x1
9. FFC 15PIN cable x1
10. RPi Camera (B) x1
11. MX1.25 4PIN to USB cable x1
12. 20PIN header style="box-sizing: border-box; margin: 0px 0px 1em; padding: 0px 0px 0px 1.5em; list-style-position: outside; list-style-image: initial;">
13. ESP32-P4-ETH-M x1
14. PoE module x1
15. Screws pack x1
16. 8Ω 2W speaker x1
17. Pi5-Camera-Cable-200mm x1
18. FFC 15PIN cable x1
19. RPi Camera (B) x1
20. MX1.25 4PIN to USB cable style="box-sizing: border-box; margin: 0px 0px 1em; padding: 0px 0px 0px 1.5em; list-style-position: outside; list-style-image: initial;">
21. ESP32-P4-ETH x1
22. 10.1-DSI-TOUCH-A x1
23. PoE module x1
24. Screws pack x1
25. 8Ω 2W speaker x1
26. Pi5-Camera-Cable -200mm x1
27. FFC 15PIN cable x1
28. RPi Camera (B) x1
29. MX1.25 4PIN to USB cable x1
30. MIPI-DSI-Cable-12cm x1
31. MX1.25 2PIN to 2.54 3PIN cable x1
32. FFC 22PIN cable ~220 mm (opposite direction) x2
33. MX1.25 2PIN to MX1.25 4PIN ~150 mm x1
34. 20PIN header x2
35. Standoffs style="box-sizing: border-box; margin: 0px 0px 1em; padding: 0px 0px 0px 1.5em; list-style-position: outside; list-style-image: initial;">
36. ESP32-P4-ETH-M x1
37. 10.1-DSI-TOUCH-A x1
38. PoE module x1
39. Screws pack x1
40. 8Ω 2W speaker x1
41. Pi5-Camera-Cable -200mm x1
42. FFC 15PIN cable x1
43. RPi Camera (B) x1
44. MX1.25 4PIN to USB cable x1
45. MIPI-DSI-Cable-12cm x1
46. MX1.25 2PIN to 2.54 3PIN cable x1
47. FFC 22PIN cable ~220 mm (opposite direction) x2
48. MX1.25 2PIN to MX1.25 4PIN ~150 mm x1
49. Standoffs x1
