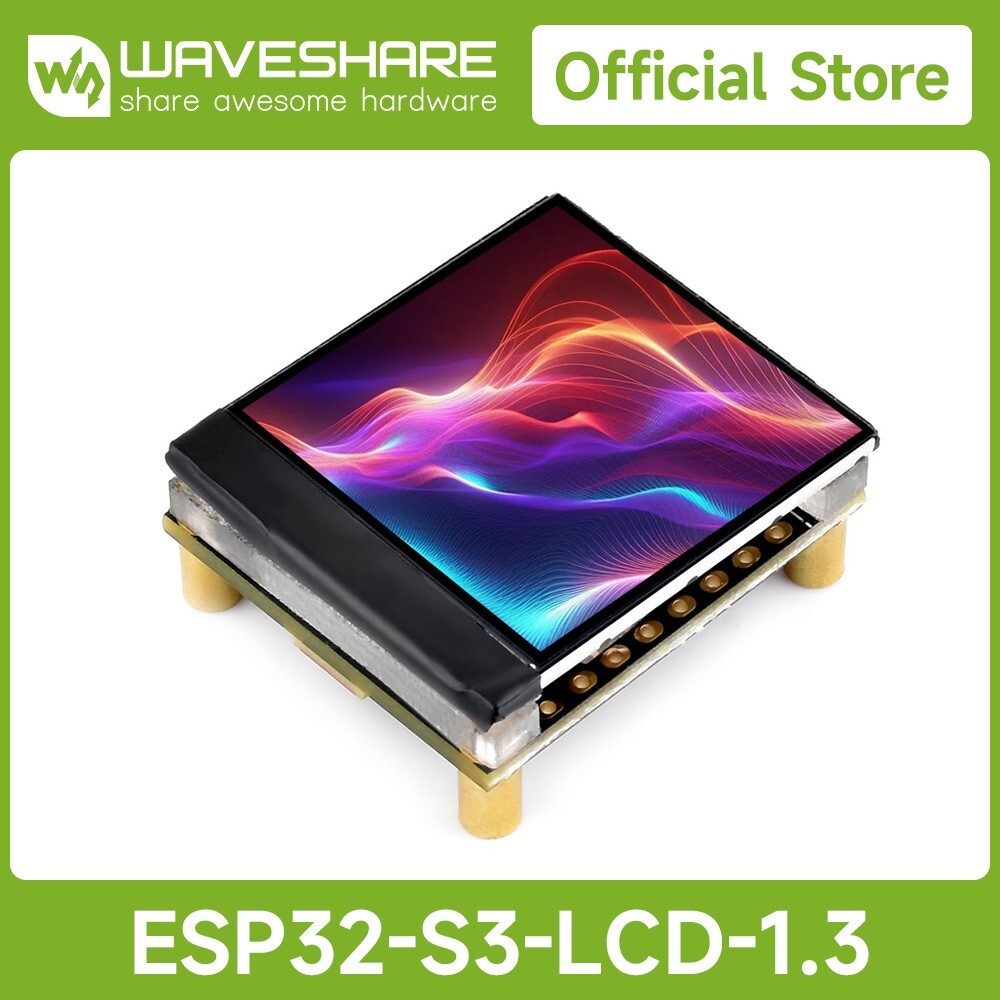

Waveshare ESP32-S3 1.3inch Display Development Board, 240×240 ESP32 With Display
Price: CN $35.62

Description
ESP32-S3 1.3inch Display Development Board, 240×240 Pixels, Built-in ST7789V2 Display Driver Chip And 6-Axis IMU, 262K color, SPI Communication, Supports 90° Hardware Rotation ESP32-S3-LCD-1.3

Embedded with ST7789V2 Display Driver, Supports 90° Hardware Rotation


  • ProcessorLX7 Dual-core Processor
  • Wi-Fi2.4GHz Wi-Fi
  • BluetoothBLE 5
  • AntennaOnboard Antenna
  • Power SupplyType-C Port
  • Size1.3″
  • Resolution240 × 240
  • Display Color262K Color
  • InterfaceSPI
  • DriverST7789
  • Viewing Angle160°
  • Display PanelIPS
  • Card SlotTF Card Slot
  • SensorQMI8658 6-Axis IMU
  • Serial ChipCH343P

Features

TheESP32-S3-LCD-1.3is a low-cost, high-performance MCU board equipped with 240MHz dual-core processor. It is compact in size, with onboard 1.3inch 262K color LCD display, Lithium battery recharge manager, 6-axis sensor (3-axis accelerometer and 3-axis gyroscope), RGB LCD, and Wi-Fi / Bluetooth antenna, which makes it easy for you to develop and integrate it into products quickly.

  • Equipped with ESP32-S3R8 high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
  • Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
  • Built in 512KB of SRAM and 384KB ROM, with onboard 8MB PSRAM and an external 16MB Flash memory
  • Type-C connector, keeps it up to date, easier to use
  • Onboard 1.3inch 240×240 pixels 262K display for clear and colorful pictures
  • Built-in ST7789V2 display driver, using SPI communication, effectively saving the IO resources
  • Onboard QMI8658 6-axis IMU (3-axis accelerometer and 3-axis gyroscope) for detecting motion gestures and other applications
  • Onboard 3.7V MX1.25 lithium battery recharge / discharge header
  • Adapting 13PIN 2.54mm GPIO header for connecting peripherals and debugging, supports flexible configuration of pin functions
  • Optional for prism cube to enhance the optical display effect and greater expandability

Version Options

ESP32-S3-LCD-1.3
Standard version

ESP32-S3-LCD-1.3-B
With plastic case

ESP32-S3-LCD-1.3-C
With plastic case and prism cube



Application Examples

Colorful display effect


6-Axis IMU enhances playability


The display effect with prism cube



Pin Definition
What's On Board
  1. ESP32-S3R8
    Dual-core processor, up to 240MHz operating frequency
  2. Onboard ceramic antenna
  3. 16MB Flash
  4. TF card slot
  5. Charge indicator
    off when fully charged
  1. PL4054 battery recharge manager
  2. ME6217C33M5G
    Low dropout regulator, 800mA output (Max.)
  3. MX1.25 battery header
  4. QMI8658 (back side)
    6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer

outline dimensions

Standard version


With plastic case


With plastic case and prism cube


Resources & Services


Package Content

Weight:0.066 kg

ESP32-S3-LCD-1.3
  1. ESP32-S3-LCD-1.3 x1
  2. Black pinheader x2
1 2 ESP32-S3-LCD-1.3-B

ESP32-S3-LCD-1.3-B x1

ESP32-S3-LCD-1.3-C
  1. ESP32-S3-LCD-1.3-C x1
  2. Prism cube x1
1 2

Buy Now
