Product Description Waveshare ESP32-S3 AIoT Camera Development Board, Audio Input And Output Module Product Description:
The ESP32‑S3 AIoT Camera Development Board integrates audio input & output, supports external display connection, image capture & recognition, and AI speech interaction. It is ideal for rapid prototyping of intelligent terminal applications.
Version Options:
ESP32‑S3‑CAM‑OV5640 – with OV5640 camera
ESP32‑S3‑CAM‑OV3660 – with OV3660 camera
ESP32‑S3‑CAM‑GC2145 – with GC2145 camera
ESP32‑S3‑CAM‑GC0308 – with GC0308 camera Features:
This AI development board based on the ESP32‑S3 integrates a DVP camera interface, SPI / QSPI display interface, and audio capture/playback functions. It offers low cost, high performance, and low power consumption, enabling applications such as voice interaction, question answering, edge vision detection, HMI displays, and smart cameras.
Key Features:
• Xtensa 32‑bit LX7 dual‑core processor up to 240 MHz
• 512 KB SRAM, 384 KB ROM, onboard 8 MB PSRAM, 16 MB Flash
• Built‑in 2.4 GHz Wi‑Fi and Bluetooth LE dual‑mode wireless
• Dual‑microphone array with noise reduction & echo cancellation Expansion & Interfaces:
SPI / QSPI LCD display interface
24‑PIN DVP camera interface
USB, I²C, UART interfaces
Lithium‑Battery charging circuit (3.7 V) and reserved buttons for custom functions Camera Parameter Comparison:
MODEL MAX RESOLUTION OUTPUT INTERFACE OUTPUT FORMAT LENS SIZE FOCAL LENGTH APERTURE FIELD OF VIEW (FOV)
OV5640 2592 × H: 55°, V: 42°
OV3660 2048 × 1536 DVP 8/10‑bit Raw RGB, JPEG, YUV/YCbCr422, × 1232 DVP RGB565/YCbCr422/8‑bit Raw H: 60°, V: 46.8°
GC0308 648 × 488 DVP Grayscale, YCbCr422, H: 46°, V: 35° Onboard Camera Interface:
24‑PIN standard DVP camera interface compatible with OV3660, OV5640, GC0308, and GC2145 cameras.
Onboard Display Interface:
18‑PIN FPC interface for connecting 3.5″, 2.8″, 2″, or 1.83″ Waveshare display modules (display not included).

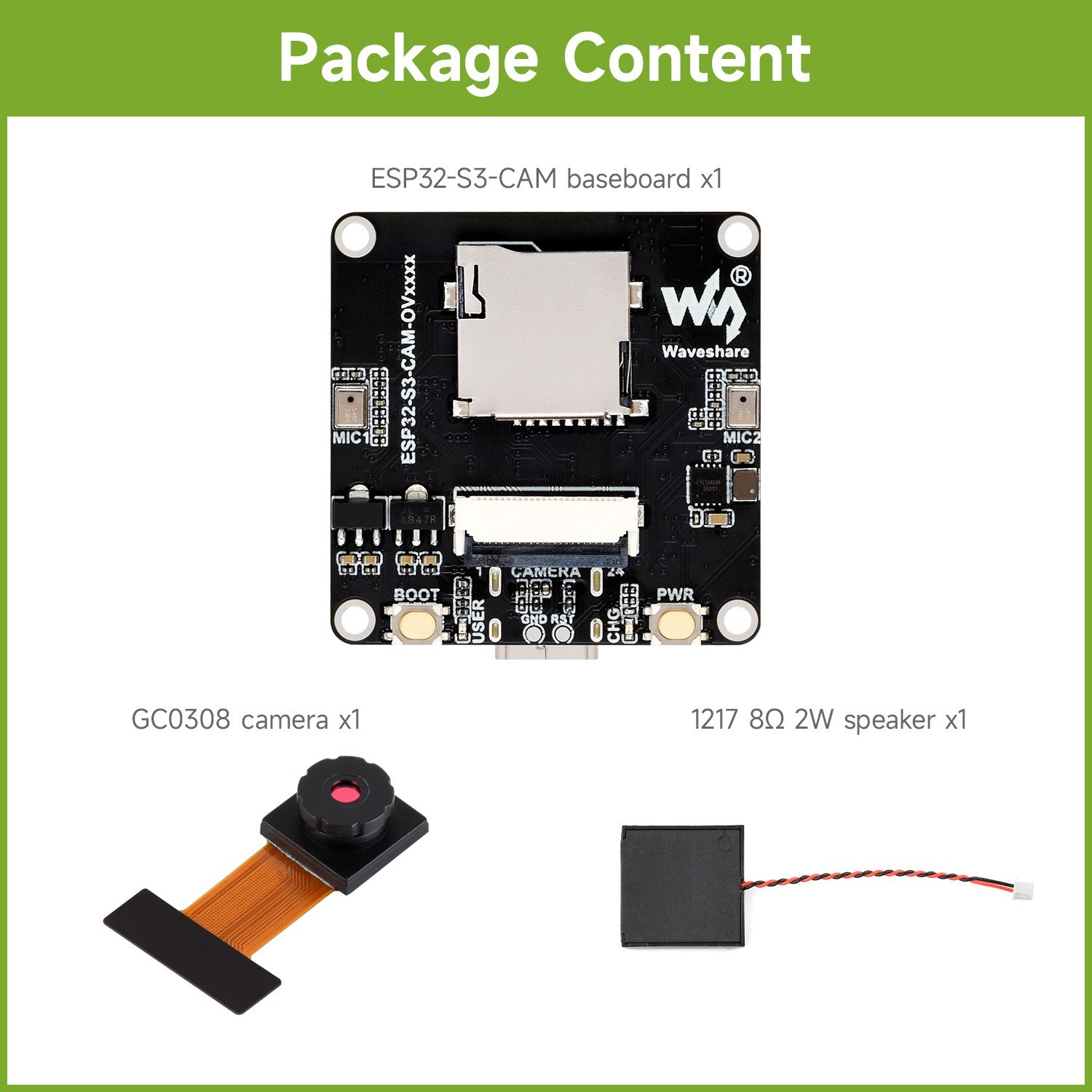

Package Content & Weight:
Weight:0.012 kg
• ESP32‑S3‑CAM baseboard x1
• Camera module (OV5640/OV3660/GC2145/GC0308) x1 per variant
• 1217 8Ω 2W speaker x1 Our Commitment to Excellence 🔐 Payment Options
