DESCRIPTION
Flexible RGB Full-Color LED Matrix Panel, 2.5mm Pitch, 96×48 Pixels, Adjustable Brightness And Bendable PCB 96×48 Flexible RGB LED Matrix Panel

4608 Individual RGB LEDs, 2.5mm Pitch, Flexible PCB

Supports Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino...

* The flexible PCB can be gently bent but do not bend it excessively or repeatedly,
otherwise, it is easy to be damaged

Features At A Glance

By nightfall, the dazzling neon lights of the streets and alleys illuminate the whole city making it more dynamic. Obviously, the Full-Color LED Matrix Panel is playing an important role. Maybe be on the doors of shops, maybe be on the bus or the taxi, you can always see animations or advertisement videos. Does it look cool? Why not have a try?

• 4608 individual RGB LEDs, full-color display, adjustable brightness
• Flexible PCB material, can be gently bent and suitable for some application scenarios such as cylinders, spheres and other curved surface
• 96×48 pixels, 2.5mm pitch, allows displaying text, colorful image, or animation
• 240×120mm dimensions, moderate size, suitable for DIY desktop display or wall mount display
• Onboard two HUB75 header, one for controller data input, one for output, chain support
• Provides open source development resources (examples for Raspberry Pi / Raspberry Pi Pico / ESP32 / Arduino)

Specifications DIMENSIONS 240mm × 120mm PIXELS 96×48=4608 DOTS PITCH 2.5mm PIXEL FORM 1R1G1B VIEWING ANGLE ≥140° CONTROL TYPE synchronization DRIVING 1/24 scan HEADER HUB75 POWER SUPPLY 5V / 4A (VH4 header input) POWER ≤20W Header Definition * this back view is for reference only
PCB silkscreen and layout may have small differences from batch to batch, but software is compatible. PIN DESCRIPTION PIN DESCRIPTION VCC 5V power input GND Ground R1 R higher bit data R2 R lower bit data G1 G higher bit data G2 G lower bit data B1 B higher bit data B2 B lower bit data A A line selection B B line selection C C line selection D D line selection E E line selection CLK clock input LAT/STB latch pin OE output enable
Chainable Design

Multi LED Matrix Panel Can Be Chained Together To Build A Larger Panel
Via HUB75 Input/Output Header

Each RGB LED matrix panel requires a standalone 5V/4A or above power supply, when they're chained to display.
Application Example
Usage Scenarios

Flexible PCB Material, Lighter And Thinner, Can Be Gently Bent And Suitable For Some Cylindrical, Circular And Curved Surfaces, Or Other Creative LED Display Shapes

Product Show
Dimensions

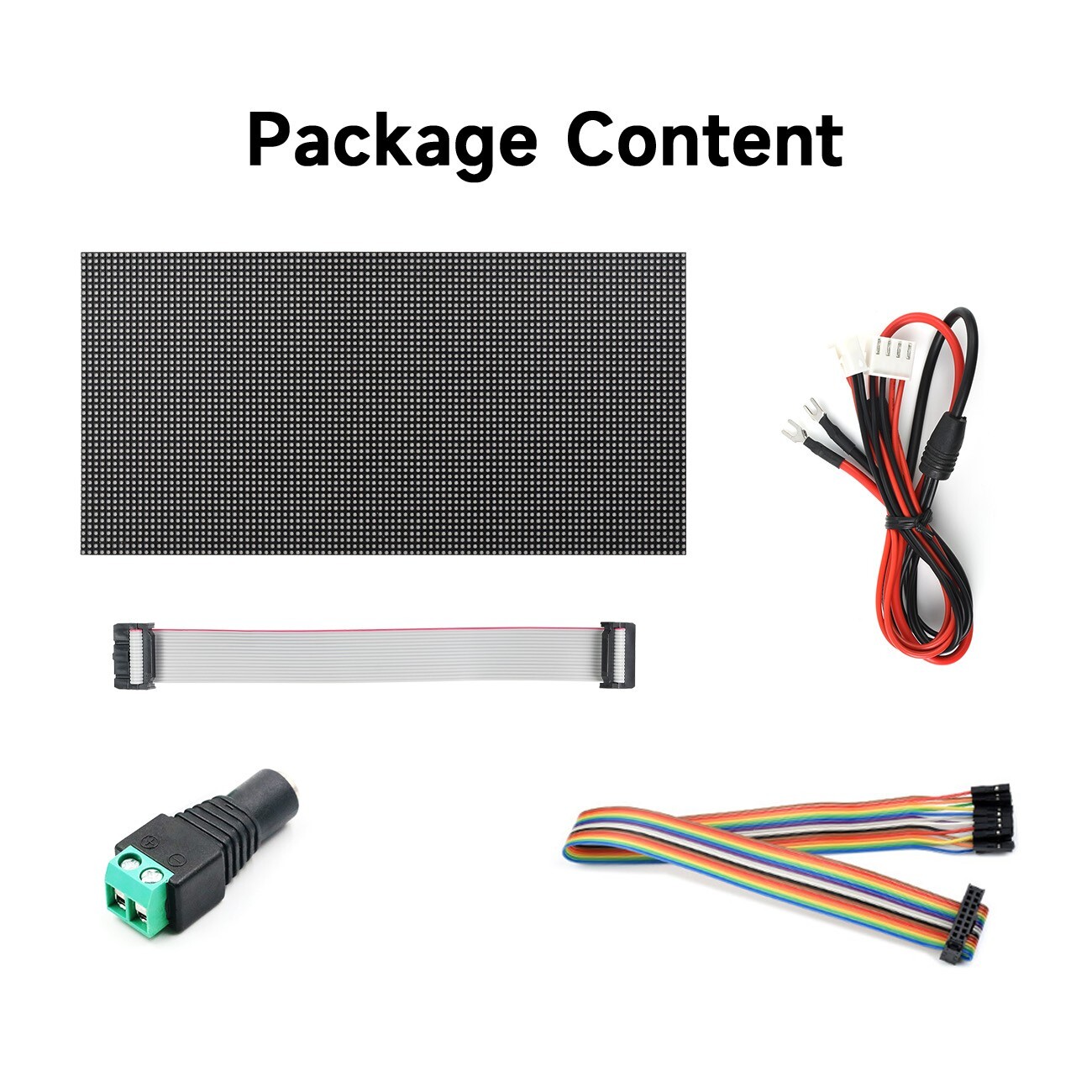

PACKAGE CONTENT

Weight:0.272 kg

1. RGB-Matrix-P2.5-96x48-F LED matrix and accessories x1
2. Power supply terminal adapter x1
3. 16P wire ~30cm x1

It is recommended to used with a 5V 4A power supply
