DESCRIPTION
Flexible RGB Full-Color LED Matrix Panel, 2.5mm Pitch, 96×48 Pixels, Adjustable Brightness And Bendable PCB 96×48 Flexible RGB LED Matrix Panel

* The flexible PCB can be gently bent but do not bend it excessively or repeatedly,

Features At A Glance

By nightfall, the dazzling neon lights of the streets and alleys illuminate the whole city making it more dynamic. Obviously, the Full-Color LED Matrix Panel is playing an important role. Maybe be on the doors of shops, maybe be on the bus or the taxi, you can always see animations or advertisement videos. Does it look cool? Why not have a try?

Specifications DIMENSIONS 240mm × 120mm PIXELS 96×48=4608 DOTS PITCH 2.5mm PIXEL FORM 1R1G1B VIEWING ANGLE ≥140° CONTROL TYPE synchronization DRIVING 1/24 scan HEADER HUB75 POWER SUPPLY 5V / 4A (VH4 header input) POWER ≤20W Header Definition * this back view is for reference only
Chainable Design

Via HUB75 Input/Output Header

Each RGB LED matrix panel requires a standalone 5V/4A or above power supply, when they're chained to display.
Application Example
Usage Scenarios

Product Show
Dimensions

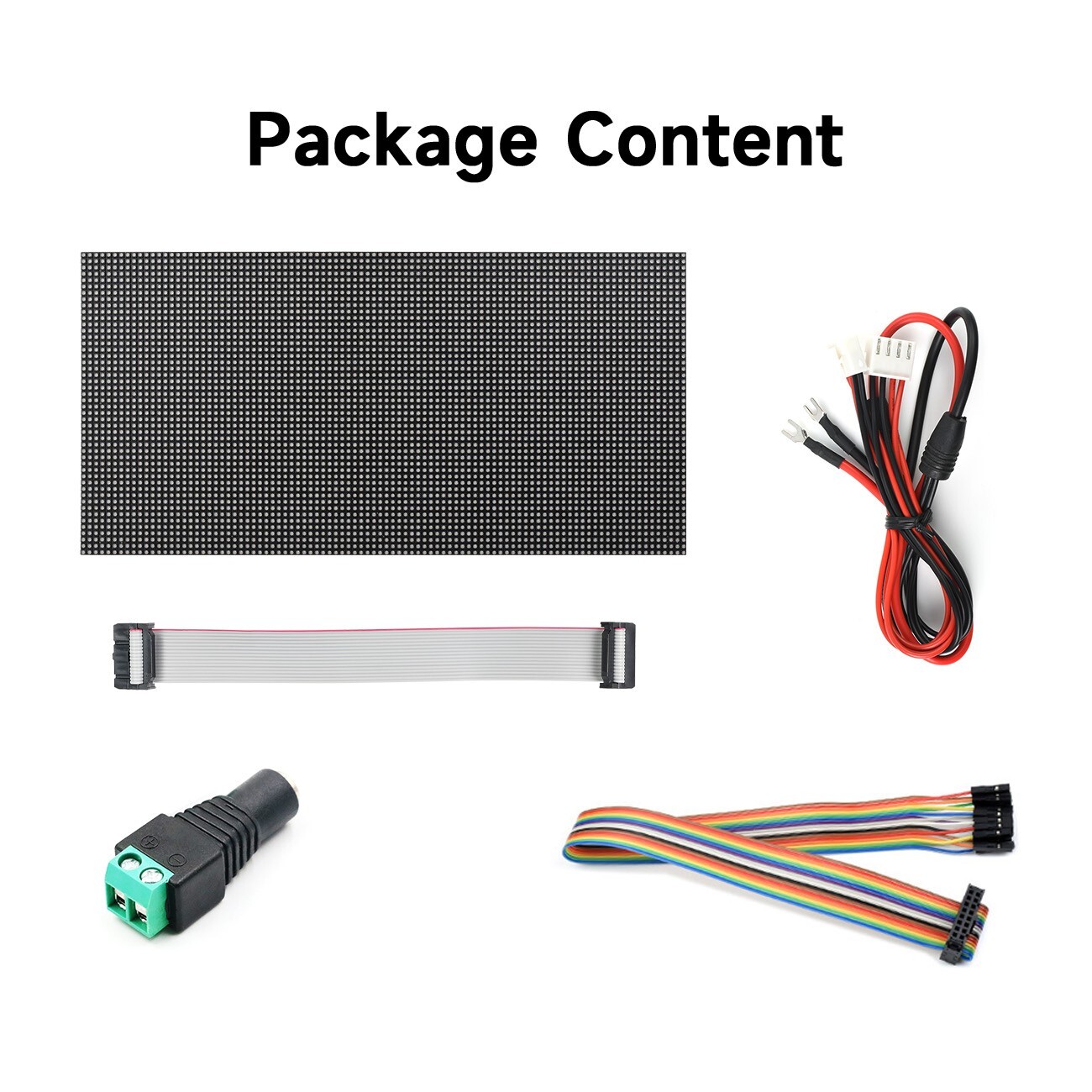

PACKAGE CONTENT

It is recommended to used with a5V 4A power supply
