Description

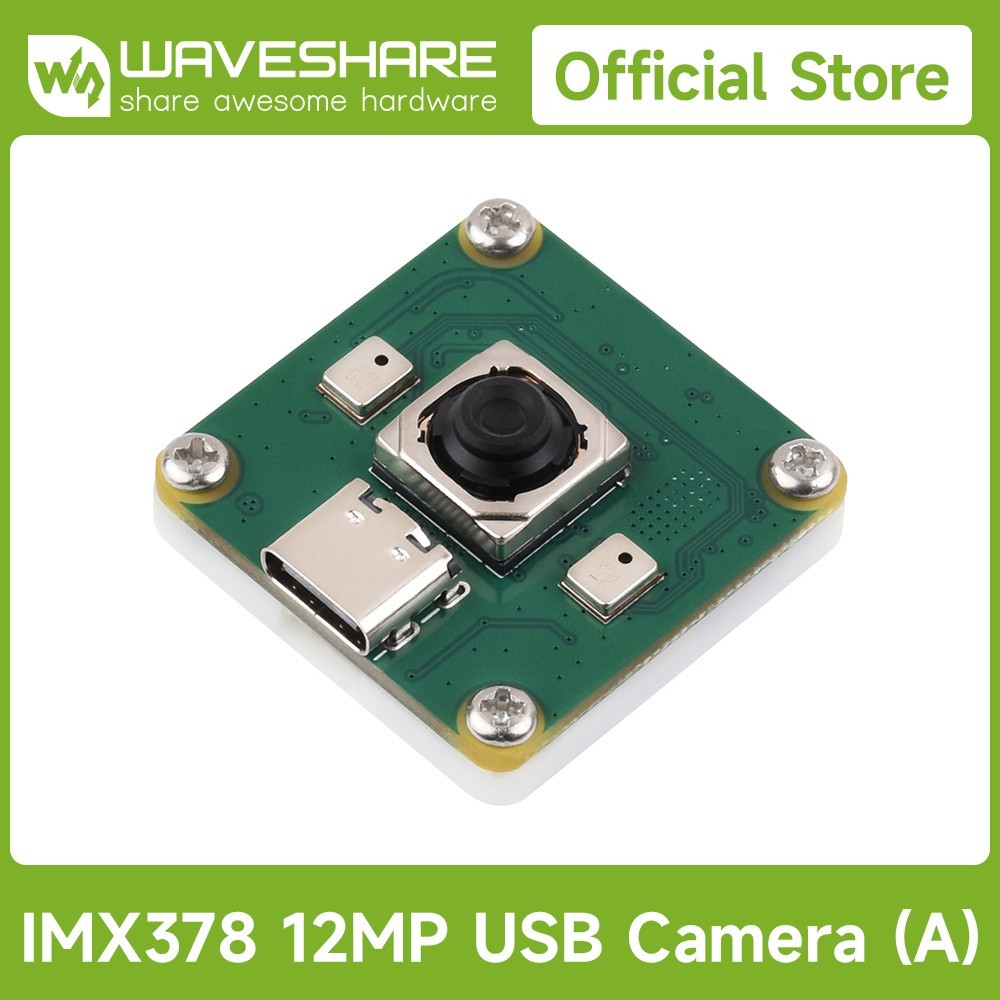

IMX378 12MP USB Camera (A), Supports 30 FPS Output, Better Sensitivity In Low-Light Condition, Distortion-Free, Onboard Dual MicrophonesIMX378 12MP USB camera module
12MP | USB Type-C port | 79.8° FOV | Dual Type-CCameraSensor size1/2.3 inchAperture (F)1.79Focal length (EFL)4.7mmField of view supportMJPG, YVY2Static image resolution3840 × 3032Video recording30 FPS 3840 × 3032
30 FPS 3840 × 2160
30 FPS 2592 × 1944AudioOnboard dual microphonesOperating voltage5V ± 5%operating temperature0°C ~ 50°CModule size30.00 × 30.00 (mm)
Connecting with USB cable
Connecting to Raspberry Pi 5
Connecting to Jetson Orin kit
Connecting to RDK X5 Development Board
* for reference only, theRaspberry Pi 5,Jetson Orin kitandRDK X5 Development Boardare not included
12MP High resolution
Supports 30 FPS output, suitable for capturing details
Distortion-Free
Equipped with a distortion-free lens with a distortion rate of less than 0.39%, delivering undistorted imaging and more accurate reproduction of real-world scenes
* Note: In the industry, lenses with distortion rate less than 2% are generally considered distortion-free.
Pinout Definition
Onboard two types of connectors
Connecting via USB Type-C port
Connecting via 1.0mm pitch 4PIN connector
Outline dimensionsResources & Services
Package Content
Weight:0.02 kg
- IMX378 12MP USB Camera (A) x1
- SH1.0 4PIN dual plug cable x1
