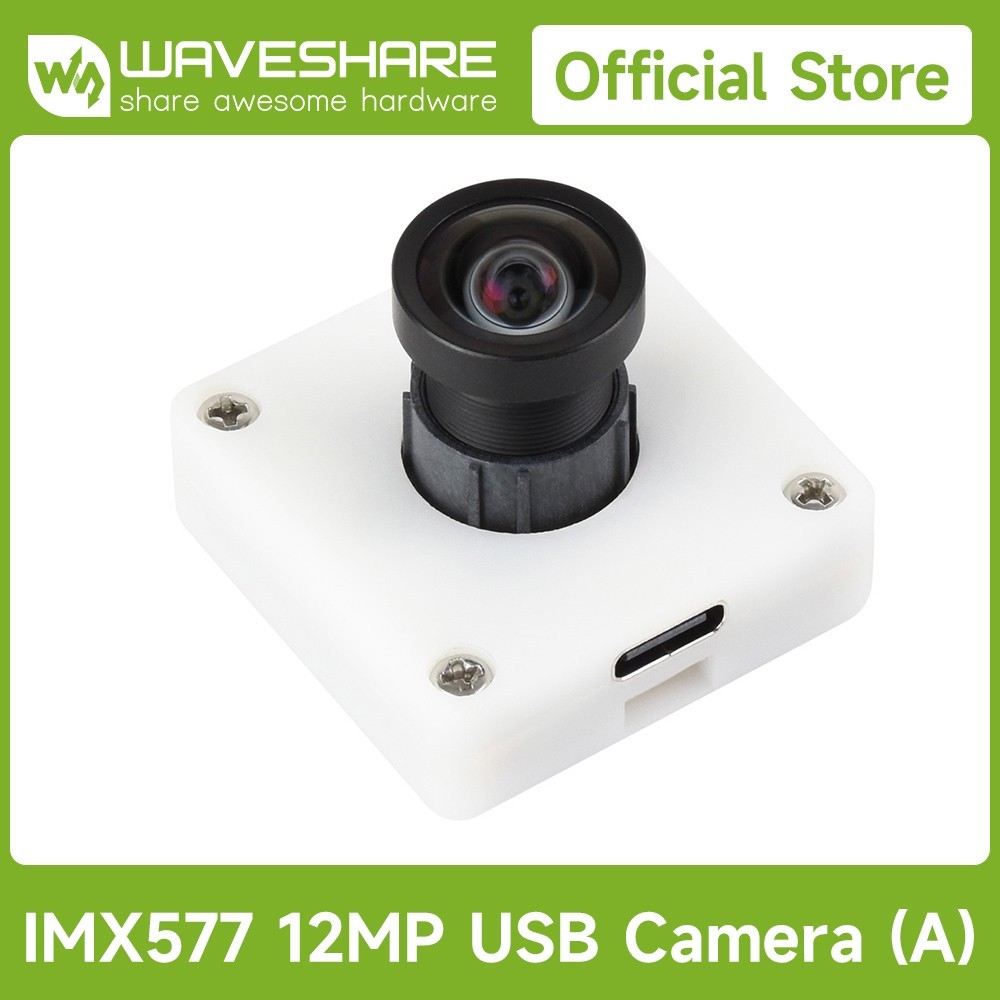

Waveshare IMX577 12MP USB Camera (A), 3840 × 3024 113° FOV, Distortion-Free

Price: CN $71.37

Description
IMX577 12MP USB Camera (A), 3840 × 3024 Resolution, 113° FOV, Distortion-Free, Plug and PlayIMX577 USB camera

12MP high-resolution | USB2.0 Type-C port | 113° Type-C port / SH1.0 4PIN headerCameraSensor size1/2.3 inchAperture (F)2.8Focal length (EFL)2.88mmField of view supportMJPG, YUY2Static image resolution3840 × 3024Video recording20FPS 3840 × 3024
30FPS 3840 × 2160
30FPS 2592 × 1944
30FPS 1920 × 1080Operating voltage5V ± 5%operating temperature0°C ~ 50°CModule size34.00 × 34.00 (mm)
12MP resolution

Supports 3840 × 3024 20 FPS output

Distortion-Free

Equipped with a distortion-free lens with a distortion rate of less than -1.5%, delivering undistorted imaging and more accurate reproduction of real-world scenes

* in the industry, lenses with distortion rate less than 2% are generally considered distortion-free.
Plug and Play, Easy Connection

Onboard USB 2.0 port, driver-free, compatible with various USB hosts such as PC and smart devices, simply plug it in to start using

* for reference only, please refer to the package content for the detailed part list.

Connecting with USB cable

Connecting to Raspberry Pi 5

Connecting to Jetson Orin kit

Connecting to RDK X5 Development Board

* for reference only, theRaspberry Pi 5,Jetson Orin kitandRDK X5 Development Boardare NOT included

Pinout Definition
Onboard two types of connectors

Connecting via USB Type-C port

Connecting via 1.0mm pitch 4PIN header

Outline dimensionsResources & ServicesPackage Content
