Description

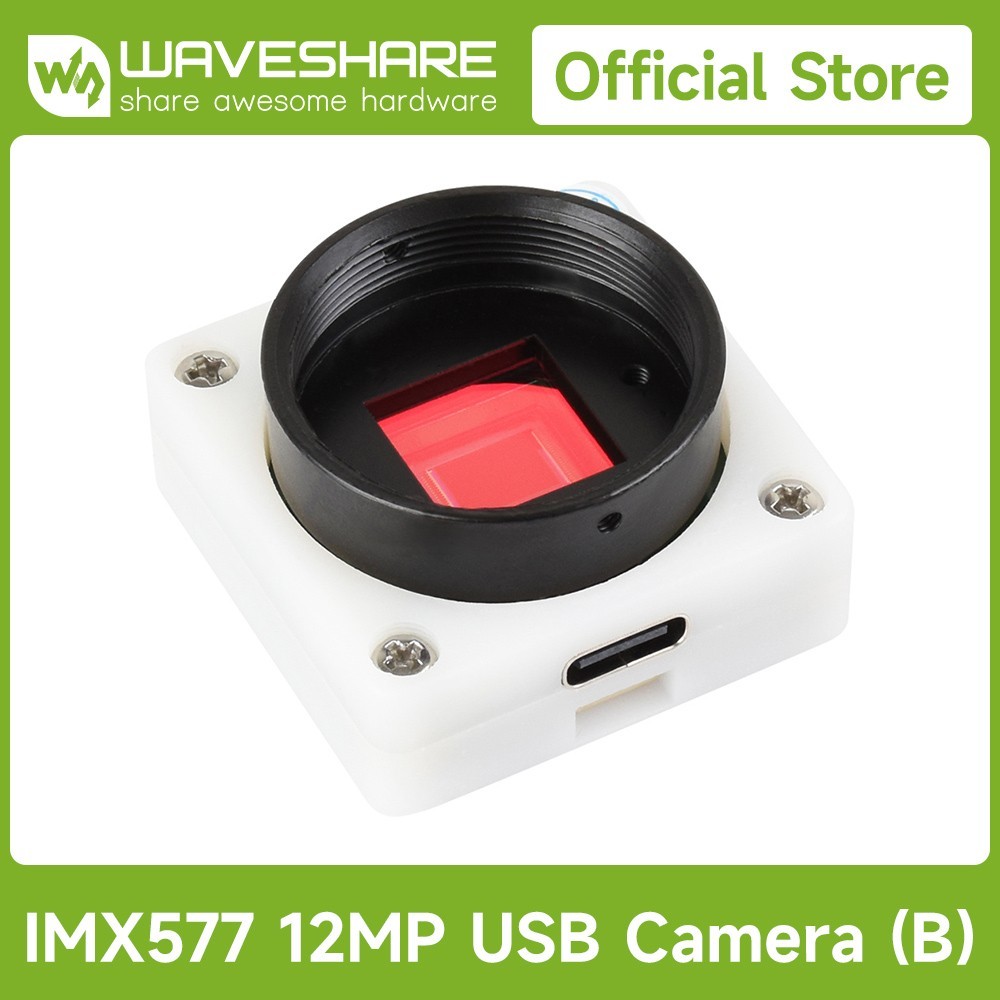

IMX577 12MP USB Camera (B), 3840 × 3024 Resolution, Plug and Play, Supports C/CS Lenses IMX577 USB camera
12MP high-resolution | USB2.0 Type-C port | C/CS Lenses Support
Specifications Pixels 12MP Sensor IMX577 Interface USB2.0 Type-C port / SH1.0 4PIN header Camera Sensor size 1/2.3 inch Lens support C-mount / CS-mount (C-CS adapter included) Image Format support MJPG, YUY2 Static image resolution 3840 × 3024 Video recording 20FPS 3840 × 3024
30FPS 3840 × 2160
30FPS 2592 × 1944
30FPS 1920 × 1080 Operating voltage 5V ± 5% operating temperature 0°C ~ 50°C Module size 34.00 × 34.00 (mm)
12MP resolution
Supports 3840 × 3024 20 FPS output
Comes with C-CS adapter
for various lenses
The camera adopts CS mount and comes with C-CS adapter for flexible use with different lenses
Connecting to6mm Wide Angle Lens for Pi
(C-CS adapter should be removed)
Connecting to16mm Telephoto Lens for Pi
(C-CS adapter required)
* When replacing the lens, please ensure a dust-free operation to prevent dust from entering the camera.
Plug and Play, Easy Connection
Onboard USB 2.0 port, driver-free, compatible with various USB hosts such as PC and smart devices, simply plug it in to start using
* for reference only, please refer to the package content for the detailed part list.
Connecting with USB cable
Connecting to Raspberry Pi 5
Connecting to Jetson Orin kit
Connecting to RDK X5 Development Board
* for reference only, theRaspberry Pi 5,Jetson Orin kitandRDK X5 Development Boardare NOT included
Pinout Definition
Onboard two types of connectors
Connecting via USB Type-C port
Connecting via 1.0mm pitch 4PIN header
Outline dimensions Resources & Services
Package Content
Weight:0.036 kg
- IMX577 12MP USB Camera (B) x1
- SH1.0 4PIN dual plug cable x1
- C-CS adapter + dust cap x1
