Wavlink 18 Full Gigabit Ports Switch with 16 PoE+, 2* 1000Mbps SFP Uplink, 250W Total PoE+ Ports Support 802.3af/at, Unmanaged Network Switch with VLAN, Default, Extend Modes, Rackmount Plug and Play

[18 Full Gigabit Ports] Equipped with 16 PoE+ ports plus 2 dedicated Gigabit SFP uplink ports, this switch delivers flexible expansion and seamless network connectivity. The 16 PoE ports effortlessly power your IP cameras, wireless access points, IP phones and other PoE-compatible devices. Meanwhile, the 2 SFP uplink ports support fiber network connection and long-distance data transmission, effectively boosting network bandwidth and extending coverage.

[Total 250W High Power PoE+ ] Total 250W High Power PoE delivers ample stable power to run multiple PoE devices simultaneously. Fully compliant with IEEE 802.3af/at standard, each PoE port supports up to 30W output, perfectly powering IP cameras, wireless access points, IP phones and more. No extra power adapters required, greatly simplifying wiring and installation.

[Widely Used] Featuring a metal chassis, a high-performance fan design, and ventilation slots on both sides, this device supports both desktop placement and wall-mount installation. Equipped with 16 PoE ports and 2 SFP uplink ports, it is suitable for a variety of networking scenarios in homes, offices, and commercial settings, including computer networks, security surveillance, wireless coverage, and multi-device access and transmission.

[Default, VLAN, Extend] Supports three smart modes: Default Mode, VLAN Mode, and Extended Mode. Default Mode enables seamless connectivity for office networks. VLAN Mode isolates ports to enhance network security and reduce signal interference, ensuring stable operation. Extended Mode extends the transmission distance to 250 meters, making it suitable for long-distance deployments, though signal strength will diminish with distance.

[Plug and Play] This switch supports the automatic detection of standard PoE devices and features a built-in power. Simply connect the power cord and connect the device via an Ethernet cable—no additional configuration is required. The LED indicator on the panel displays the device status, making it very easy to use and maintain."
"18 Port Full Gigabit Switch with 16 PoE Ports
This 18-port full gigabit switch features 16 IEEE 802.3af/at PoE+ ports with a total 250W PoE budget, supporting up to 30W per port and auto device detection. It offers three smart modes—Default, VLAN and Extend—to suit regular networking, port isolation and 250m long-range transmission. Plug-and-play design needs no complex setup, compatible with desktop and rackmount installation. Built with durable metal casing, LED indicators and efficient heat dissipation, it delivers stable lag-free performance and is ideal for IP cameras, wireless APs, IP phones and office network use.

LED Indicator
PWR (Green)
Off: No power supply. / On: Switch is powered on.

LINK/ACT (Green)
Off: No device connected. / On: Link established at 10/100/1000Mbps. / Blinking: Data is being transmitted/received.

PoE (Orange)
Off: No PoE device connected. / On: PoE power is supplied normally. / Blinking: PoE power supply is abnormal.

PoE Max (Green)
Off: Load is below 80% of PoE capacity. / On: Load exceeds 80% of PoE capacity.

Safety Note
The device has a permanently connected protective ground wire, which must be installed by a qualified professional.

Mode
Default Mode: Standard gigabit PoE switch operation, with all ports communicating freely.
VLAN Mode (Isolation Mode): Ports 1–16 are isolated from each other for enhanced security, but can communicate with uplink ports 17–18.
Extend Mode (Monitoring Mode): Forces ports 1–16 to 10 Mbps for long-range transmission up to 250 meters.

Specification
- 16*up to 1000Mbps Ports compliant with IEEE 802.3at/af PoE standards.
- 30W Max Power Output on Each PoE Port
- 250m Ultra-Long Distance Data & Power Transmission
- Features three functional modes for switching: Default Mode, VLAN Mode, and Extend Mode
- Features port overload protection, short-circuit protection, and PoE port prioritisation

Attention
- Handle with care to protect precision components from impact or vibration. Upon receipt, inspect for damage or missing parts and contact support immediately if needed.
- Install in a dry, well-ventilated area with humidity below 90%. Keep away from corrosive gases and strong electromagnetic sources. Ensure adequate space around the unit and do not stack equipment on it.
- Use only certified three-hole sockets with proper grounding. Ensure the protective ground (PGND) wire is correctly connected.
- Do not open the chassis. Unauthorized opening risks severe electric shock and will void the product warranty. All repairs must be performed by qualified personnel only.

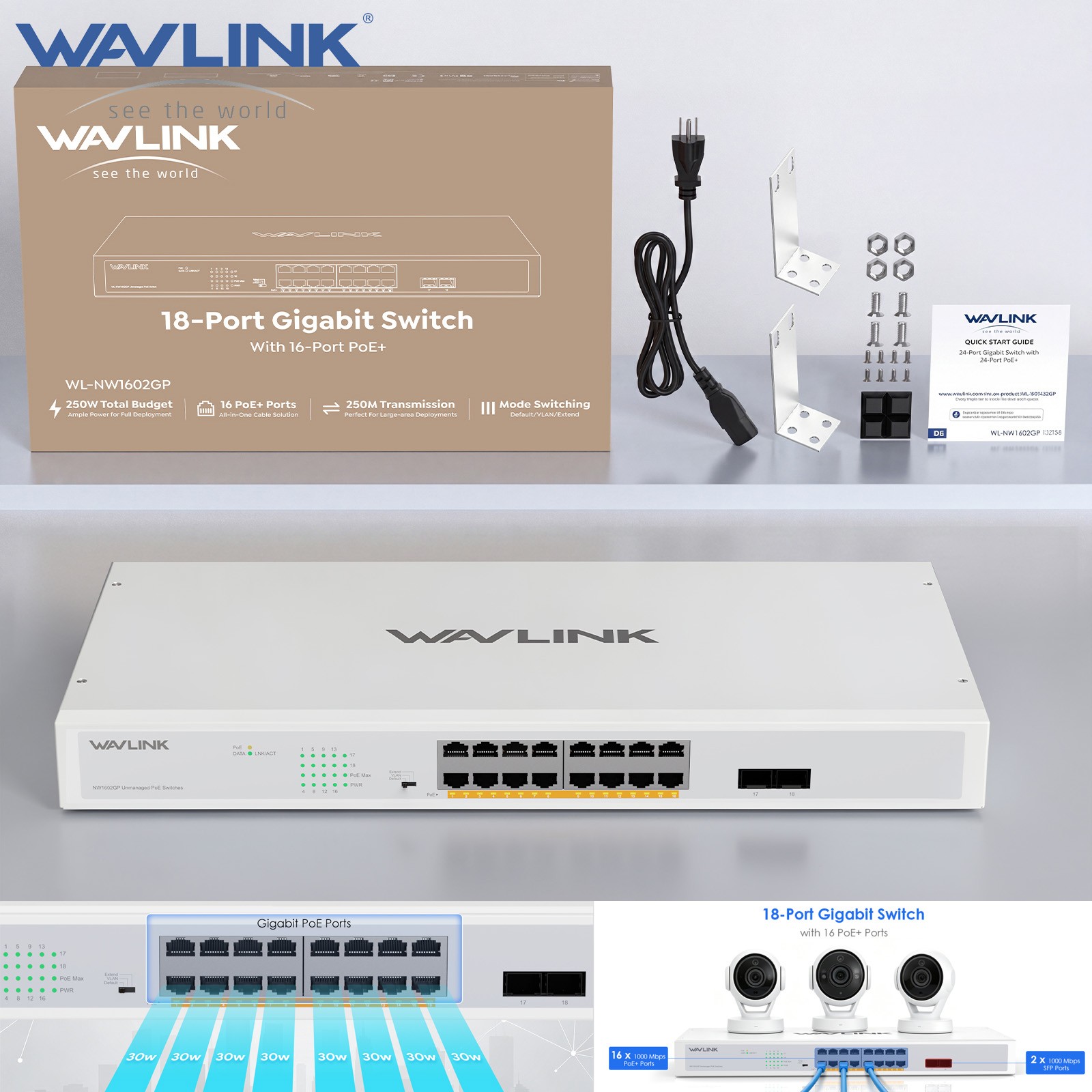

In the Box
1x Network Switch
1x Power Cord
1x Quick Start Guide
1x Installation package
