• [Kind Reminder] This youyeetoo X1 x86 SBC is currently currently in a pre-sale state.You can choose from optional System Memory – 4GB/8GB/16GB LPDDR4;optional eMMC flash with 64GB/128GB/256GB capacity (pls check the variant option from different Asin). We could provide customization services including whole machine customization,boot logo, BIOS features, operating system and more.
• [High-Performance X86 Mini PC] youyeetoo X1 is a complete low-cost Windows x86 single board computer with in#t-e-l Celeron N5105 11th Gen Jasper Lake processor up to 2.9GHz.You can use this mini computer as a media centre, support 4K video steaming and daily useage.
• [Expandible Onboard Interfaces] youyeetoo X1 SBC supports Dual 4K and 3-way video output, including full-size HDMI , Micro HDMI, Display interface over MIPI, M.2 2280 M-key socket for NVMe or SATA SSD,4-pin I2C header, 5-pin SPI header, 6-pin header with 5x GPIOs; I/O voltage: 3.3V.
• [Pre-insalled Windows OS] youyeetoo X1 x86 single board computer supports Windows 10/11, as well as Ubuntu and Debian Linux distributions with aming to provide sample code for both Windows and Linux for things like GPIOs. It would be pre-installed window OS out of box,plug and play.
• [Multiple Wireless Networks] youyeetoo X1 x86 single board computer with M.2 E key extension. Support WIFI(2.4G/5G) and Bluetooth dual-band. It adapted WIFI5 and BT5.0, WIFI6 and BT5.2. Support 4G LTE Module. Extreme scalability allows you to surf the web wirelessly both indoors and outdoors.
• [LAN and PoE Power Support] youyeetoo X1 x86 mini pcs onboard Gigabit WAN port ,Support 24W PoE (802.3AT) power supply (default).Optional 60W / 72W high power PoE power supply module (customised). Start with industrial applications to reduce the difficulty of deployment and streamline costs.

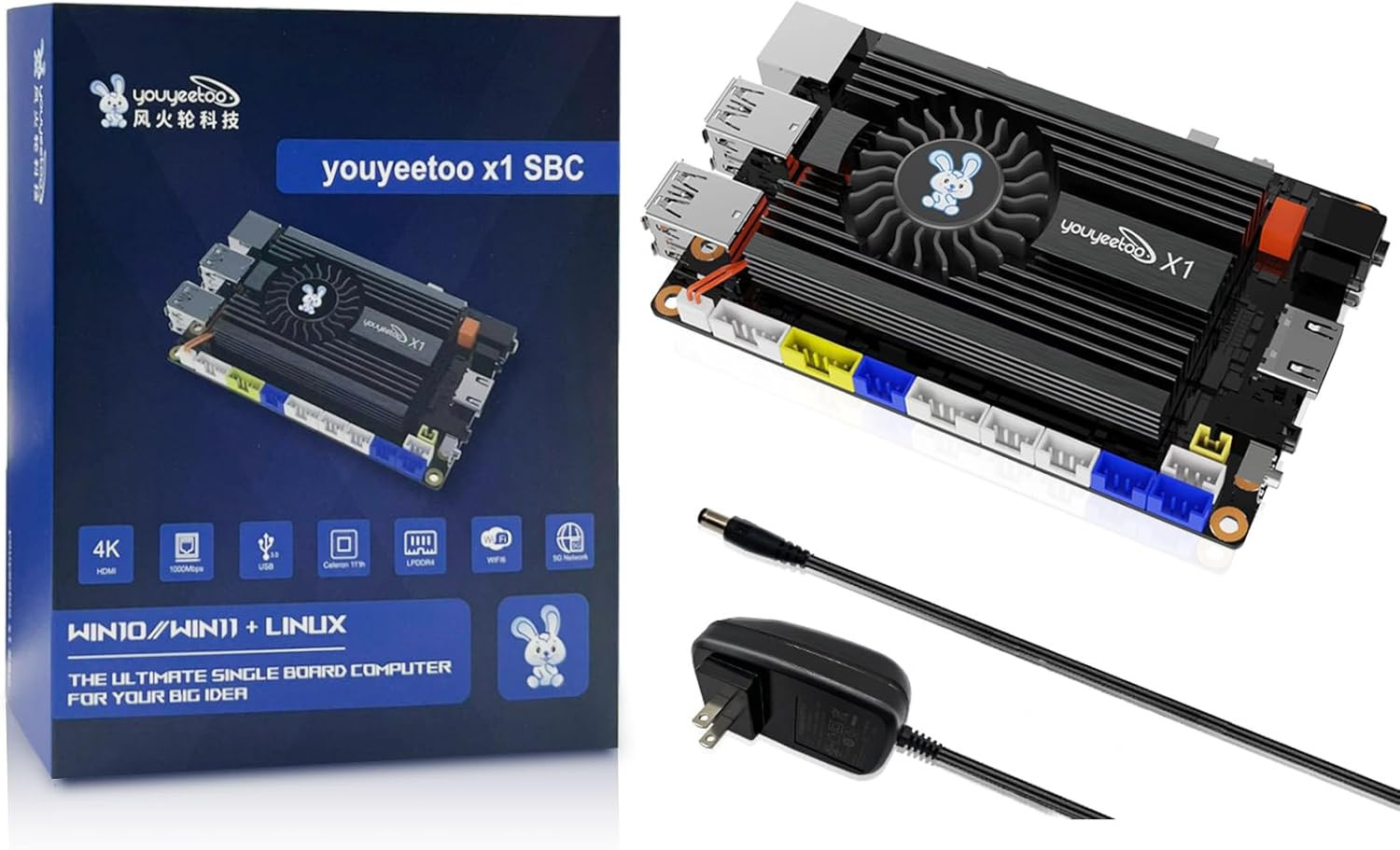

• [Packing list] In the box: youyeetoo X1 x86 single board computer*1(RAM/Strorage depend on your order),12V DC / 3A power supply *1, heat sink *1. If you have Any custimzation requirements or technical support please contact us by wpd#youeetoo.com (#------>@) or post your quesiton on “forum#youyeetoo&com/”(#------>@, &→.)

Product description WayPonDEV youyeetoo X1 X86 Windows Single Board Computer Why choose youyeetoo X1 x86 SBC?

The youyeetoo X1 is an x86-based single board computer (SBC) launched by youyeetoo tech. It supports full-featured versions of Windows and Linux, which is designed for the AIOT and automation market. With its compact size (115mm * 75mm) and high performance (11th Gen N5105 CPU), it offers a range of interfaces commonly used in AIOT applications, including 3x UART, 2x HDMI, 2x USB 3.0, 4x USB 2.0, 1x I2C, 1xSPI, and 5x GPIO. It also supports a 7-inch MIPI touch screen. The recommended model (8GB DDR + 128GB eMMC) is competitive, it is an ideal choice for AI edge computing, AIOT,personal NAS, VPN gateway, software router, 4K media server, or smart home gateway.

Wiki: http(s)://wiki.youyeetoo.com/

Forum: http(s)://forum.youyeetoo.com/

Tech Team: wpd @ youyeetoo dot(.) com

youyeetoo X1 X86 Windows 10/11/Linux Mini PC Specification CPU Celeron 11'th Gen Jasper Lake N5105 CPU (CPU Frequency: 2.0~2.9GHz，Quad-core 10nm TDP 10W) GPU UHD Core Graphics (Frequency:450 - 800MHz) Memory Onboard 4GB / 8GB /16GB LPDDR4 (optional) recommend 8GB Storage eMMC(V5.1): 0/64G/128G/256G(optional); M.2 Slot: NVMe 2280 SSD(PCIE3.0) or M.2 SATA 2280 SSD (Support PCle Gen 3.0 x4 lanes NVMe 1.4,compatible with PCle Gen 3.0 x2 NVME); SATA FPC Slo: SATA3 hard disk can be expanded through SATA adapter board (need SATA adapter board); Micro SD(TF): Supports common SD card to extended storage Network Ethernet: RJ45 Gigabit Ethernet *1; Wireless: WIFI5 & BT5.0/WIFI6 & BT5.2 Expansion via M.2 slot(optional); 4G LTE: M.2 E-key slot expansion,4G data module such as the EC20 /EC25 (need 4G adapter board); Display （Multi- screen） HDMI: HDMI2.0 4K/60Hz; Micro HDMI: HDMI2.0 4K/60Hz; MIPI FPC: Support youyeetoo MIPI7LCD(1024*600) LCD module Support multi- screens with different display USB USB-A: USB2.0 *2; USB-A: USB3.0 *2; USB Pin: USB2.0 *2 M.2 Socket M.2 M Key: NVME SSD/M.2 SATA SSD (M-key) 2280; M.2 E Key: WIFI5+BT5.0 / WIFI6+BT5.2 Module 2230 or 4G adapter board to support 4G LTE module (E-key) UART 3x UART TTL connector for RS232, RS485 or CAN Bus Auto Power-on Turn on X1 without pressing the power button(Auto power on support in BIOS) Power Supply 12V DC socket: Recommended power adapter 12V3A,or XH2.54 2PIN power socket NFC NFC device,data transmission with mobile phones,Compatible with android/IOS phones,we will provide examples Watchdog Standard Windows API support POE Support AC/BT protocol 30W POE module, 60W support can be customized（Need POE module） OS Windows 10/11 Linux Ubuntu / Linux Debian Dimension 115mm x75mm
