Supports Intel LGA211-3 pin series processorsSupports 8xDDR4 memory slots with a maximum memory capacity of 256GBSupport ECC server memory for desktop computers10 layer PCB substrate, powered by 8+8 phases (24+24 MOSFETs)Front pin USB 3.0 x 1 USB 2.0 x 2 Rear USB 3.0 x 4 USB 2.0 x 410x SATA 3.0, 2xM. 2 support NVME protocol3xPCI Express X16, 2xPCI Express X1Lntel X99 chipset2x Realtek 2.5G network card interfaceChicken blood BIOS supports E5 V3 series processors; E5 V4 is not supported

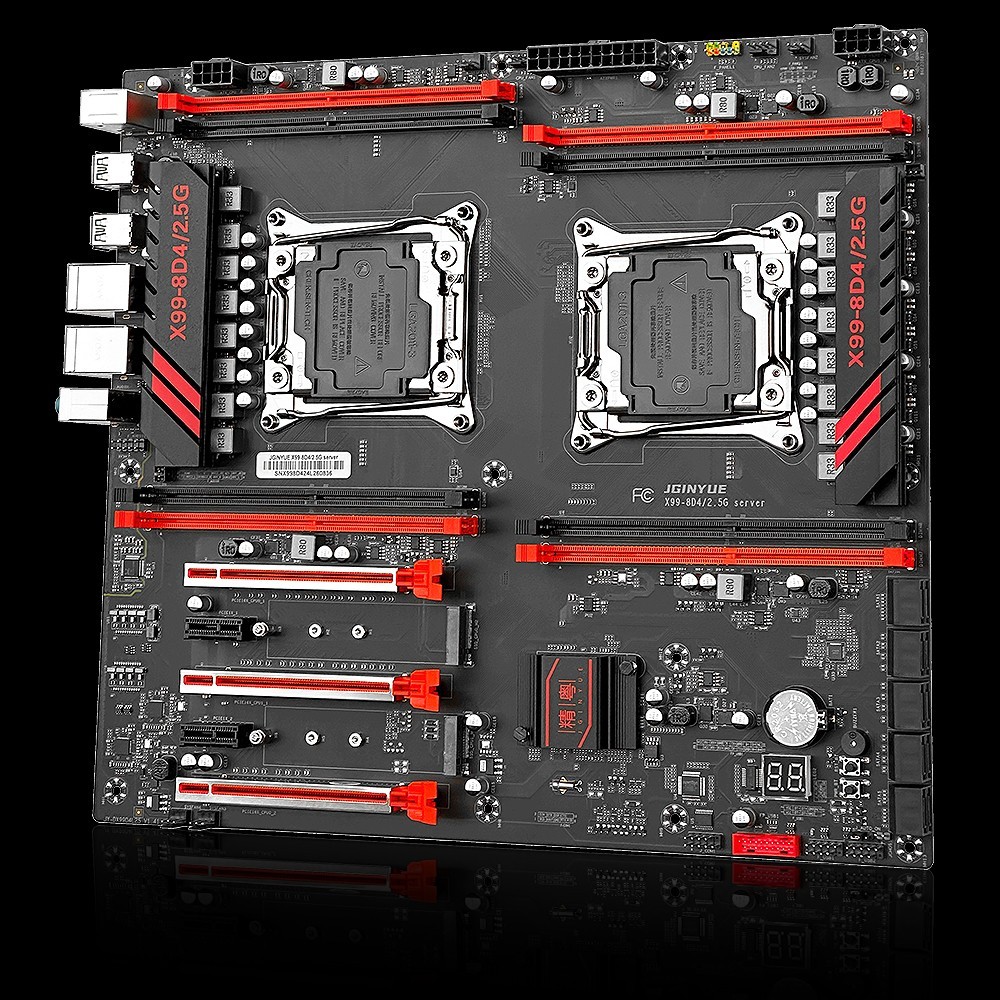

- X99-8D4/2.5G (V1.41 version)
- CPU slot
- Support lntel LGA211-3 pin processor
- Memory slot
- 8xDDR4 memory slots with two sets of four channels
- Memory capacity
- 256GB (single 32GB * 8)
- Memory frequency
- Specification and size
- E-ATX 30cm (length) x33cm (width)
- Fan pin
- 2x4 pin, 4x3 pin, 2x2 pin sockets
- Storage interface
- 10xSATA3.0, 2xM.2 NVME protocol interface
- PCIe slot
- 3xPCI Express x16 slots (one of which is X8 speed), 2xPCI Express x1 slots
- USB interface
- Rear 4xUSB 3.0, 4xUSB 2.0, front 1xUSB 3.0 pin, front 2xUSB 2.0 pin
- Power supply slot
- 1x24Pin，2x8Pin
- Network card slot
- 2x2.5G network card interface (RTL8125BG Realtek)
- Number of power supply phases
- 8+8 phase power supply (24+24 MOS)
- PCB thickness
- 10 layer PCB
- Onboard sound card
- Realtek ALC897
- Other interfaces
- 1xPS/2 keyboard, 1xPS/2 mouse, digital display diagnosis, onboard buzzer, power button, restart button
Important Note Before Purchase
This motherboard is recommended for users with basic computer assembly experience. While we encourage all DIY enthusiasts to explore PC building, please note that proper installation requires technical understanding of component compatibility, BIOS settings, and hardware configuration.
First-Time Builders Welcome!
If this is your initial DIY project, simply contact us through Messages after purchase to receive:
- Step-by-step installation video guide (1080p HD)
- Multi-language PDF manual supported)
- Component compatibility checklist
- Basic troubleshooting assistance
