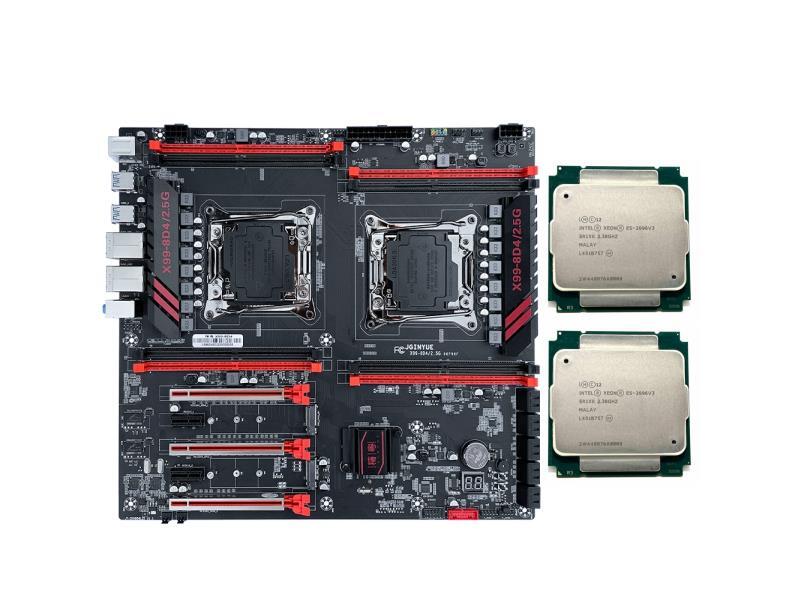

Motherboard
Model: X99-8D4/2.5G dual circuit board
CPU slot: 2011-3 pin E5 V3 V4 series processor
memory slot: 8xDDR4
Memory frequency: 2133/2400/2666MHz Memory capacity: 256G (32Gx8)
Specification and size: E-ATX length 30x width 33cm
Fan pin: 2x4 pin 4x3 pin
M. 2 interfaces: 2xM.2 NVME protocol interface
PCIE slot: 3xPCI Express x16 2x PCI Express x1
U SB interface: rear USB3.0x4 USB2.0x4
Front USB3.0 pin x1 USB2.0 pin x2
SATA interface: 10xSATA3.0
Power supply slot: 24Pin x1/8Pin x2
Network card interface: 2x Intel 2.5G Network card interface
Power supply phase number: 8+8 phase Power supply
PCB thickness: 10 layers of PCB
Other interfaces: PS/2 keyboard x1 PS/2 mouse x1
CPU
CPU Specifications
Total Cores 18 Total Threads 36 Max Turbo Frequency 3.60 GHz Intel® Turbo Boost Technology 2.0 Frequency‡ 3.60 GHz Processor Base Frequency 2.30 GHz Cache 45 MB Intel® Smart Cache Bus Speed 9.6 GT/s # of QPI Links 2 TDP 145 W
Supplemental Information
Marketing Status Discontinued Launch Date Q3'14 Servicing Status End of Servicing Updates End of Servicing Updates Date Friday |December 31 |2021 Embedded Options Available No Datasheet View now
Memory Specifications
Max Memory Size (dependent on memory type) 768 GB Memory Types DDR4 1600/1866/2133 Max # of Memory Channels 4 Max Memory Bandwidth 68 GB/s Physical Address Extensions 46-bit ECC Memory Supported‡ Yes
Expansion Options
Scalability 2S PCI Express Revision 3 PCI Express Configurations ‡ x4 |x8 |x16 Max # of PCI Express Lanes 40
Package Specifications
Sockets Supported FCLGA2011 Max CPU Configuration 2 TCASE 76.4°C Package Size 52.5mm x 51mm
Advanced Technologies
Intel® Turbo Boost Technology ‡ 2 Intel® Hyper-Threading Technology ‡ Yes Intel® Transactional Synchronization Extensions No Intel® 64 ‡ Yes Instruction Set 64-bit Instruction Set Extensions Intel® AVX2 Idle States Yes Enhanced Intel SpeedStep® Technology Yes Intel® Demand Based Switching Yes Thermal Monitoring Technologies Yes Intel® Flex Memory Access No Intel® Identity Protection Technology ‡ No
Security & Reliability
Intel vPro® Eligibility ‡ Intel vPro® Platform Intel® AES New Instructions Yes Secure Key Yes Intel® OS Guard Yes Intel® Trusted Execution Technology ‡ Yes Execute Disable Bit ‡ Yes Intel® Virtualization Technology (VT-x) ‡ Yes Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes Intel® VT-x with Extended Page Tables (EPT) ‡ Yes
