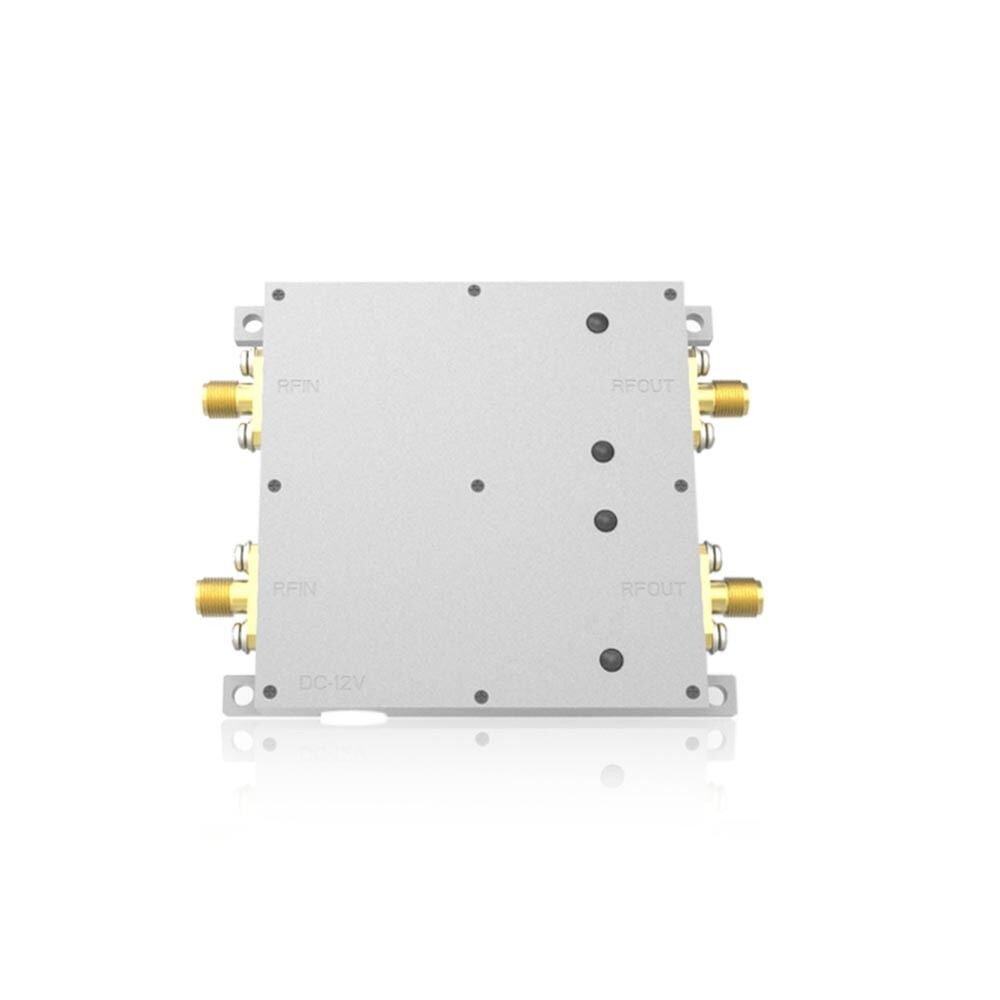

SZHUASHI Dual Band 4W 36dBm 2.4GHz WiFi Indoor Signal Booster Wireless Amplifier
Description
The 2.4GHz Dual Channel Signal Booster is designed for IEEE 802.11b/g/n Wireless LAN applications. It adopts the direct sequence spread spectrum (DSSS) and orthogonal frequency division multiplexing (OFDM) technology of WAN communication. The product is compatible with time division duplexing (TDD) method of WLAN and using rapid microwave detection technology to provide high linearity amplification. The signal booster can work with most WLAN/Wi-Fi devices and increase the WLAN signal strength, therefore a larger WLAN coverage and more stable transmission rate.
20X the power, Improving the link quality and coverage of certified WLAN devices
Frequency Range:2.4~2.5GHz
Operating Voltage: 6~16V
Receiving Gain: 10dB±1(2.4GHz)
Transmission Gain: 13dB±1(2.4GHz)
Input Trigger Power:Min: 3dBm Max: 30dBm
Maximum Output Power (P1dB): 36dBm (4W)
EVM: 3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz
DC Supply Current: 435mA@Pout 28dBm 9V
Noise Figure: <2.5dB(2.4GHz)
TX/RX Switch Time Delay:<1us
LED Indicator: Transmitter: Green; Receiver: Red; Transducers: Orange
Operating Ambient Temperature:-40℃~+70℃
Operating Humidity:<95%RH
Net Weight:115g
Step 1:Disconnect power supply to AP/Router;
Step 2:Detach the antenna from your certified wireless AP/Router
Step 3:Connect Rg316 cable to the booster and AP/Router
Step 5:Connect the power supply to the booster first and subsequently the AP/Router
