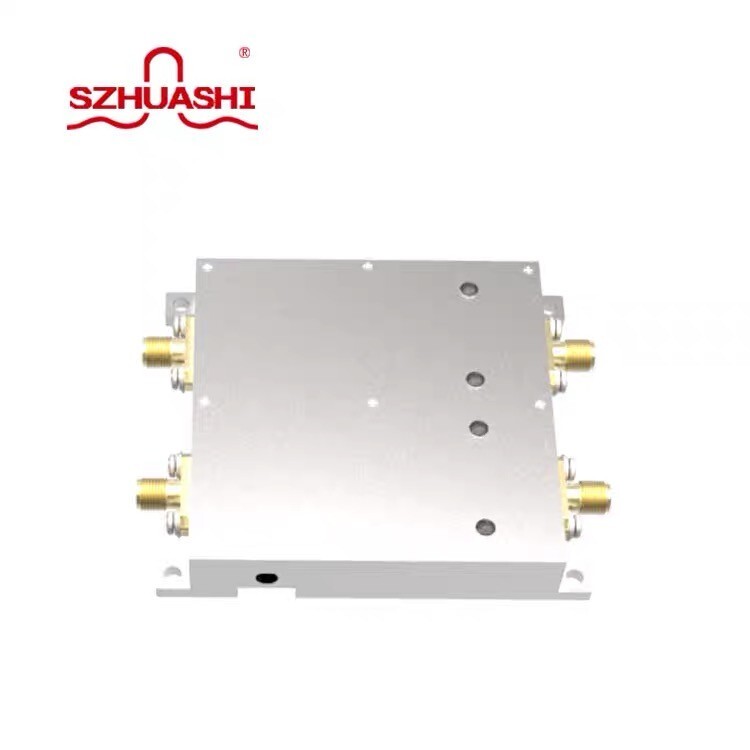

20X the power, improving the link quality and coverage of certified WLAN devices

Frequency Range:2.4~2.5GHz and 5.725~5.85GHz

Operating Voltage: 6~16V

Receiving Gain: 10dB±1(2.4GHz)/15dB±1(5.8GHz)

Transmission Gain: 13dB±1(2.4GHz)/20dB±1(5.8GHz)

Input Trigger Power:Min: 3dBm Max: 30dBm

Maximum Output Power (P1dB): 36dBm (4W)

EVM: 3%@28dBm 802.11g 54Mbps OFDM 64QAM BW 20MHz

DC Supply Current: 1000mA@Pout 28dBm 9V

Noise Figure: ＜2.5dB(2.4GHz)/＜3.0dB(5.8GHz)

TX/RX Switch Time Delay：＜1us

LED Indicator: Transmitter: Green; Receiver: Red; Transducers: Orange

Operating Ambient Temperature:-40℃～+70℃

Operating Humidity:＜95%RH

Net Weight:115g

Step 1:Disconnect power supply to AP/Router;

Step 2:Detach the antenna from your certified wireless AP/Router

Step 3:Connect Rg316 cable to the booster and AP/Router

Step 5:Connect the power supply to the booster first and subsequently the AP/Router
