Description:
Size: 1.3 inch
Resolution: 128X64
Color: Blue
Viewing angle: greater than 160 degrees
Low power consumption: 0.04W during normal operation
wide voltage: 3.3V-5V DC
Working temperature: -30-80 degrees
Volume: 27 * 27 * 4.1mm
Driver IC: - 1 1 0 6
No font: The software takes word modulo
Backlight: OLED light, no backlight Feature:
1.External boost,high brightness,more uniform color, more stable
2.Dual integral power on the automatic reset circuit,failure rate is much lower
3.Better filtering and noise reduction circuit
4.The pack painted with thress anti-paint and long anti-oxidation to extend product life Interface:
VCC: 3.3-5V
GND: Ground
SCL: Clock
SDA: Data Package :

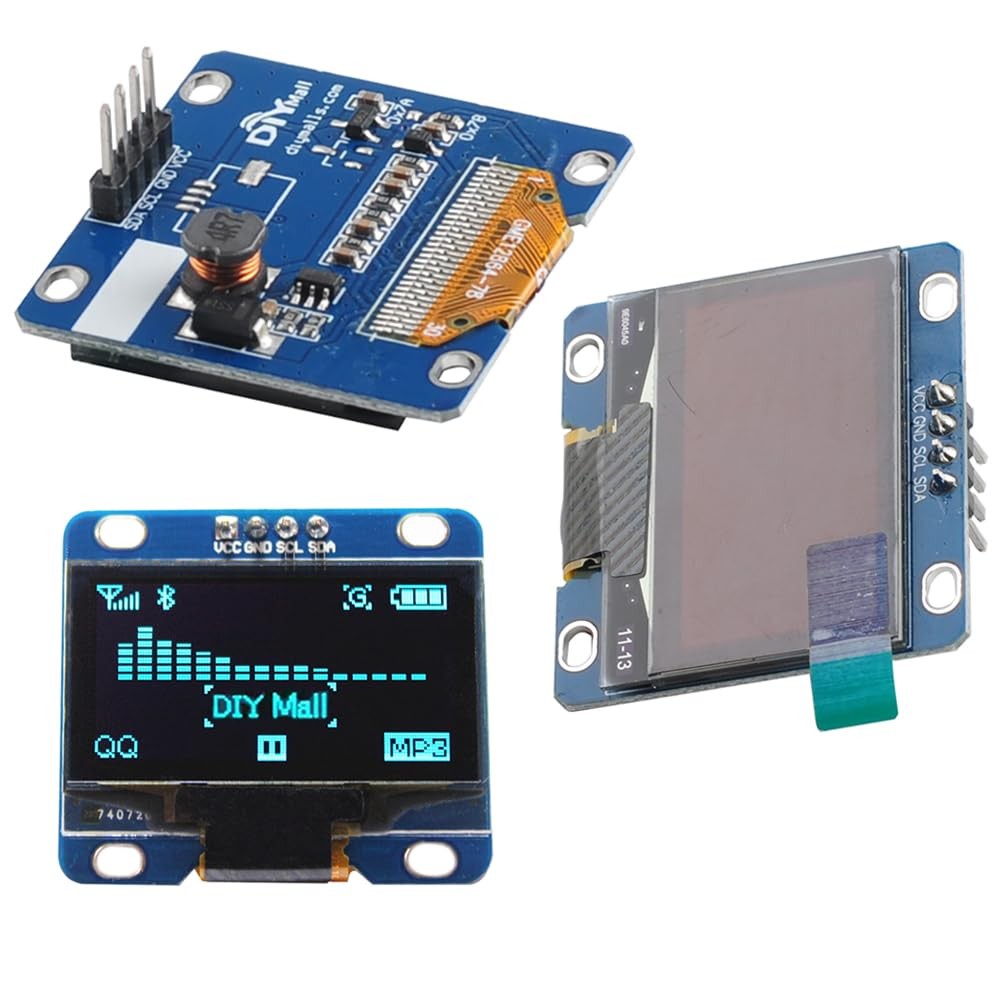

3 x 1.3 OLED Module with cablesThis 1.3 OLED use - 1 1 0 6 chipset, not - 1 3 0 6, so you need to install U8g2 library. You will have artefacts issues with your display if use - 1 3 0 6 library.
The actual default address of OLED is 0x3C, not the 0x78 or 0x7A printed on the back. You must properly define this address in any sketch, or you will not data sent to the display and may mistake it for being DOA.
The 1.3 inch OLED connects easily four lines (power, ground, clock, and data) at address 0x3c. The address is changeable with some soldering, but unless you really need to, don't risk it.
This tiny oled display is widely used in DIY projects: Smartwatches, Small weather station, Alarm clock, Computer resource monitor (CPU/GPU utilization percentages, RAM availability, core temperatures) etc.
Comes with 3x 1.3 oled display i2c with 4 pin headers already soldered on, so no soldering required.
