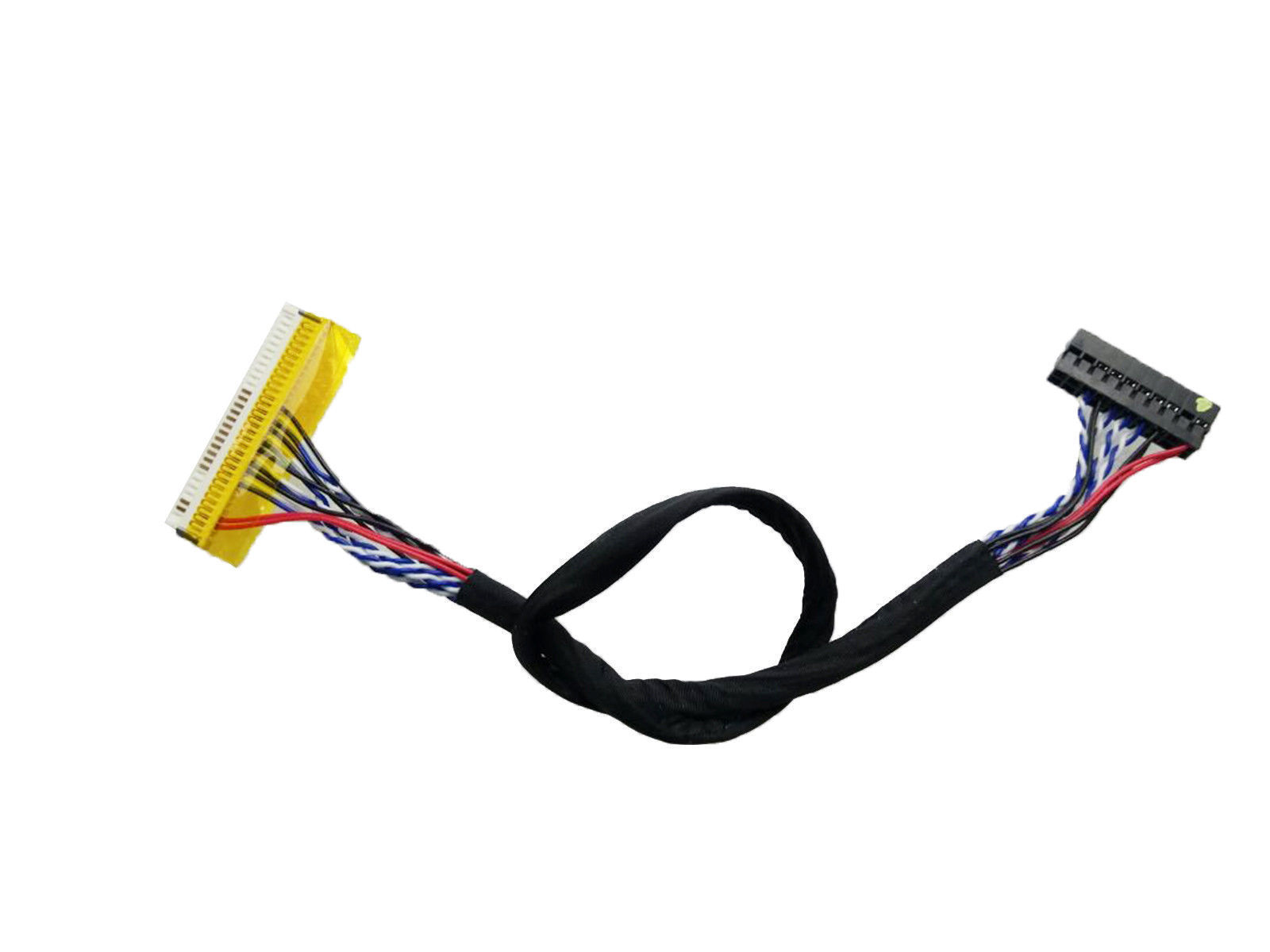

400mm FIX-30Pin 1ch 6-bit Universal LVDS Cable for 13.3" 15.4" 15.6" LCD Screen
Connection the LCD Controller Board:
PIN #
SIGNAL NAME
DESCRIPTION
1
VSEL
Power for panel
2
VSEL
Power for panel
3
VSEL
Power for panel
4
GND
Ground
5
GND
Ground
6
GND
Ground
7
RXO0-
Negative LVDS differential data input
8
RXO0+
Positive LVDS differential data input
9
RXO1-
Negative LVDS differential data input
10
RXO1+
Positive LVDS differential data input
11
RXO2-
Negative LVDS differential data input
12
RXO2+
Positive LVDS differential data input
13
GND
Ground
14
GND
Ground
15
RXOC-
Negative LVDS differential clock input
16
RXOC+
Positive LVDS differential clock input
17
RXO3-
No Connection
18
RXO3+
No Connection
19
RXE0-
LVDS EVEN 0 - Signal
20
RXE0+
LVDS EVEN 0 + Signal
21
RXE1-
LVDS EVEN 1 - Signal
22
RXE1+
LVDS EVEN 1 + Signal
23
RXE2-
LVDS EVEN 2 - Signal
24
RXE2+
LVDS EVEN 2 + Signal
25
GND
Ground
26
GND
Ground
27
RXEC-
LVDS EVEN Clock - Signal
28
RXEC+
LVDS EVEN Clock + Signal
29
RXE3-
LVDS EVEN 3 - Signal
30
RXE3+
LVDS EVEN 3 + Signal
Connection the LCD Screen:
1
GND
Ground
2
VCC
Power Supply
3
VCC
Power Supply
4
VEDID
DDC Power
5
NC
No Connection
6
CLKEDID
DDC Clock
7
DATAEDID
DDC data
8
Odd_RxIN0-
Negaive LVDS differential data input
9
Odd_RxIN0+
Positive LVDS differential data input
10
GND
Ground
11
Odd_RxIN1-
Negaive LVDS differential data input
12
Odd_RxIN1+
Positive LVDS differential data input
13
GND
Ground
14
Odd_RxIN2-
Negaive LVDS differential data input
15
Odd_RxIN2+
Positive LVDS differential data input
16
GND
Ground
17
Odd_RxCLKIN-
Negaive LVDS differential clock input
18
Odd_RxCLKIN+
Positive LVDS differential clock input
19
GND
Ground
20
GND
Ground
21
NC
No Connection
22
NC
No Connection
23
NC
No Connection
24
NC
No Connection
25
NC
No Connection
26
NC
No Connection
27
NC
No Connection
28
NC
No Connection
29
NC
No Connection
30
NC
No Connection
Suitable for below LCDs (not all listed, just for example)
B140EW01
IAXG15S
LTN141XA-L01
B141EW02
LP154W01(A5)
LTN141XB-L01
LTN154XA-L01
B141xg09
LTN141XB-L02
LTN154XB-L01
B150XG01
LP141WX1
LTN150X3-L03
LTN160AT01
B150XG02
LP154W01(TL)
LTN150XB-L01
M156XW01 V.0
B154EW01
LTN150XB-L03
N141I3-L02
B154EW02
LTN150XC-L01
N141L1-L02
B154EW04
LTN150XG-L06
N150X2-L01
B154EW08
LP141X13(C2)
LTN154AT01
N154I1-L07 Rev.C2
CLAA102NA0ACW
LP150x05
LTN154AT01-A01
N154I1-LOC
CLAA150XH01
LP150X06(A3)
LTN154AT07
N154I2-L02
CLAA154WA01
LP150X08
LTN154X1-L01
NL10276BC30-24D
CLAA154WA01A
LP150X08 (A5) (N1)
LTN154X1-L02
QD13WL01
CLAA154WA02
LP150X08(A2)
LP154WX4
LTN154X1-L03
QD141X1LH12
CLAA154WA02B
LP150X08(A3)
LTN154X1-L04
QD14TL01
CLAA154WA05
LTN154X3
QD14XL07
CLAA154WA05A
LP150X08(A5)
LTN154X3-L01
QD15TL01
CLAA154WB04N
LP150X08(A6)
LTN154X3-L02
QD15TL02
CLAA154WB05A
LTN154X3-L03
QD15TL03
CLAA154WB05AN
LP150X09
LTN154X3-L05
QD15TL04
HSD150PX14
LQ154K1LB1CY
LTN154X3-L06
QD15TL07
HSD150PX14-A
LP150X09(B2)
LTD089EXWF
LTN154X3-L08
QD15XL01
HSD150PX14-A02
LP154W01
LTN141AT02-001
LTN154X3-L09
QD15XL06
HT140WX1-101
LP154W01(A1)
LTN141W1-l04
LTN154X3-LOD
TD141TGCD1
HT14X19-l00
LP154W01(A3)
LTN141W1-L05
LTN154X4
TX39D30VC1GAA
Packing list :1× 40cm/400mm FIX-30P 1ch 6bit LVDS cable
