FIX-30Pin 1ch 6bit LVDS CABLE for 14.1" 15.4" 1280x800 1366x768 400mm Length
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

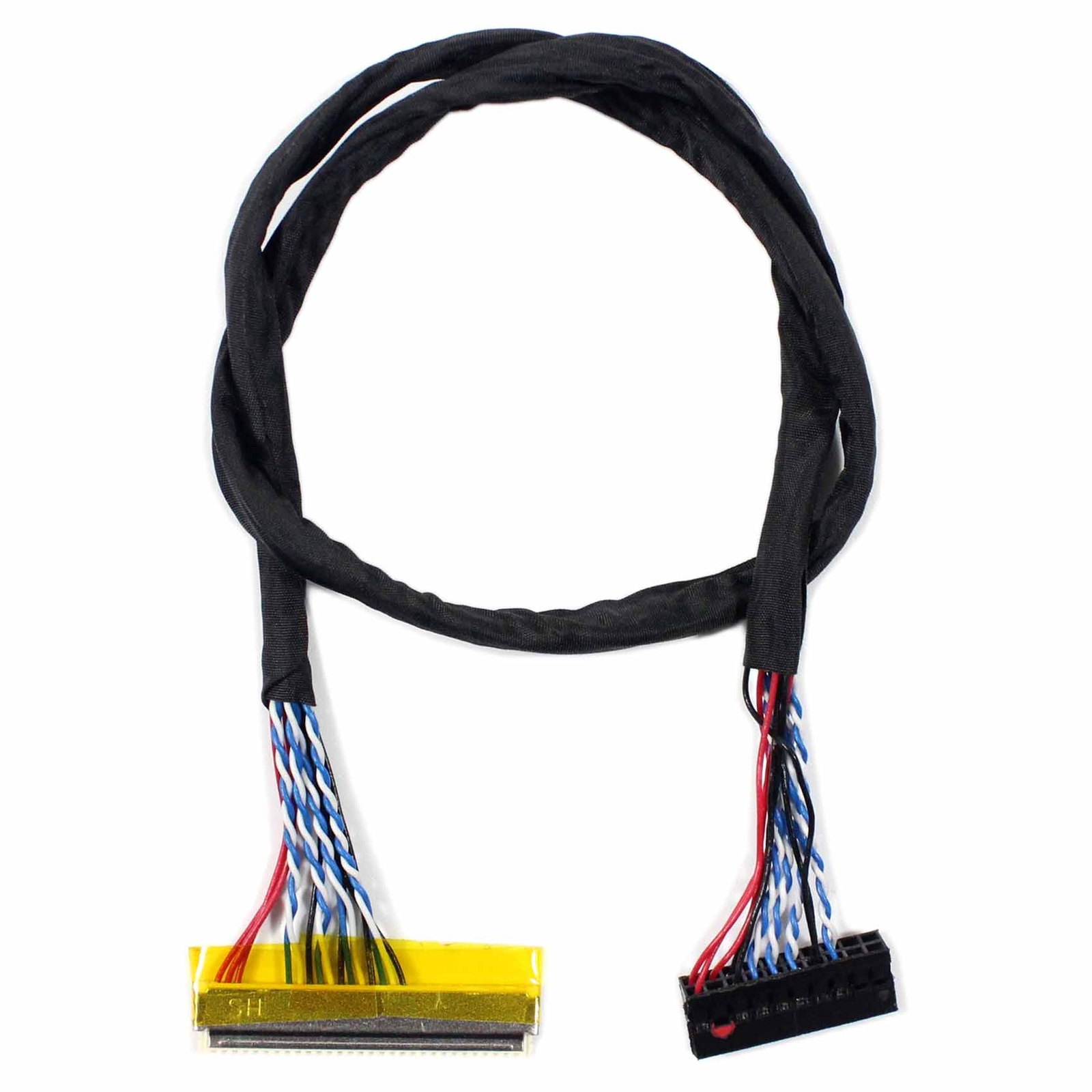

FIX-30Pin 1ch 6bit LVDS CABLE for 14.1" 15.4" 1280x800 1366x768 400mm Length
Price: CN $8.88
Product Description

Connection the LCD Controller Board:

PIN #

SIGNAL NAME

DESCRIPTION

1

VSEL

Power for panel

2

VSEL

Power for panel

3

VSEL

Power for panel

4

GND

Ground

5

GND

Ground

6

GND

Ground

7

RXO0-

Negative LVDS differential data input

8

RXO0+

Positive LVDS differential data input

9

RXO1-

Negative LVDS differential data input

10

RXO1+

Positive LVDS differential data input

11

RXO2-

Negative LVDS differential data input

12

RXO2+

Positive LVDS differential data input

13

GND

Ground

14

GND

Ground

15

RXOC-

Negative LVDS differential clock input

16

RXOC+

Positive LVDS differential clock input

17

RXO3-

No Connection

18

RXO3+

No Connection

19

RXE0-

LVDS EVEN 0 - Signal

20

RXE0+

LVDS EVEN 0 + Signal

21

RXE1-

LVDS EVEN 1 - Signal

22

RXE1+

LVDS EVEN 1 + Signal

23

RXE2-

LVDS EVEN 2 - Signal

24

RXE2+

LVDS EVEN 2 + Signal

25

GND

Ground

26

GND

Ground

27

RXEC-

LVDS EVEN Clock - Signal

28

RXEC+

LVDS EVEN Clock + Signal

29

RXE3-

LVDS EVEN 3 - Signal

30

RXE3+

LVDS EVEN 3 + Signal


Connection the LCD Screen:

1

GND

Ground

2

VCC

Power Supply

3

VCC

Power Supply

4

VEDID

DDC Power

5

NC

No Connection

6

CLKEDID

DDC Clock

7

DATAEDID

DDC data

8

Odd_RxIN0-

Negaive LVDS differential data input

9

Odd_RxIN0+

Positive LVDS differential data input

10

GND

Ground

11

Odd_RxIN1-

Negaive LVDS differential data input

12

Odd_RxIN1+

Positive LVDS differential data input

13

GND

Ground

14

Odd_RxIN2-

Negaive LVDS differential data input

15

Odd_RxIN2+

Positive LVDS differential data input

16

GND

Ground

17

Negaive LVDS differential clock input

18

Positive LVDS differential clock input

19

GND

Ground

20

GND

Ground

21

NC

No Connection

22

NC

No Connection

23

NC

No Connection

24

NC

No Connection

25

NC

No Connection

26

NC

No Connection

27

NC

No Connection

28

NC

No Connection

29

NC

No Connection

30

NC

No Connection


Packing list :
