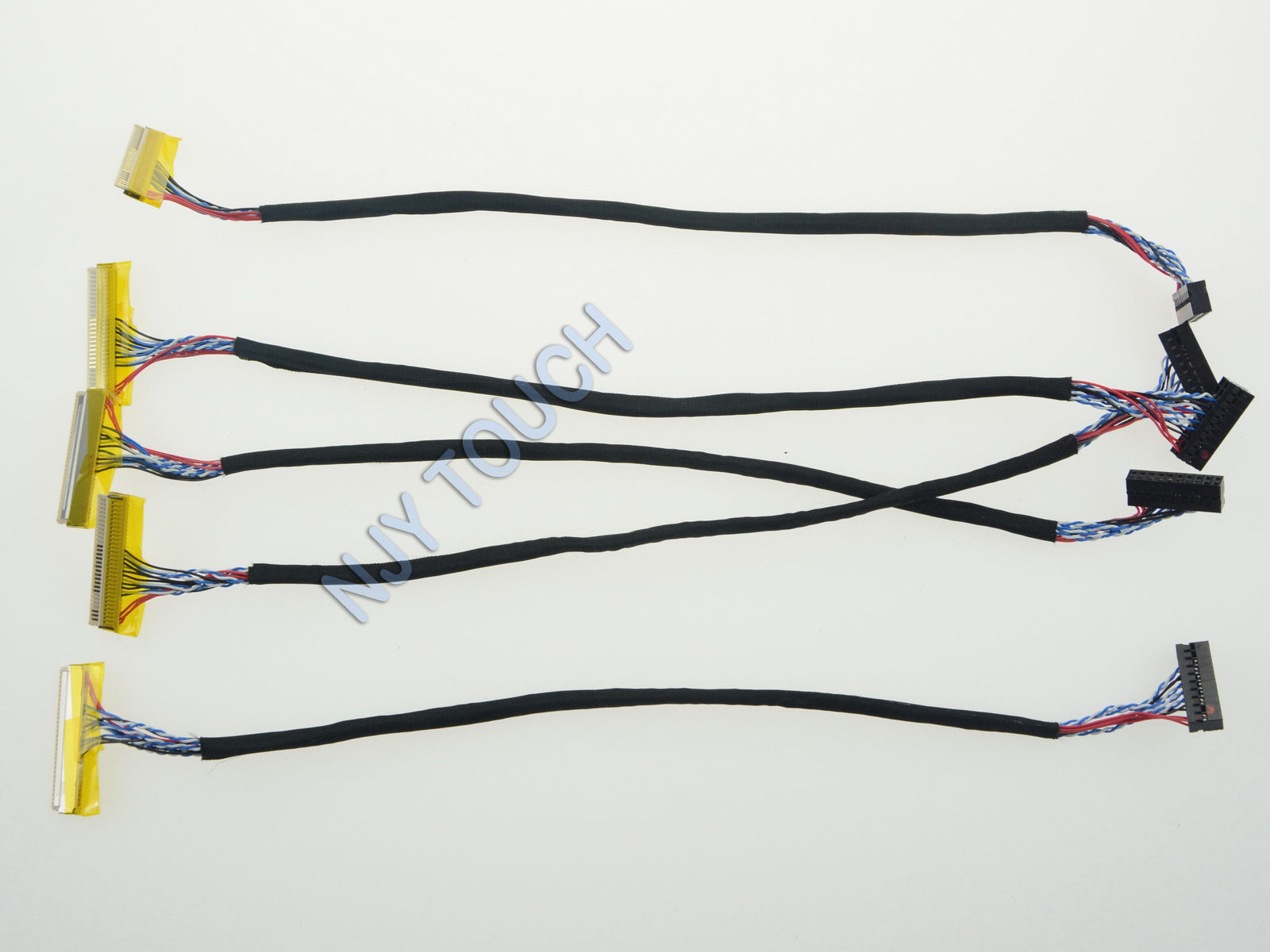

Universal FIX-30Pin 1ch 6bit LVDS Cables Work for 14.1inch~15.6inch LCD Screen
Length: about26cm
Pins: 30 pin to 20 pin
Wiring: 4 pairs of blue&white cables (for signaling connection);
Black wires stand for “Ground” and red wires stand for "Power"
Application:
Suitable for LCD display with 1 channel LVDS interface (RGB 6-bits data, 4 pairs of differential signal; Type Part Number:JAE FI-XB30SL-HF10);
Compatible with our LCD controller;
Good for12.1",13.3",14.1",15", and15.4"LCD panels with resolutions 1024*768, 1280*800;
Useful for maintenance/repair shops.
(2x15pin/2.0) the black connector pin sequence:
Pin Sequence
Definition
Description
1
LCD-VDD
Power for Panel
2
LCD-VDD
Power for Panel
3
LCD-VDD
Power for Panel
4
GND
Ground
5
GND
Ground
6
GND
Ground
7
RXO0-
LVDS ODD 0 - Signal
8
RXO0+
LVDS ODD 0 + Signal
9
RXO1-
LVDS ODD 1 - Signal
10
RXO1+
LVDS ODD 1 + Signal
11
RXO2-
LVDS ODD 2 - Signal
12
RXO2+
LVDS ODD 2 + Signal
13
GND
Ground
14
GND
Ground
15
RXOC-
LVDS ODD Clock - Signal
16
RXOC+
LVDS ODD Clock + Signal
17
RXO3-
LVDS ODD 3 - Signal
18
RXO3+
LVDS ODD 3 + Signal
19
RXE0-
LVDS EVEN 0 - Signal
20
RXE0+
LVDS EVEN 0 + Signal
21
RXE1-
LVDS EVEN 1 - Signal
22
RXE1+
LVDS EVEN 1 + Signal
23
RXE2-
LVDS EVEN 2 - Signal
24
RXE2+
LVDS EVEN 2 + Signal
25
GND
Ground
26
GND
Ground
27
RXEC-
LVDS EVEN Clock - Signal
28
RXEC+
LVDS EVEN Clock + Signal
29
RXE3-
LVDS EVEN 3 - Signal
30
RXE3+
LVDS EVEN 3 + Signal
30pin connector pin sequence (the connector to LCD LVDS interface):
PIN #
SIGNAL NAME
DESCRIPTION
1
GND
Ground
2
VCC
Power Supply
3
VCC
Power Supply
4
VEDID
DDC Power
5
NC
No Connection
6
CLKEDID
DDC Clock
7
DATAEDID
DDC data
8
Odd_RxIN0-
-LVDS differential data input
9
Odd_RxIN0+
+LVDS differential data input
10
GND
Ground
11
Odd_RxIN1-
-LVDS differential data input
12
Odd_RxIN1+
+LVDS differential data input
13
GND
Ground
14
Odd_RxIN2-
-LVDS differential data input
15
Odd_RxIN2+
+LVDS differential data input
16
GND
Ground
17
Odd_RxCLKIN-
-LVDS differential clock input
18
Odd_RxCLKIN+
+LVDS differential clock input
19
GND
Ground
20
GND
Ground
21
NC
No Connection
22
NC
No Connection
23
NC
No Connection
24
NC
No Connection
25
NC
No Connection
26
NC
No Connection
27
NC
No Connection
28
NC
No Connection
29
NC
No Connection
30
NC
No Connection
Suitable for below LCDs (not all listed, just for example)
B140EW01
IAXG15S
LP154W01(A3)(K1)
LTN141XA-L01
LTN154X5(TL)(B2)
B141EW02
LP133WX1(TL)(B1)
LP154W01(A5)
LTN141XB-L01
LTN154XA-L01
B141xg09
LP133WX1(TL)(N2)
LP154W01(A5)(K1)
LTN141XB-L02
LTN154XB-L01
B150XG01
LP141WX1
LP154W01(A5)(K2)
LTN150X3-L03
LTN160AT01
B150XG02
LP141WX1(TL)(A1)
LP154W01(TL)
LTN150XB-L01
M156XW01 V.0
B154EW01
LP141WX1(TL)(A2)
LP154W01(TL)(A2)
LTN150XB-L03
N141I3-L02
B154EW02
LP141WX3(TL)(B1)
LP154W01(TL)(AE)
LTN150XC-L01
N141L1-L02
B154EW04
LP141WX3(TL)(N1)
LP154W01(TL)(AJ)
LTN150XG-L06
N150X2-L01
B154EW08
LP141X13(C2)
LP154W01(TL)(AZ)
LTN154AT01
N154I1-L07 Rev.C2
CLAA102NA0ACW
LP150x05
LP154W01(TL)(B5)
LTN154AT01-A01
N154I1-LOC
CLAA150XH01
LP150X06(A3)
LP154W01(TL)(B6)
LTN154AT07
N154I2-L02
CLAA154WA01
LP150X08
LP154W01(TL)(D1)
LTN154X1-L01
NL10276BC30-24D
CLAA154WA01A
LP150X08 (A5) (N1)
LP154W01(TL)(D3)
LTN154X1-L02
QD13WL01
CLAA154WA02
LP150X08(A2)
LP154WX4
LTN154X1-L03
QD141X1LH12
CLAA154WA02B
LP150X08(A3)
LP154WX4(TL)(AB)
LTN154X1-L04
QD14TL01
CLAA154WA05
LP150X08(A3)(M1)
LP154WX4(TL)(C1)
LTN154X3
QD14XL07
CLAA154WA05A
LP150X08(A5)
LP154WX4(TL)(C3)
LTN154X3-L01
QD15TL01
CLAA154WB04N
LP150X08(A6)
LP154WX4(TL)(C5)
LTN154X3-L02
QD15TL02
CLAA154WB05A
LP150X08(TL)(A1)
LP154WX4(TL)(CB)
LTN154X3-L03
QD15TL03
CLAA154WB05AN
LP150X09
LP156WH1(TL)(A1)
LTN154X3-L05
QD15TL04
HSD150PX14
LP150X09(A5)(K1)
LQ154K1LB1CY
LTN154X3-L06
QD15TL07
HSD150PX14-A
LP150X09(B2)
LTD089EXWF
LTN154X3-L08
QD15XL01
HSD150PX14-A02
LP154W01
LTN141AT02-001
LTN154X3-L09
QD15XL06
HT140WX1-101
LP154W01(A1)
LTN141W1-l04
LTN154X3-LOD
TD141TGCD1
HT14X19-l00
LP154W01(A3)
LTN141W1-L05
LTN154X4
TX39D30VC1GAA
