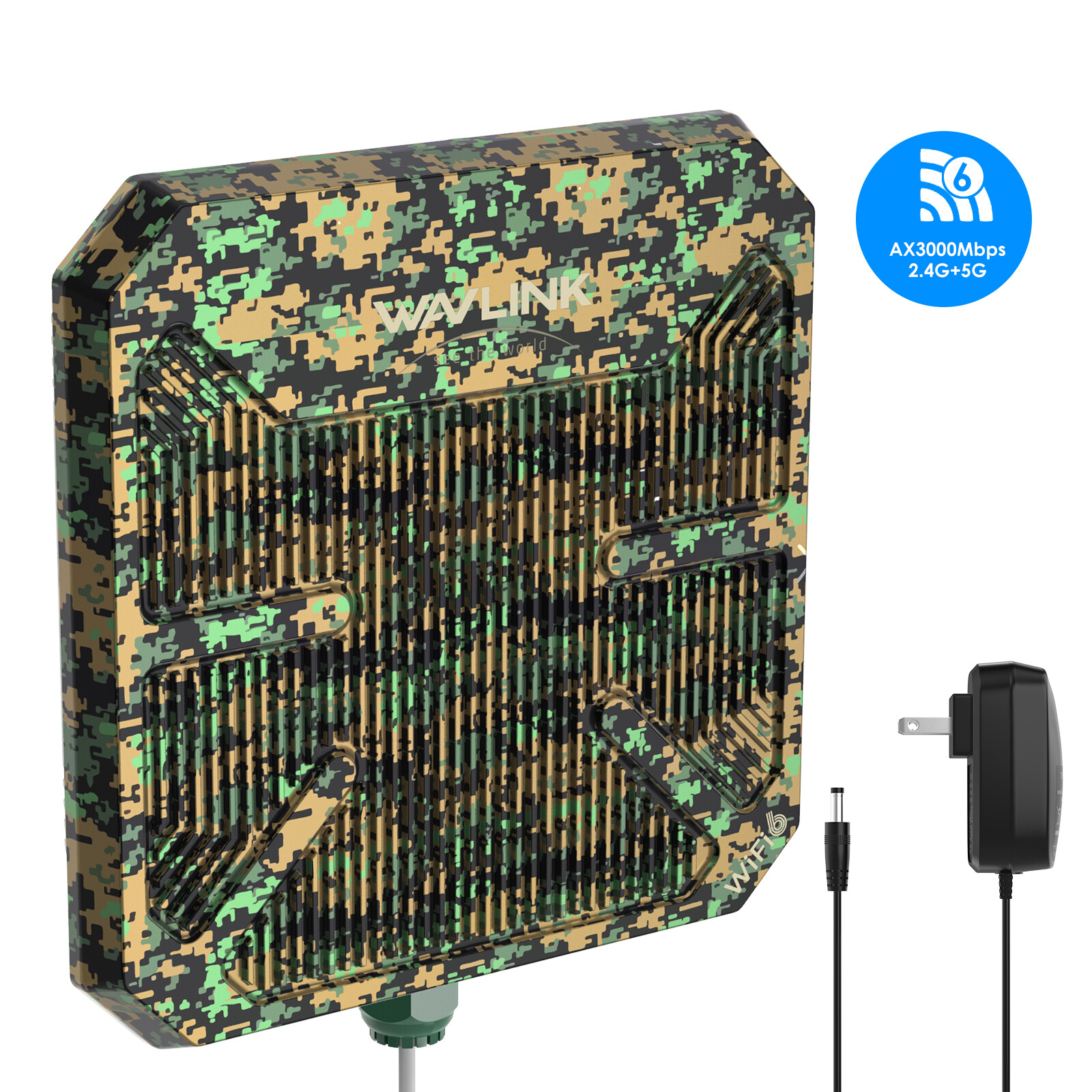

WAVLINK Professional Outdoor Access Point, Enjoy Super-Speed WiFi6 Anytime & Anywhere.WN573HP3 is a high-performance outdoor router/AP/repeater specially designed for outdoor use: Robust weatherproof case and 15kV ESD protection ensure
continuous operation and stable connection under harsh outdoor conditions; 4 x built-in 12dBi high gain antennas provide better wireless performance and super
fast transmission rates; Supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet speeds of 3000Mbps (2.4GHz 573Mbps+5GHz 2402Mbps);
Supports MU-MIMO and Beamforming technology, allowing up to 256 devices to be connected simultaneously in a wider range.【Designed for Harsh Outdoor Conditions】 IP67-rated waterproof housing that ensures continued operation on harsh outdoor environments or in climates
of extreme cold, heat or continuous moisture. Lightning protection and weatheproof design ensure stable connection in harsh outdoor conditions.
Note: The PoE part of the router is not waterproof.
【Enjoy True WiFi 6 Speed】The next generation of WiFi, complies with IEEE 802.11 ac/a/b/g/n standards. Supports dual-band maximum speed up to 5GHz
2402Mbps and 2.4GHz 573Mbps, avoiding wireless interference & congestion and offering lightning-fast Internet speed. With WAVLINK WN573HP3, you can
enjoy HD videos, smooth gaming, etc. even outdoors.
【Optional PoE Power Supply】Supports 802.3AF/AT active PoE and passive PoE, transferring data and charging the product with a single Ethernet cable,
so you can install the product outdoors where power outlet is not available. Note: The PoE converter is not waterproof. Please use CAT5E or above cable and the
length should not exceed 100m/328ft.
【Seamless WiFi Roaming】The built-in 4x12dBi directional antennas and high-power amplifiers provide extreme WiFi coverage and penetration. Also
supports Everything Mesh technology, one-click brings more device connections, greatly expanding the WiFi coverage, and eliminating every network dead zone.
【Multiple Modes, Flexible Use】Supports Mesh, AP, Router, Repeater, AP+Repeater and other modes to meet your different needs and apply to more outdoor
connection scenarios. Router/AP mode is ideal for converting wired connections into wireless networks, while under Mesh mode you can enjoy seamless WiFi with
a single network name and password.
【3Km Wireless Data Transmission】Specially designed for outdoor uses, ideal for long distance wireless data transmission over 3km/1.9miles(only for paired
PtP or PtMP transmission), tested in the barrier-free field. Built-in 12dBi directional antennas can significantly improve the transmission and reception performance
of wireless signal.
How to install the Ethernet cable?
①Pass the RJ45 cable through the waterproof connector cover.
②Screw the waterproof seal into the waterproof connector bracket.
③Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.
④Put the waterproof sealing ring on the waterproof connector bracket.
⑤Connect the RJ45 cable to WAN/LAN port.
Note: The PoE converter is not waterproof, please install it indoors. Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
How to install the product on a column?
①Stick two silicone pads on the bracket and post respectively.
②Thread the cable ties through the fixing point of the bracket.
③Fix the product to the post with cable ties.
573Mbps on 2.4G & 2402Mbps on 5G
Dual band AX3000 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and social media use,
while 5G band is ideal for video streaming or gaming.
Access More Devices
Connect up to 256 devices simultaneously, making it ideal for large spaces such as factories, communities, streets, and more.
Specification
- Model: WL-WN573HP3
- Product Size: 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight: 1050g/37oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 12dBi Directional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Features
- Supports for dual band (2.4G 573Mbps+ 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
- Supports one WAN/LAN Ethernet Gigabit port.
- Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
- Supports Router/AP/Range Extender/Mesh Router/Mesh Extender mode.
- Encryption type: OPEN,WPA2-PSK,WPA3/WPA2 MIX.
- Seamless and stable WiFi Mesh makes you enioy seamless roaming throughout the house with a single network name and password.
- Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
- Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
- Supports Fat AP Mode.
- Supports Fit AP Mode with WAVLINK AC controller.
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HP3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
⑤The real performance of the product may vary in accordance with different environmental conditions.
In the Box
- 1 × AX3000 WiFi 6 Outdoor Access Point
- 1 × 54V Power Adapter
- 4 × Cable Ties
- 1 × PoE Converter
- 2 × Silicone Pads
- 1 × Ethernet Cable
- 1 × Main Body Holder
- 1 × PWM M4×8×8MM Screw
- 1 × Wrench
- 6 × KA M4×25×6MM Screws
- 1 × Quick Start Guide
- 6 × Φ8x25MM Screw Plugs
AX1800 4×8dBi omnidirectiona
WAVLINK Professional Outdoor Router/AP/Repeater, Enjoy Super-Speed WiFi6 Anytime & Anywhere
WN573HX1 is a high-performance outdoor router/AP/repeater specially designed for outdoor use: Robust weatherproof case and 15kV ESD protection ensure continuous
operation and stable connection under harsh outdoor conditions; The 4 x 8dBi omnidirectional fiberglass tube antennas feature high strength and high precision, a long service
life and excellent wireless performance; Supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet speeds of 1800Mbps (2.4GHz 574Mbps+5GHz 1201Mbps);
Supports MU-MIMO and Beamforming technology, allowing up to 128 devices to be connected simultaneously in a wider range.
How to install antennas and Ethernet cable?
①Pass the RJ45 cable through the waterproof connector cover.
②Screw the waterproof seal into the waterproof connector bracket.
③Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.
④Put the waterproof sealing ring on the waterproof connector bracket.
⑤Connect the RJ45 cable to WAN/LAN port.
⑥Screw the connecting cable into the 2.4G and 5G antenna connector and screw up the connector.
Note: The PoE converter is not waterproof, please install it indoors. Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
How to install the product on a column?
①Stick two silicone pads on the bracket and post respectively.
②Thread the cable ties through the fixing point of the bracket.
③Fix the product to the post with cable ties.
Fiberglass Tube High Gain Antennas
4 x 8dBi omnidirectional antennas are covered by strong fiberglass tube, expanding signal coverage and withstanding harsh conditions, providing superior WiFi performance
and longer service life.
IP67 Waterproof Enclosure
Equipped with an IP67 enclosure with excellent dustproof and waterproof capabilities, this product can operate normally in rainy days, snowy days, thunderstorms, sandstorms
and other severe weather.
PoE Power Supply
Both active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.
574Mbps on 2.4G & 1201Mbps on 5G
Dual band AX1800 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and social media use,
while 5G band is ideal for video streaming or gaming.
High Power Amplifiers
Dual integrated signal boosters efficiently strengthen the wireless performance. The PA(power amplifier) increases the power output while the LNA(low-noise amplifier) minimizes
additional noises and increases the wireless signal.
Advanced WiFi Safeguard
WPA2-PSK & WPA2/WPA3-MIX wireless security protocols are supported, fully protecting your private information and keeping your WiFi connection secure at all times.
Specification
- Model: WL-WN573HX1
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(574Mbps)+5GHz(1201Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Features
- Robust weatherproof case, IP67 waterproof rating and built-in lightning arrester (15kV ESD) withstands harsh outdoor conditions.
- Supports 802.3 AT/AF active PoE and passive PoE to supply power.
- Fiberlass tube antennas for high precision, corrosion resistance, long life, strong wind resistance.
- 4x8dBi detachable omnidirectional external antennas provide excellent wireless performance.
- Supports dual band(2.4G 573Mbps+5G 1201Mbps) with combined speeds of up to 1800Mbps.
- Mesh technology makes you enjoy seamless roaming throughout the house with a single network name and password.
- Complies with IEEE 802.11 ax/ac/a/n/g/b standards.
- Supports Mesh/AP/Router/Repeater/AP+Repeater modes.
- Encryption type:WPA2-PSK, WPA3/WPA2-MIX.
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HX1 ONLY supports interconnection with WN531AX2, WN583AX1 and WN573HX1.
In the Box
1 x Wi-Fi6 Outdoor Mesh Router/AP/Repeater
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE(Optional):
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
AX3000 4×8dBi omnidirectional
WAVLINK Professional Outdoor Access Point, Enjoy Super-Speed WiFi6 Anytime & Anywhere
WN573HX3 is a high-performance outdoor router/AP/repeater specially designed for outdoor use: Robust weatherproof case and 15kV ESD protection ensure
continuous operation and stable connection under harsh outdoor conditions; The 4 x 8dBi omnidirectional fiberglass tube antennas feature high strength and
high precision, a long service life and excellent wireless performance; Supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet speeds
of 3000Mbps (2.4GHz 573Mbps+5GHz 2402Mbps); Supports MU-MIMO and Beamforming technology, allowing up to 128 devices to be connected simultaneously in a wider range.
How to install antennas and Ethernet cable?
①Pass the RJ45 cable through the waterproof connector cover.
②Screw the waterproof seal into the waterproof connector bracket.
③Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.
④Put the waterproof sealing ring on the waterproof connector bracket.
⑤Connect the RJ45 cable to WAN/LAN port.
⑥Screw the connecting cable into the 2.4G and 5G antenna connector and screw up the connector.
Note: The PoE converter is not waterproof, please install it indoors. Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
How to install the product on a column?
①Stick two silicone pads on the bracket and post respectively.
②Thread the cable ties through the fixing point of the bracket.
③Fix the product to the post with cable ties.
Fiberglass Tube High Gain Antennas
4 x 8dBi omnidirectional antennas are covered by strong fiberglass tube, expanding signal coverage and withstanding harsh conditions, providing superior
WiFi performance and longer service life.
IP67 Waterproof Enclosure
Equipped with an IP67 enclosure with excellent dustproof and waterproof capabilities, this product can operate normally in rainy days, snowy days,
thunderstorms, sandstorms and other severe weather.
PoE Power Supply
Both active and passive PoE are supported. You can install the corresponding PoE converter according to your needs. Passive PoE converter included.
573Mbps on 2.4G & 2402Mbps on 5G
Dual band AX3000 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and
social media use, while 5G band is ideal for video streaming or gaming.
High Power Amplifiers
Dual integrated signal boosters efficiently strengthen the wireless performance. The PA(power amplifier) increases the power output while the LNA(low-noise
amplifier) minimizes additional noises and increases the wireless signal.
Advanced WiFi Safeguard
WPA2-PSK & WPA2/WPA3-MIX wireless security protocols are supported, fully protecting your private information and keeping your WiFi connection secure
at all times.
Specification
- Model: WL-WN573HX3
- Product Size(without antennas): 24x24x7cm/9.4x9.4x2.8in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Antennas - 40cm/15.7in; Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight(without antennas): 1109g/39.1oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 4 x 8dBi Omnidirectional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Features
- Supports for dual band (2.4G 573Mbps+ 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
- Supports one WAN/LAN Ethernet Gigabit port.
- Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
- Supports AP/Range Extender/Mesh Router/Mesh Extender mode.
- Encryption type: OPEN,WPA2-PSK,WPA3/WPA2 MIX.
- 2x8dBi 5GHz and 2x8dBi 2.4GHz detachable omni-directional external antennas provide excellent wireless performance.
- Glass tube antenna for high precision, corrosion resistance. long life, strong wind resistance.
- Seamless and stable WiFi Mesh makes you enioy seamless roaming throughout the house with a single network name and password.
- Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
- Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Please install the product 2-3 meters above the ground for better performance.
④Under the mesh mode, WN573HX3 supports interconnection with WN586X3, WN572HP3(*Latest firmware required) and WN573HX3.
In the Box
1 x AX3000WiFi 6 Outdoor Access Point
4 x Omni Antennas
4 x Cable Ties
1 x Ethernet Cable Connectors
1 x Quick Installation
1 x Wrench
2 x Silicone Pads
Several Screws
Passive PoE(Optional):
1 x 54V Power Adapter
1 x PoE Converter
1 x Ethernet Cable
AX3000 6×7dBi omnidirectional
WAVLINK Professional Outdoor Access Point, Enjoy Super-Speed WiFi6 Anytime & AnywhereWN588HX3 is a high-performance outdoor router/AP/repeater specially designed for outdoor use: Robust weatherproof case and 15kV ESD protection ensure
continuous operation and stable connection under harsh outdoor conditions; 6x7dBi high gain antennas provide better wireless performance and super fast
transmission rates; Supports IEEE 802.11 ax/ac/a/n/g/b standards, and provides blazing-fast Internet speeds of 3000Mbps (2.4GHz 573Mbps+5GHz 2402Mbps);
Supports MU-MIMO and Beamforming technology, allowing up to 256 devices to be connected simultaneously in a wider range.
How to Install the Ethernet cable?
①Pass the RJ45 cable through the waterproof connector cover.
②Screw the waterproof seal into the waterproof connector bracket.
③Pass the RJ45 cable through the waterproof connector bracket, and screw the waterproof connector bracket into the cover.
④Put the waterproof sealing ring on the waterproof connector bracket.
⑤Connect the RJ45 cable to WAN/LAN port.
Note: The PoE converter is not waterproof, please install it indoors. Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
573Mbps on 2.4G & 2402Mbps on 5G
Dual band AX3000 provides smoother online surfing experience and stronger anti-interference capability. 2.4G band is commendable for web browsing and
social media use, while 5G band is ideal for video streaming or gaming.
Access More Devices
Connect up to 256 devices simultaneously, making it ideal for large spaces such as factories, communities, streets, and more.
Worry-Free WiFi Coverage
Enhanced by built-in high-power amplifiers and 6x7dBi omni-directional antennas to extend outdoor signal coverage up to 300m(984ft).
360-Degree Full Coverage
Integrating six 2.4G+5G cross-matrix antennas for broader and more robust network coverage, this outdoor router ensures 360-degree seamless connectivity
from all angles, allowing you to enjoy efficient and stable network experiences wherever you go.
Specification
- Model: WL-WN588HX3
- Product Size: 17x17.3x5.1cm/6.7x6.8x2in
- PoE Converter Size: 4.4x3.7x2.2cm/1.7x1.5x0.9in
- Length: Ethernet Cable - 100cm/39.4in; Power Adapter Cable - 130cm/51.2in
- Product Weight: 552g/19.5oz
- Standard: IEEE 802.11 ax/ac/a/n/g/b
- Frequency Band/Speed: 2.4GHz(573Mbps)+5GHz(2402Mbps)
- Wireless Security: WPA2-PSK, WPA2/WPA3-MIX
- Antennas: 6 x 7dBi Directional Antennas
- PAIR/RESET LED: Blue
- PoE Converter Status LED: Green
Features
- Supports for dual band (2.4G 573Mbps+ 5G 2402Mbps) with the aggregated speeds up to 3000Mbps.
- Supports one WAN/LAN Ethernet Gigabit port.
- Complies with IEEE 802.1 ax/ac/n/g/a/b standards.
- 3x7dBi 5GHz, 3x7dBi 2.4GHz detachable omni-directional external antennas provide excellent wireless performance.
- Supports Router/AP/Range Extender/Mesh Router/Mesh Extender mode.
- Encryption type: OPEN,WPA2-PSK,WPA3/WPA2 MIX.
- Seamless and stable WiFi Mesh makes you enjoy seamless roaming throughout the house with a single network name and password.
- Robust weatherproof case and IP67 waterproof grade withstand harsh outdoor conditions.
- Supports 802.3 AT/AF Active PoE and Passive PoE to supply power.
- Supports Fat AP Mode.
- Supports Fit AP Mode with WAVLINK AC controller.
Warm Tips
①The PoE converter is not waterproof, please install it indoors.
②Please make sure your Ethernet cable is CAT5E or above certified and shorter than 100m/328ft.
③Under the mesh mode, WN588HX3 supports interconnection with WN586X3, WN583AX3 and WN573HX3.
④The real performance of the product may vary in accordance with different environmental conditions.
In the Box
- 1 × AX3000 WiFi 6 Outdoor Access Point
- 4 × Plastic Cable Ties
- 1 × Main Body Holder
- 6 x 7dBi Antennas
- 1 × Wrench
- 1 × 54V Power Adapter
- 1 × PoE Converter
- 1 × Ethernet Cable
- 1 × PWM M3×5×6MM Screw
- 6 × KA M3×20×5.2MM Screws
- 6 × Φ6.5x25MM Screw Plugs
- 1 × Quick Start Guide
AC1200 4×7dBi omnidirectional
WAVLINK AC1200 Outdoor Mesh WiFi AP/Router/Repeater/Extender: Conquer Extreme Terrains & Scale Networks EffortlesslyUnlock the full potential of outdoor Wi-Fi with the WAVLINK WN572HP3-B/WING 12HP, a powerhouse of a router that transforms your surroundings into a seamless
, industrial-strength WiFi ecosystem. Supports Fit AP Mode and Everything Mesh technology, this wireless access point is the perfect solution for expansive properties,
contractors overseeing multiple sites, and smart cities launching public Wi-Fi initiatives - delivering blazing-fast, reliable, and far-reaching connectivity that redefines the
boundaries of wireless networking.
Parental Control
Take charge of your family's screen time with granular parental controls: Set custom schedules or filter risky websites without resetting routers manually.
Guest WiFi
Safely share your internet with Airbnb guests, farmstay visitors, or wedding party attendees, while keeping your private network, smart devices, and sensitive data fully isolated and protected.
Default Parameters
5G SSID: WAVLINK-AC_XXXX
2.4G SSID: WAVLINK-N_XXXX
Default IP: 192.168.30.1
Login: wavlink
Default Password: admin
Specifications:
- Model: WL-WN572HP3-B/WING 12HP
- Frequency: 2.4GHz & 5GHz, speed up to 1,200Mbps
- Interfaces: 1x 10/100/1,000Mbps WAN, 1 x 10/100/1,000Mbps LAN
- Antennas: 4 x 7dBi omni antennas
- Operation modes: Repeater, AP(FAT/FIT), Mesh Router, Mesh Extender
- IP65 Waterproof: 15KV ESD and 4KV lightning protection
- Security: WPA2-PSK, WPA1-PSK/WPA2-MIX, WPA3-SAE/WPA2-PSK, WPA/WPA2-Enterprise, Open.
- LEDs: 7 x status LED indicators
- Power adapter: 100-240V/50-60HZ; DC 54V(Active PoE and Passive POE)
- Support 802.3 AT/AF Active PoE and Passive PoE to supply power.
- Support Fat AP Mode.
- Support Fit AP Mode with WAVLINK AC controller.
- Distance: Outdoor 300m(Change with the actual environment)
- Unit Size(without antennas): 21.5cm x 6.2cm x 6.2cm/8.5x 2.4x 2.4in (L x W x H )
- Antenna Length: 25cm/9.8in
Warm Tips
1. The PoE converter is not waterproof, please install it indoors.
2. Please make sure your Ethernet cable to the outdoor router is CAT5E or above certified and shorter than 100m/328ft.
3. Please install the product 2-3 meters above the ground for better performance.
4. Select the wireless network with a signal strength greater than 70% to get the most reliable connection.
5. Under Mesh Mode, the repeater supports max. 10 nodes(including the host devices).
In the Box
- 1 x AC1200 Wireless Outdoor Access Point
- 4 x Omni Antennas
- 1 x RJ-45 Networking Cable
- 1 x Power Adapter
- 1 x PoE Converter
- 1 x Main Body Holder
- 2 x Cable Ties
- 1 x Screw Fittings
- 1 x Quick Start Guide
