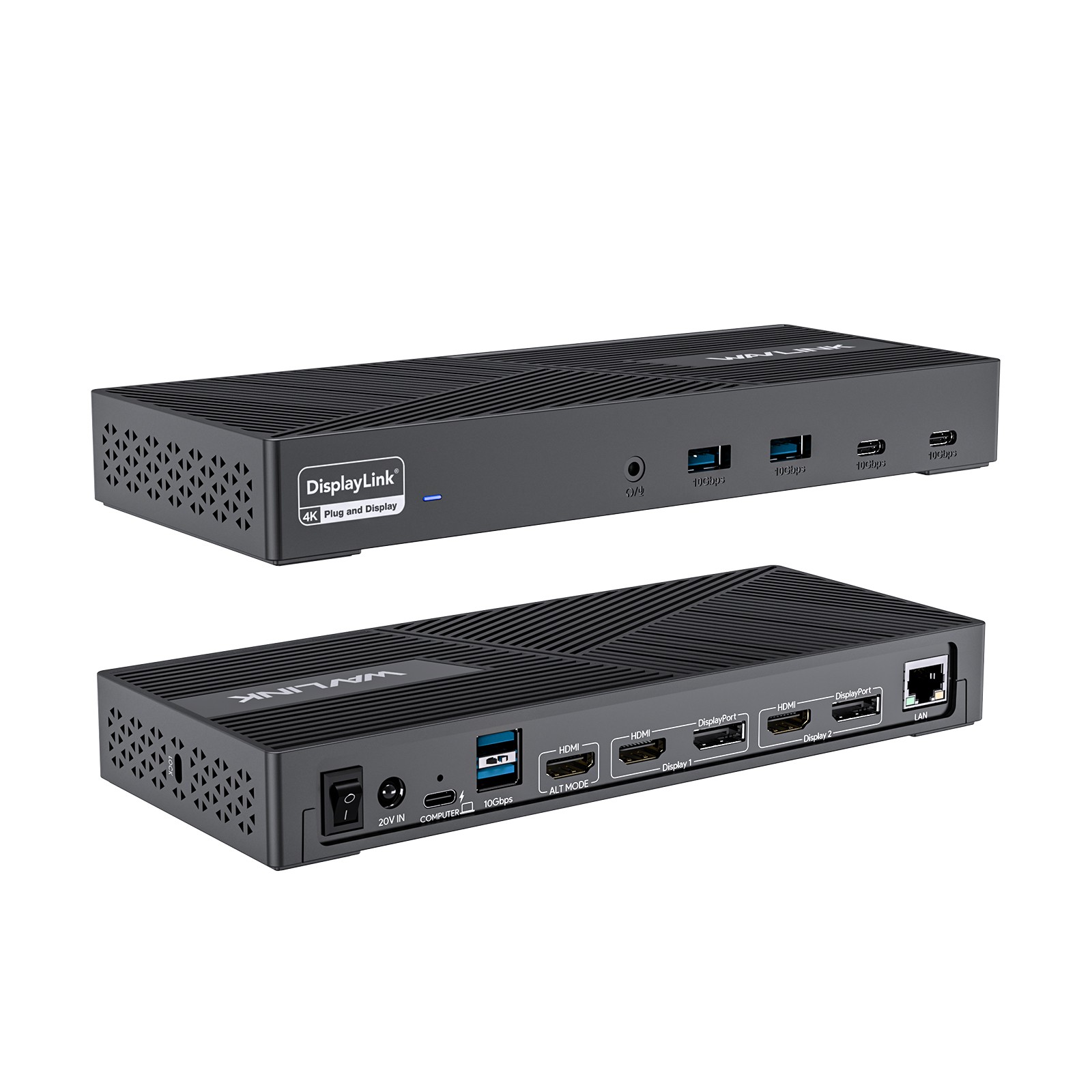

Wavlink 15-In-1 Triple 4K Display Universal DisplayLink Docking Station with Elegant Shell Design
This Universal Displaylink Triple 4K Display Docking Station works seamlessly with your full-function type-c laptops,
supports mirroring/expanding up to three external displays, and enables connectivity to your wired network and
other accessories. You can easily add triple 4K@60Hz displays with 2x DisplayPort and 3x HDMI ports.
Supports 100W charging your laptop and features full 6xUSB3.1 Gen2 ports which support high speed up to 10Gbps.
Thanks to a 160W power adapter that can be fully sufficient for docking and laptop charging,
you can reduce the clutter of your workstation and no longer need to carry an extra power adapter when traveling or in the office.
Multiple video interfaces make the dock a versatile and powerful tool for users in various industries.
Whether you're working with graphics-intensive applications or simply need a reliable docking station for
day-to-day computing tasks, the Wavlink docking station is an excellent choice:
①HDMI( Alt.Mode) Port for Video Editing/ Online Gaming:
--The HDMI(Alt.Mode) allows for high-intensive tasks processing, is particularly well-suited for video editing and
online gaming, making it ideal for large software applications.
②Display 1/2(Chipset: DisplayLink 6950): HDMI /Displayport for Document Processing & Web Browsing
--For document processing and web browsing, DisplayLink 6950 chipset-based interfaces, such as HDMI 1/Displayport 1
and HDMI 2/Displayport 2, are recommended. These interfaces provide high-quality graphics and a smooth user experience,
even when working with multiple windows or applications simultaneously.
Unlock the Full Potential of Your MacBook Neo
Native support for just one external monitor can hold your MacBook Neo back—but with the WAVLINK DisplayLink Docking Station,
that limitation disappears. Expand your view with dual 4K displays, giving you a sprawling workspace for seamless multitasking and
a dramatically smoother workflow. And the upgrade doesn’t stop there. Loaded with a full suite of high-speed ports,
WAVLINK transforms your MacBook Neo into a true productivity powerhouse—more connections, more flexibility,
and an all-around elevated experience.
USB-C Power Delivery
With included 160W power adapter, USB-C(host) supports up to 100W charging your laptop and 60W for
powering all downstream devices as well as other peripherals.
1000/100/10Mbps Ethernet
RJ45 Gigabit Ethernet port provides high-speed and stable wired networks, backwards compatible with 10/100/1000Mbps,
allowing you to connect to faster networks, routers, and NAS devices.
Transfer Files in Seconds
Connect to either of the USB 3.1Gen2 Type-A ports and Type-C ports for different needs,
support file transfer speed at up to 10Gbps, ultra time-saving and efficient for data transmission.
2-In-1 Audio & Mic
Connect a microphone, headphones or mini stereo to this audio out & mic in port when accessing audio files or
needing to speak, which can make listening, talking or recording a breeze.
Security Lock Hole
Supports the connection of Kensington lock, which secures the devices and important data from theft to
keep your properties/data safe. (Kensington lock is not included).
Anti-slip Pads Protection
The non-slip rubber pads on the bottom help the docking station stay stable in place and free from any sliding effects,
quite thoughtful to provide you with a better experience.
Compatible Systems
-Windows 11/10/8.1/8/7/XP/Vista
-Mac OS 10.14-13.x and latest
-Chrome OS, Ubuntu, Android and Harmony OS
Specification
1.Ports: 1x DC Jack, 1x USB-C(upstream), 2x Displayport, 3x HDMI, 1x RJ45, 1x 4-Pole Phone Jack, 2 x USB-C 3.1, 4 x USB-A 3.1
2.Unit Size: 22.3x9.1x2.9cm/8.7x3.6x1.1in( L x W x H )
Package Size: 28.1x13.7x7cm/11x5.4x2.8in( L x W x H )
3.USB-C to C Cable Length: 100cm/39.4in
Power Adapter Cable Length(plug end): 150cm/59in
Power Adapter Cable Length (round port end): 110cm/43in
4.Unit Weight: 378g/13.3oz
5.Housing Material: Plastic
6.Shell Color: Black
7.LED Indicator Color(Docking Station): Blue
LED Indicator Color(Power Adapter): Blue
In the Box
1x USB-C Triple 4K Display Universal Docking Station
1x USB-C to C Cable (E-Mark Chip)
1 x 20V/8A 160W Power Adapter
1 x Quick Start Guide
1 x Driver Link Card
Multiple Display Resolution
①Single Display(Max. Resolution)
Under DP1.2 Source: HDMI(Alt Mode): 3840x2160@30Hz ; Display1/2(HDMI/DisplayPort): 3840x2160@60Hz;
Under DP1.4 Source: HDMI(Alt Mode): 3840x2160@60Hz ; Display1/2(HDMI/DisplayPort): 3840x2160@60Hz.
②Dual Display(Max. Resolution)
a. HDMI(Alt Mode)+ Display1/2(HDMI/DisplayPort):
Under DP1.2 Source: 3840x2160@30Hz+ 3840x2160@60Hz;
Under DP1.4 Source: 3840x2160@60Hz + 3840x2160@60Hz.
b. DP1.2/1.4 Source: 3840x2160@60Hz+ 3840x2160@60Hz.
③Triple Display(Max. Resolution)
HDMI(Alt Mode) + Display1(HDMI/DisplayPort) + Display2(HDMI/DisplayPort):
Under DP1.2 Source: 3840x2160@30Hz+ DP1.4 Source: 3840x2160@60Hz+ Tips
- Please confirm that the type-c port of your laptop supports charging and video output,
or the docking station's host charging function and HDMI (Alt. Mode) port may not work.
- Please follow the instructions to download the latest DisplayLink driver from the official website before use.
ONLY plug and play for Chrome OS, Windows 10/11.
- Please keep connected to the power supply when using this docking station (power adapter included in the package).
- Only one video port can be used in the same video stream (Display1/Display2), either a "DisplayPort" or a "HDMI".USB-C Host Devices Compatibility List(Partial):
Note: Please check the compatibility list below before purchasing. If your laptop is not on the list,
please let us know and we will be happy to help you check if the docking station is compatible with your device.
Apple: MacBook iMac (2017/2018/2019/2020/2021);
MacBook Air (2018/2019/2020/2022) ;Mac Studio 2022;MAC mini 2018/2020
Microsoft:Microsoft surface Book 2/Microsoft surface Book 2/surface go/surface go 2/surface laptop 3/
surface laptop 4 /surface laptop go/ surface pro 7/surface pro XHP: Spectre 13/specter x369/x360 15/spectre x360 13t/spectre folio (13t-ak000cto); elitebook 840 g5 series/elitebook 840 g6/
elitebook 850 g5/elitebook x2/elitebook 745 g6/elitebook 830 g6/elitebook x360 1030 G3/2018 HP elite 800 G4;
envy geforce mx250/envy-17t/envy x360 (15z-ds100); GTX 4 Pro15.6/Zbook 15u G3/Zbook 17 G4/Zbook 14u g6/Zbook 16 G6/
Zbook studio z5; Omen laptops; probook 440 g7/probook 450 g5/probook 450 g7/probook 650 g5; ENVY Laptop 13-aq1/
ENVY x360 Convertible 15-ds1xxxDell: xps13/xps 13 9365/xps 13 9300/xps15/xps 15 2018/xps 9380/5590; latitude 2-in-1/5310 2-in-1; Inspiron 14 7000 series 2-in-1(7405)/15 7000 series 2-in-1/Inspiron 7373;
precision 7730/7750/7520/5550/5540Asus:Ling Yao 3, Ling Yao 3PRO, Ling Yao X Series, U306/U321 Series, U4100ROG, U5100UQ Series zenbook flip ux370u/
TUF Gaming A15 Laptop/Zephyrus G14/rog GX501/zenbook ux434f/zenBook 14 UX433FARazer：Blade stealth Spirit Blade, Spirit Blade Sneak EditionGoogle：ChromeBook Pixels, PixelBook Pen ......(Not a full list)Lenovo：Lenovo yoga c740; Yoga5 Pro, Lenovo Xiaoxin Air 12-inch, Mlix 720, Thinpad-X1, ThinkPad T480,
Thinpad-X390, Yogo720/730, C930; Lenovo Thinkpad T490s; X280; Lenovo T570; Lenovo T14MI: Air12.5/13.3 inches, Pro15.6 inches, millet game bookAcer: aspire5 2019/d17w3 aspire c24-865/Swift 1 laptop/swift 7 sf714-52t-75r6 laptop
Others: Alienware : latest Series/alienware 17 r5; MSI : GT76 Titan/MSI B450M Mortar motherboard; Razer Blade 2017 (gtx 1060);
LG Gram 17 laptop, Philips PHL 328E9Q.; Pixel book go 2019/2020
