Allows the installation of four M.2 NVMe PCIe SSDs in a single enclosure connected to the computer via a Thunderbolt 40 Gbps (or USB4 40G) interface. It offers two distinct operating modes: direct access to SSD data from a computer or autonomous cloning of one SSD to three other SSDs without requiring a connection to a PC.
Compatible with all common M.2 formats, it is a solution suitable for backup operations, mass duplication, system migration, SSD testing, computer laboratories and professional environments requiring high-speed NVMe PCIe Gen3 and Gen4 SSD compatible.
Compatible M.2 M or B+M SSD type NVMe, formats 2230, 2242, 2260, 2280 and 22110.
Not compatible with M.2 SATA SSDs.
Maximum capacity of 8 TB per SSD, or 32 TB in total.
Compatible with Windows 10/11, MacOS, Linux...
Thunderbolt 3/4/5 compatible.
Technical description:

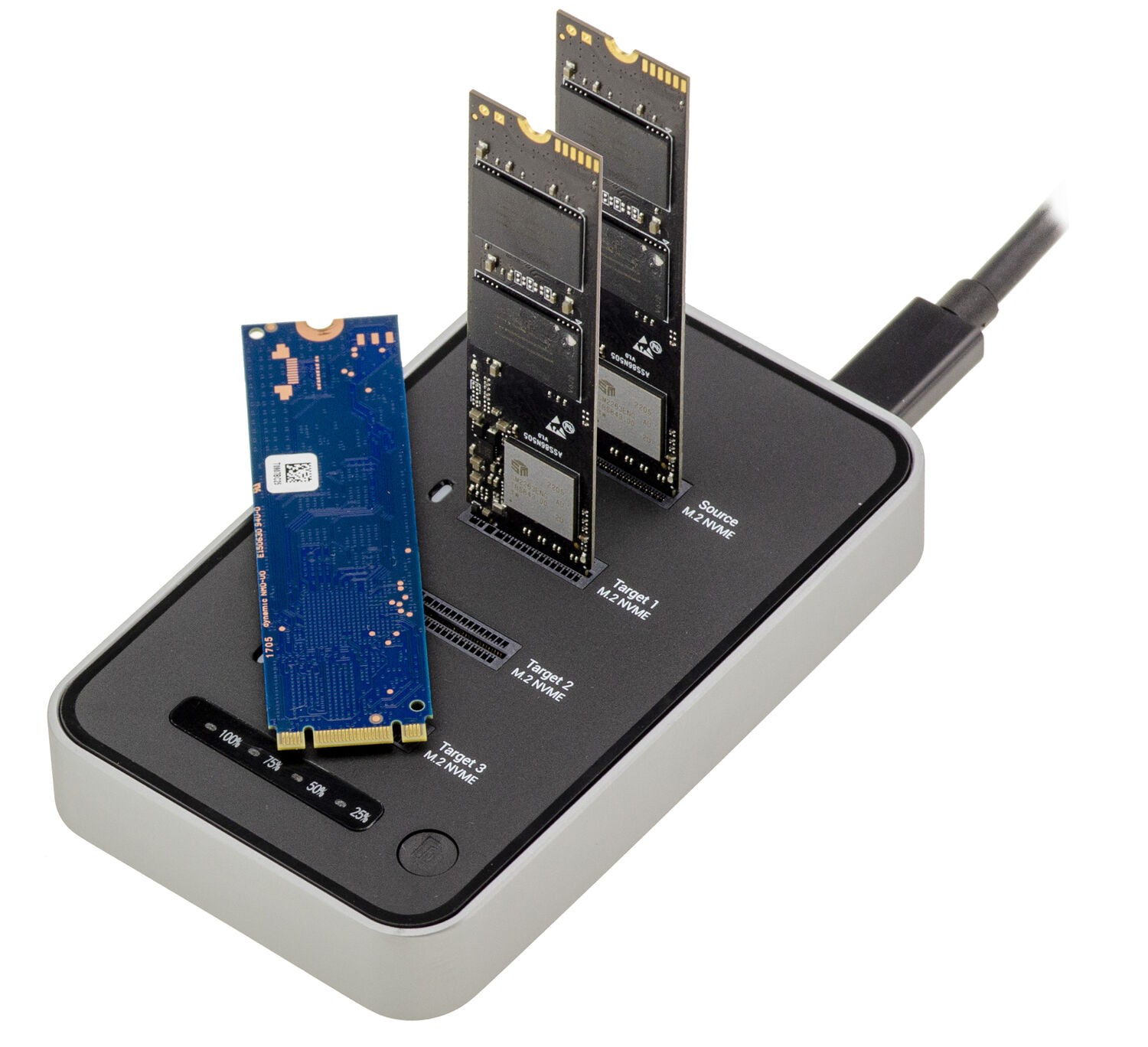

External docking station for 4 M.2 NVMe SSDs.
USB4 40G or Thunderbolt 3/4/50 Gbps host interface.
High-speed 40 Gbps USB-C cable included.
Controller supporting simultaneous access to four SSDs.
External power supplied 12V 3A.
Dimensions: 115 × 75 × 20mm.
Weight: 245 g (excluding power supply), aluminum structure.
Function 1: Data access
When connected to a computer, the station allows simultaneous access to all four installed SSDs. Each media is detected independently by the operating system, allowing read, write, backup, software cloning or file transfer operations.
Maximum aggregate throughput up to 40 Gbps via USB4 or Thunderbolt.
Maximum throughput up to 16 Gbps for a single SSD depending on the SSD used and the host platform.
Support for NVMe PCIe Gen3 and Gen4 SSDs.
Compatible with SMART and TRIM functions when supported by the operating system.
Function 2: Standalone offline cloning
The station has a hardware mirroring function to copy content from a source SSD to up to three target SSDs simultaneously without a computer.
Standalone operation without connection to a PC.
Simultaneous cloning of one source SSD to three target SSDs.
Sector by sector duplication.
Ideal for mass deployment, backup and duplication operations.
Progress indication by indicator lights 25/50/75 and 100%.
Start cloning via integrated dedicated button.
A carrying case for 4 M2 SSDs in 2280 format is offered with the dock.
Allows the installation of four M.2 NVMe PCIe SSDs in a single enclosure connected to the computer via a Thunderbolt 40 Gbps (or USB4 40G) interface. It offers two distinct operating modes: direct access to SSD data from a computer or autonomous cloning of one SSD to three other SSDs without requiring a connection to a PC. Compatible with all common M.2 formats, it is a solution suitable for backup operations, mass duplication, system migration, SSD testing, computer laboratories and professional environments requiring high-speed transfers. When connected to a computer, the station allows simultaneous access to all four installed SSDs. Each media is detected independently by the operating system, allowing read, write, backup, software cloning or file transfer operations. The station has a
