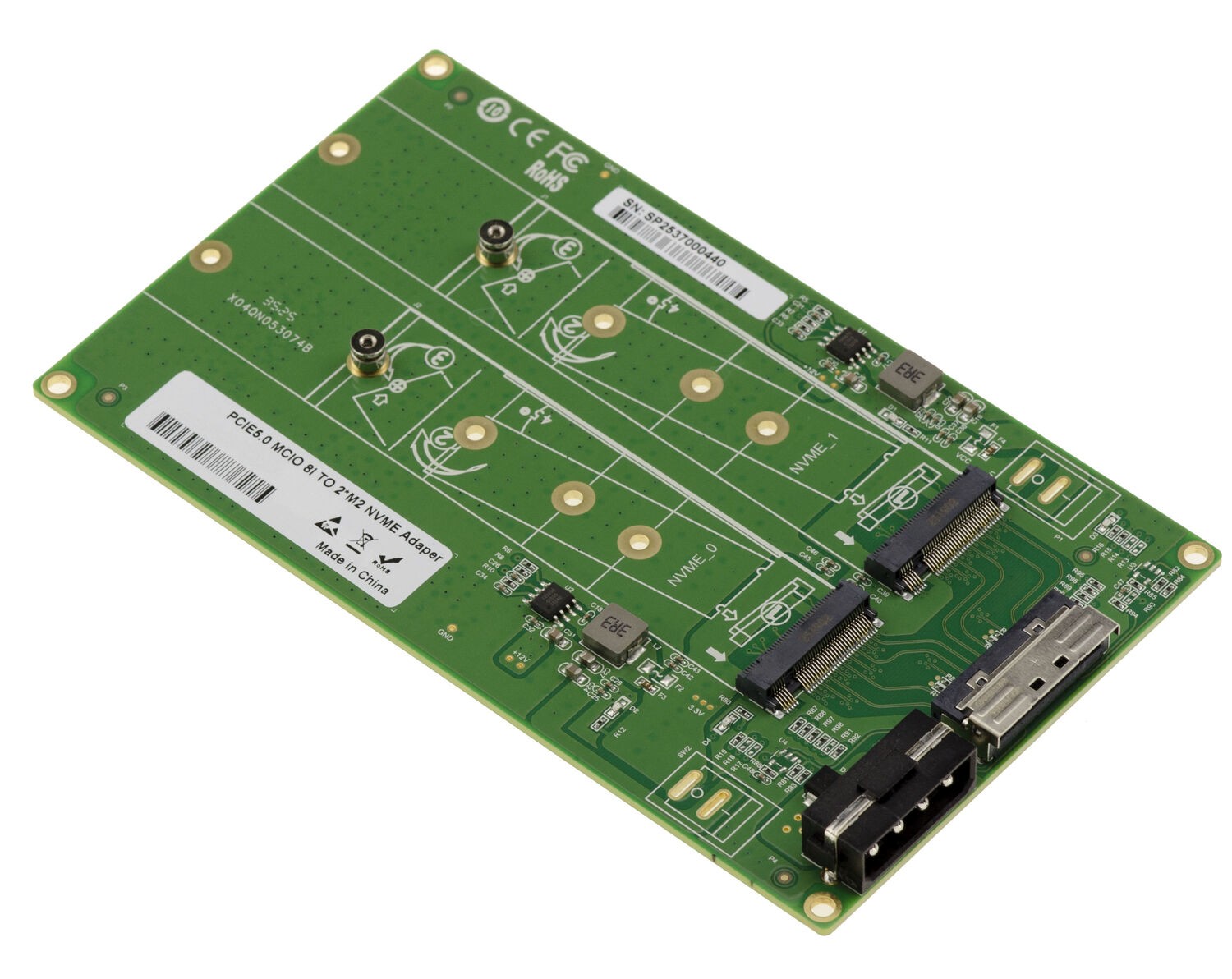

MCIO 8i (Mini CoolEdge IO) adapter to 2 M.2 Gen5 NVMe SSD slots. Allows you to add M.2 SSDs from an available MCIO port on the motherboard. The module uses Gen5 compliant connectors and ultra-low loss PCBs.

Compatibility:
The plate has 2 M.2 connectors (75 pin M key, PCIe x4) for M2 SSD format 2230/2242/2260/2280 or 22110.
Each SSD is connected to a PCIe Gen 5.0 x4 host interface (i.e. an authorized throughput of 16GB per M2 port).
To be used connected to a motherboard whose BIOS must support PCIe bifurcation mode.

Features :
Support for 2 NVMe M.2 PCIe 5.0 SSDs.
Compatible with several SSD formats: 2230, 2242, 2260, 2280, 22110.
Features a 4-pin power connector, accepting 12V or 5V input.
Requires a motherboard or expansion card with an MCIO (x8) port that supports PCIe bifurcation.
MCIO-8i 74 pin connector.
Operating temperature 5 to 50°C.
Dimensions: 145mm x 85mm.
Weight 56gr.
Supplied with hardware for fixing SSDs.
