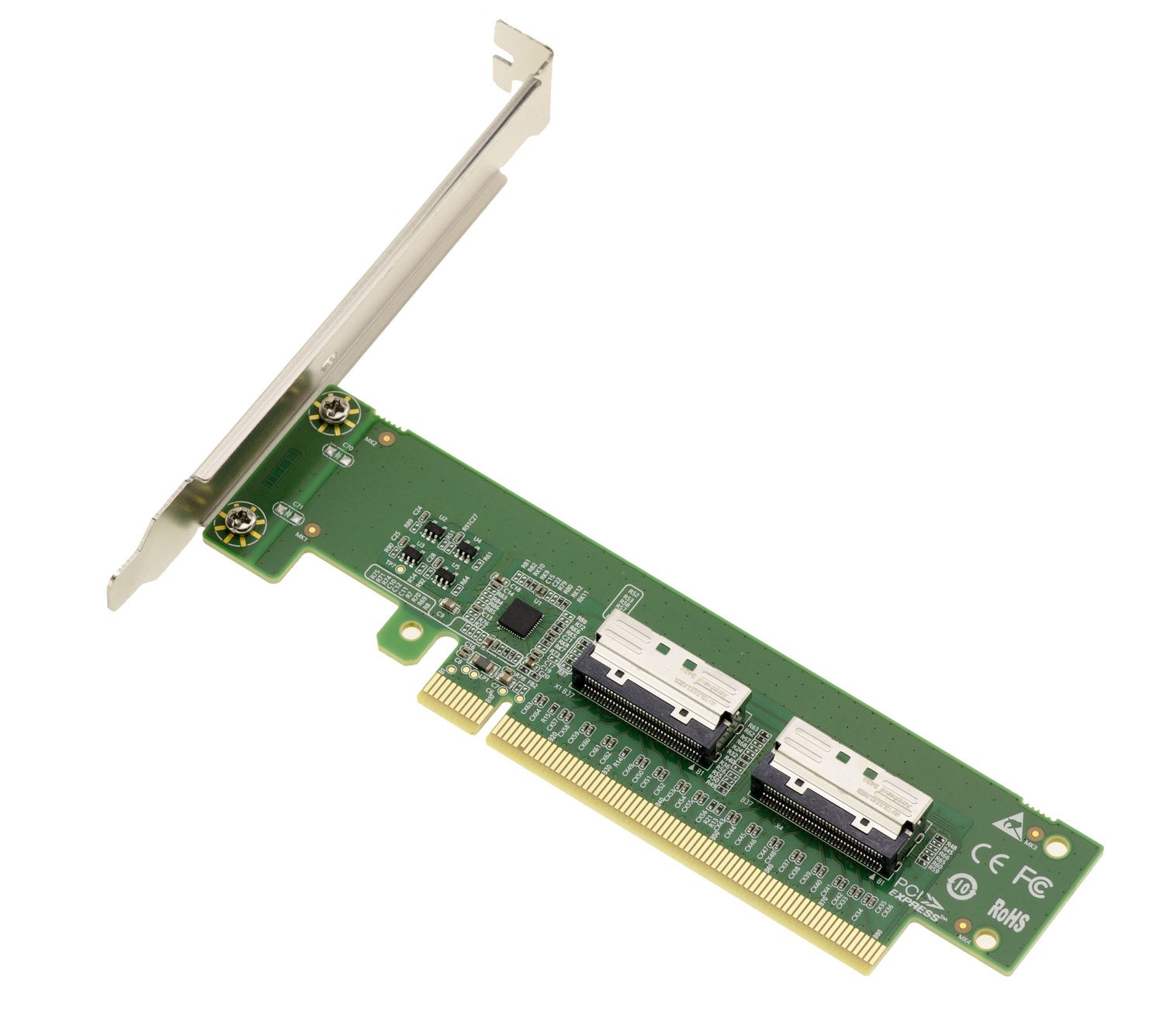

High performance low dielectric loss interface conversion board. For NVMe SSD or PCIe connectors via two 74-pin MCIO 8i connectors. Supports up to 4 PCIe or NVMe SSD devices.

Compatibility:
The adapter does not require a driver for operation or communication with connected NVMe drives. The drives are presented natively to the host and use native NVMe drivers.
Compatible with Windows, Mac, Linux, DOS....

Features :
PCIe 5.0 x16 type card.
Compatible with PCIe Gen5, Gen4, Gen3, Gen2, Gen1.
Card bandwidth is the bandwidth that the motherboard's PCIe slot can support.
Two MCIO connectors (74 Pin, x8 PCIe Gen 5).
Supports up to 4 PCIe or NVMe SSD devices if motherboard supports bifurcation mode (x16) to 2x (x8) or 4x (x4).
Support for a single NVMe or PCIe device if bifurcation mode is not supported.
Direct connection to NVMe U2 or U3 SSD via MCIO 8i to SFF-8639 cable.
Operating temperature 5 to 50°C.
Dimensions 146.5mm x 39.4mm, weight 70.5g.
Card Supplied with High and Low profile brackets.
