For DESKTOP PC or server on PCIe 4x port. Compatible with all MAXI 2.5 Gigabit networks.
COMPATIBLE 10M 100M 1G ME,98SE, 2000, XP, Vista, 7, 8, 10, 11 32-/64-bit, Windows Server (including Server 2025), Free BSD, Linux, VMWare, MAC.
Features :

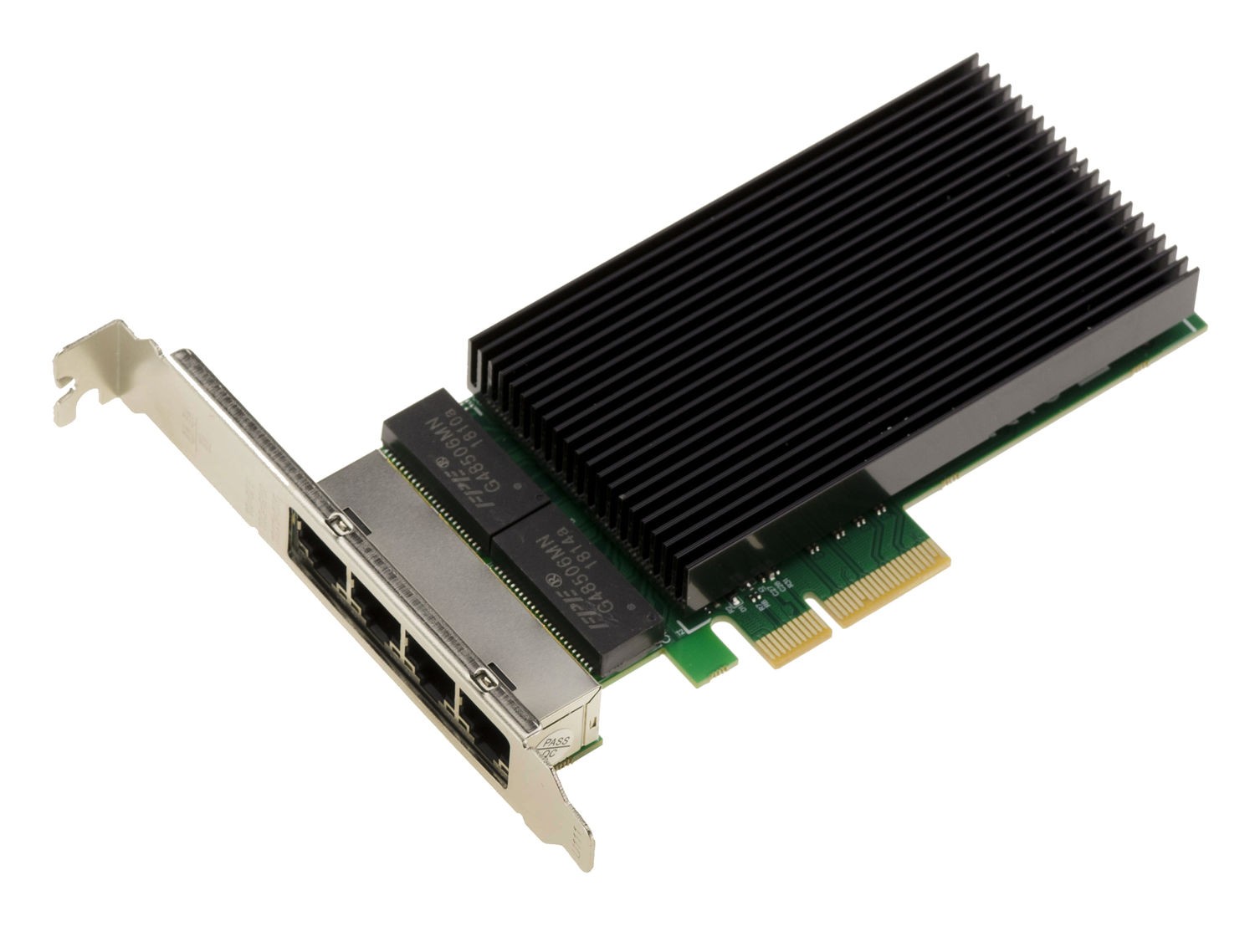

Chipset: 4 INTEL I226 (SRKTU) chips with PLX bridge.
PCIe 3.1 (5GT/s) x4 format card, compatible with x4, x8 and x16 ports.
MDI Ethernet interface (RJ45 copper) standard IEEE802.3 up to 2.5 Gb/s.
Complies with MDI IEEE802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE applications (IEEE802.3bz, IEEE802.3ab, IEEE802.3u and IEEE802.3).
Flow control support compliant with IEEE802.3x and IEEE802.3z standards with software-controllable RX thresholds and TX pause frames.
Automatic crossing detection function (MDI/MDI-X).
IEEE 1588 protocol and 802.1AS implementation.
Support for time-sensitive networking (TSN) capabilities.
Support for IEEE802.3az-Energy Efficient Ethernet (EEE).
Full Wake-On-Lan support.
Offloading TCP/UDP and IPv4 checksums (Rx/Tx).
Transmission Segmentation Offload (TSO) (IPv4, IPv6).
Support for packages up to 9.5 KB Jumbo Frames.
Card delivered with high and low profile brackets.
For DESKTOP PC or server on PCIe 4x port. Compatible with all MAXI 2.5 Gigabit networks. Windows ME,98SE, 2000, XP, Vista, 7, 8, 10, 11 32-/64-bit, Windows Server (including Server 2025), Free BSD, Linux, VMWare, MAC. PCIe 3.1 (5GT/s) x4 format card, compatible with x4, x8 and x16 ports. MDI Ethernet interface (RJ45 copper) standard IEEE802.3 up to 2.5 Gb/s. Complies with MDI IEEE802.3 Ethernet interface for 2500BASE-T, 1000BASE-T, 100BASE-TX, 10BASE-TE applications (IEEE802.3bz, IEEE802.3ab, IEEE802.3u and IEEE802.3). Flow control support compliant with IEEE802.3x and IEEE802.3z standards with software-controllable RX thresholds and TX pause frames. Support for time-sensitive networking (TSN) capabilities. Support for IEEE802.3az-Energy Efficient Ethernet (EEE). Transmission Segmentation Recommended products Provided by KALEA-INFORMATIQUE PCIe 2.5G x2 2-Port Gigabit Ethernet RJ45 LAN Card Intel I226 View product KALEA-INFORMATIQUE PCIe 2.5G Network Controller Gigabit Ethernet RJ45 INTEL I226 View product Industrial PCIe x4 Network Card 4 Ports RJ45 LAN GIGABIT ETHERNET INTEL 82574 View product KALEA-INFORMATIQUE PCIe Dual LAN Gigabit Ethernet RJ45 10/100/1000Mb Intel 82571 View product PCIe X4 Dual 10 Gigabit Ethernet Network Card 2 RJ45 Ports 10G - AQC107 ASM1182 View product KALEA-INFORMATIQUE M2 Network Controller Card 2-Port 10G RJ45 LAN Intel X550 View product 4-Port Gigabit RJ45 LAN Ethernet Card for LENOVO Tiny5 M720Q M920Q M920X P330 View product KALEA-INFORMATIQUE PCIe 2-Port RJ45 Gigabit Ethernet LAN Card Realtek RTL8111 View product Related keywords intel pcie intel i226 i226 sfp rj45 ethernet card pcie network card intel network card pci ethernet card i226 4 port pcie ethernet pcie nic rj45 sfp lan card network card pcie pcie x4 intel ethernet card intel pcie network card intel 2.5 nic intel 226 intel gigabit pcie pci lan card dual port ethernet pcie intel i226 v intel i226 v 2 5g pcie gigabit ethernet pcie intel pcie ethernet 2 5gb pcie gigabit ethernet pcie card Provided by
