Log-Periodic Dipole Array Antenna LPDA for Enhanced Signal Reception, 5-1000MHz
Price: US $75.99

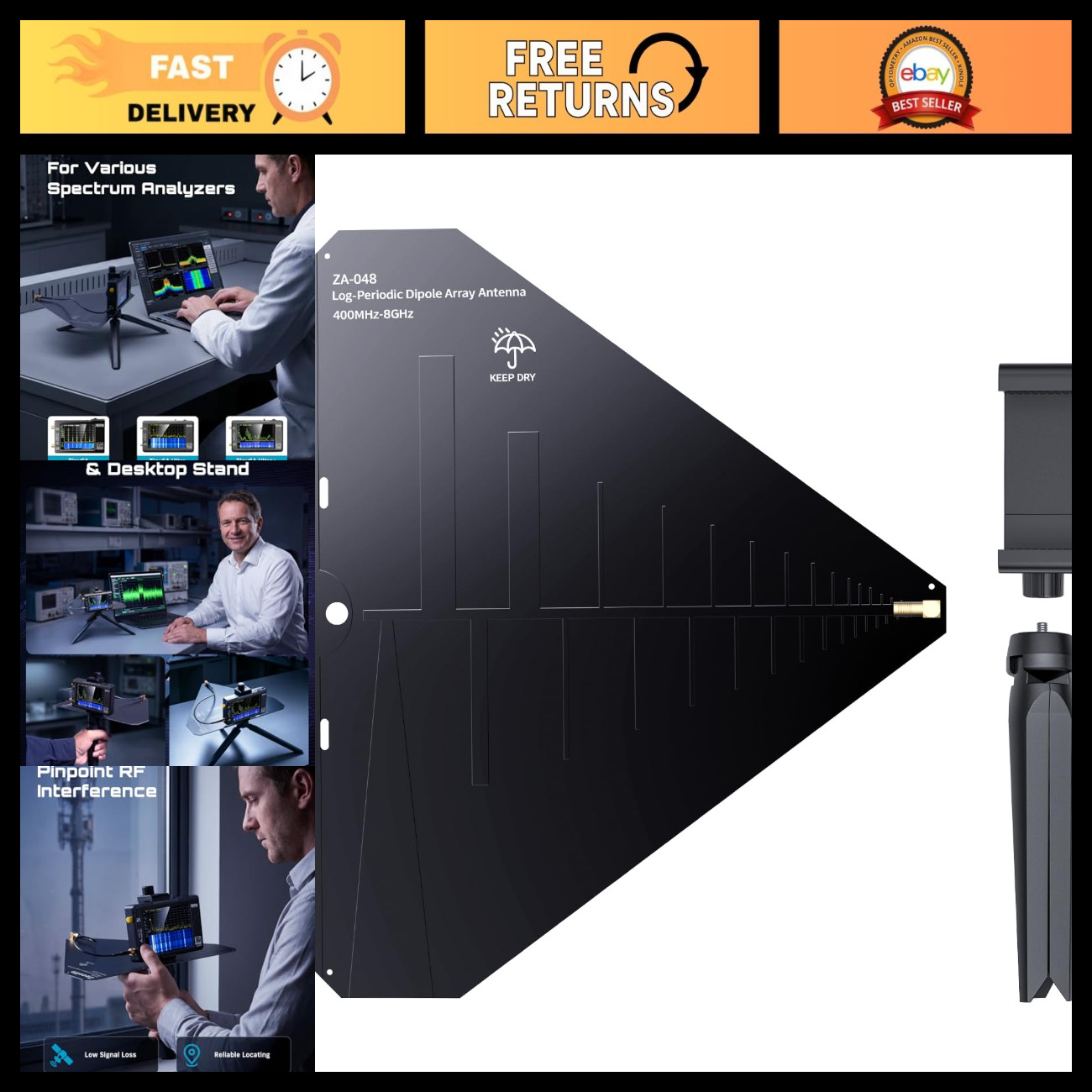

ZA-048 Log-Periodic Antenna
The ZA-048 is a cutting-edge printed Log-Periodic Dipole Array (LPDA) antenna, designed with optimized techniques to significantly reduce its size. This makes it perfectly compatible with various spectrum analyzers and ideal for radio direction finding within the 1 GHz to 8.5 GHz frequency range.
Key Features:
Wide Frequency Range: Operates within an ultra-wide band of 400 MHz to 8 GHz, providing continuous coverage from low to high frequencies.
Impedance & VSWR Characteristics: Nominal input impedance of 50Ω, with return loss around 10dB or lower above 1 GHz and approximately 4.5dB or lower between 400 MHz and 1 GHz.
Direction-Finding Performance: Excellent sensitivity for locating signal sources, ideal for applications requiring moderate precision.
Stable Tripod Bracket: Features a sturdy tripod support structure with an adjustable clamp compatible with various TinySA models, ensuring a professional setup for RF signal direction finding.
Portable and Compact Design: Lightweight and easy to carry, perfect for outdoor mobile testing and on-the-go use.
Benefits:
Meets the demand for wide-band RF directional reception.
Adapts to most RF detection and direction finding application scenarios.
Stable enough for stationary desktop testing while remaining portable for mobile use.
