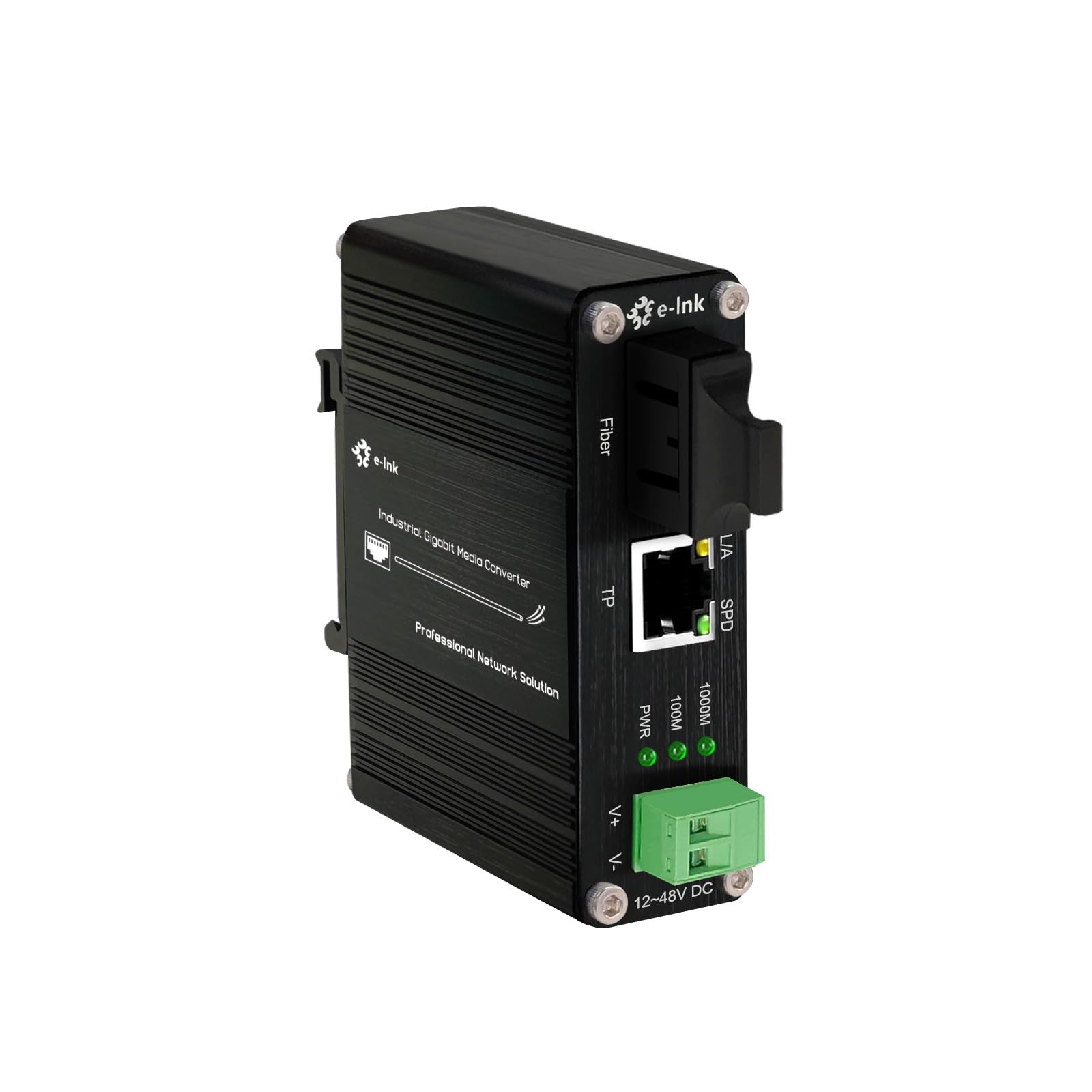

Features:

1-port 10/100/1000BASE-T RJ45 with auto MDI / MDI-X function, Supports Full/Half-duplex, Auto-negotiation

Build-in SC fiber module,100Base-FX or 1000Base-XSinglemode (auto detection), support both gigabit and fast Ethernet

12~48VDCTerminal Block Power Input

Supports Link Fault Pass Through

9K Bytes Jumbo Frame

Supports DIN-Rail & Wall-mount installation

Environmentally hardened -40°C to 75°C (-40°F to 167°F) operating temperature

Specifications:

Processing Type:-and-Forward

Standard:IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet

Packet Buffer Memory:1Mbit

MaxPacket Length:9K Bytes.

Address Table Size: 2048K MAC Addresses

Ethernet Port: RJ45 10/100/1000Mbps Gigabit Ethernet

Optical Port:SC- 100/1000M adaptive

Wavelength: 1310nm

Transmission distance: Singlemode Dual-fiber 12.43Miles (20km)

CasingMaterial:AluminumCase

Power consumption: <5W

Mini Size(WxDxH):3.74x2.76x1.18in (95x 70x 30mm)

Note:If you have any questions or find the media converter can’t use, please us. Our professional technical staff will teach you how to use or help you find the reason and solve it.

Package:

Mini Industrial Ethernet Media Converterx1

Fiber Media ConverterUser’s Manual

Auto Detection 100/1000Base-FX – The SC port support 155Mbps or 1.25G SC module, it means you can use other device with 100M or 1000M fiber port on the other side.
