Product Features •Single fiber bi-directional data links asymmetric TX 1244Mbps / RX 2488Mbps GPON ONU
application with GPON MAC
function.
• SC/UPC receptacle SFP with GPON ONU MAC inside, “Plug-and-play” via auto-discovery and configuration
• 1310nm DFB burst mode transmitter, 1490nm TIA continuous mode receiver
• Single 3.3V power supply
• Digital diagnostic monitor interface compatible with SFF-8472
• SFP MSA compliance
• Low EMI and excellent ESD protection
• Class I laser safety standard IEC-60825 compliant
• RoHS compliance
• EPON ONU compatible
• Complies with SFP Multi-Source Agreement (MSA) SFF-8074i
• Complies with ITUT-T G.984.2, G.984.2 Amendment 1

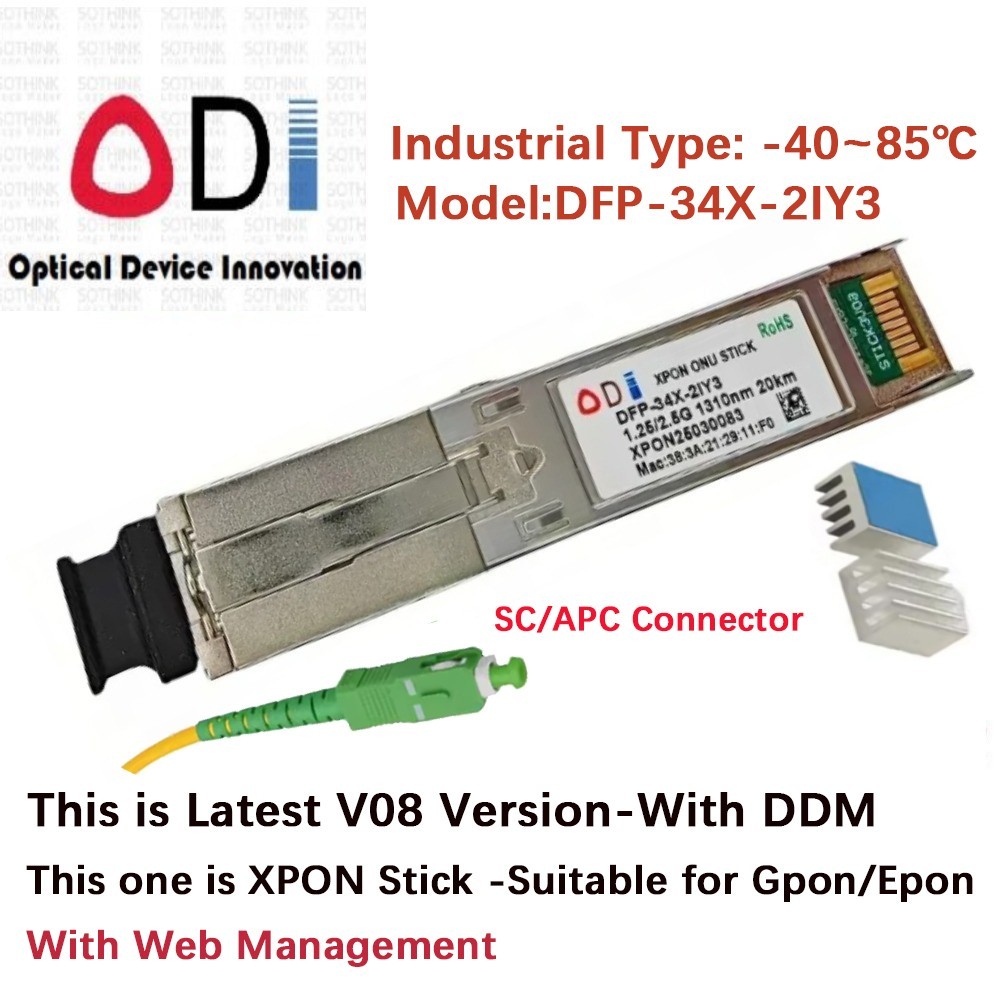

• Complies with ITUT G.988 ONU management and control interface (OMCI) specification DescriptionXPON SC/APC：DFP-34X-2IY3
XPON SC/UPC: DFP-34X-2IY2
With WEB management
XPON=XPON 1.25G/2.5G ,It can use for Epon and Gpon at the same time
Connector:SC/APC & SC/UPC
Product Overview ODI-XPON-STICK is a miniature XPON SFP ONU device that can be plugged into the SFP optical port of a switch or routing device to provide XPON network access to the device. In principle, the ODI-XPON-STICK is an optical module, but it has a built-in CPU, flash memory, and a system, so it can be used as an optical cat.
Advantage
Small Form-Factor Pluggable (SFP)
Easy to install
Low power consumption Technical Parameter
Item
ODI-XPON-STICK
Interface
1*PON
PON
Physical Interface: PON Port
type: SC/UPC ( if you need SC/APC ,Please leave message )
Size
8.2mm x 6.8mm x 75mm
weight
＜19g
Environment
Operating temperature:-40°C~85°C （I Temp）
Operating temperature:0°C~70°C （C Temp）
Storage humidity:5%~95% (non-condensing)
Power Supply
3.3V
Power Consumption
＜2.5W
PON Function
GPON/EPON adaptive
Mode
SFU
Optionally support some functions of HGU(DCHP/PPPoE/NAT)
Configure MAC address
Support
Configure SN
Support
Configure Vendor ID
Support
Configure PVID
Support
DDMI
Support
Management
Http/telent/SSH/TR069
SFP MSA Standard
Support
VLAN
VLAN transport transmission
VLAN swtich function
Application The product is an MSA-compliant SFP that incorporates not just the optics for an ONU, but all of theelectronics need as well.
1GE ONT software version is SFU default,You dont need to do any configuration via ont web.Support port mode of VLAN configuration and u could configure port vlan of ont via olt.After reset ont,there is no wan connection.
