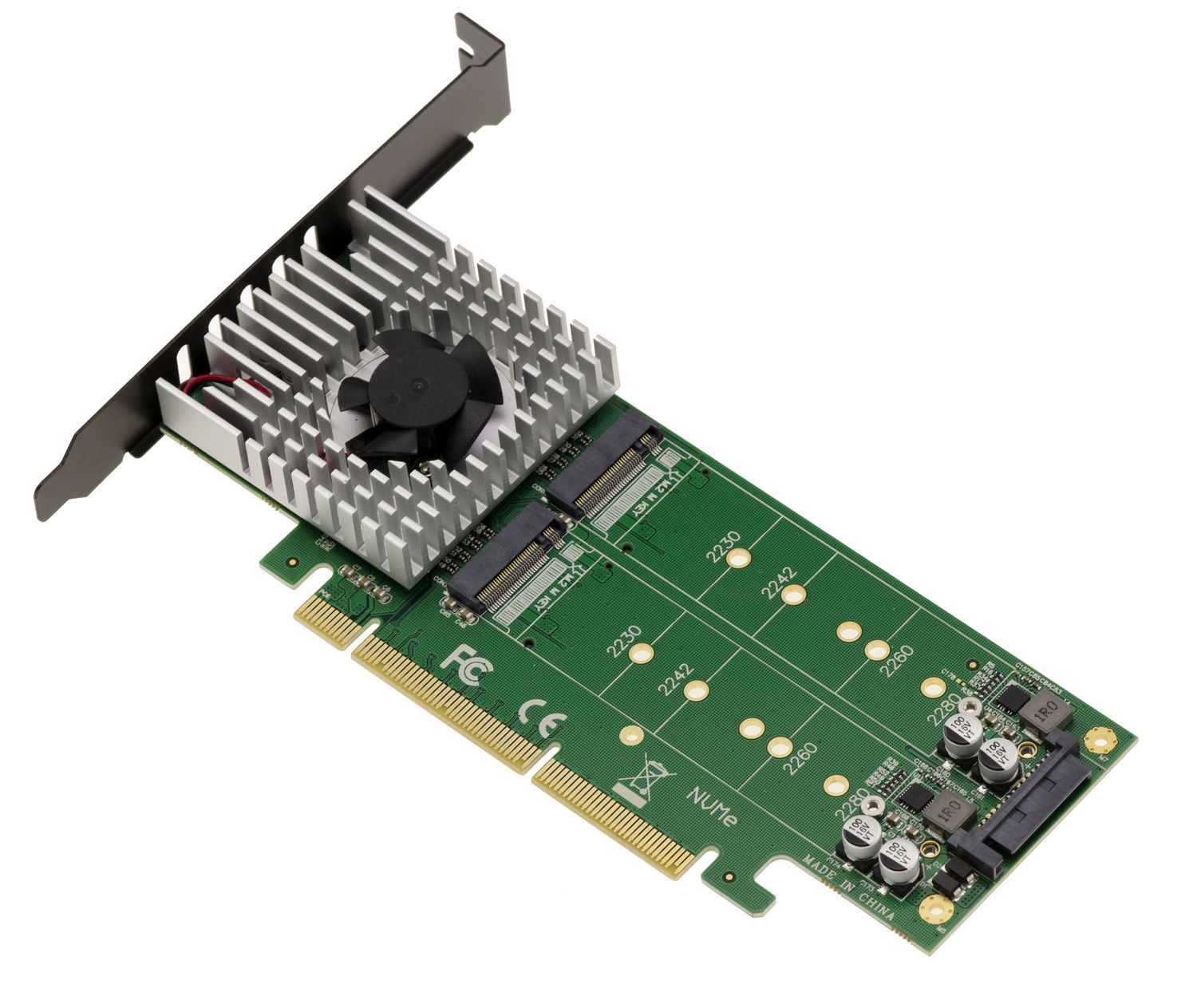

This card will allow you to control four M.2 PCIe M Key (or B+M Key) SSDs.
For any M.2 "M Key" PCIe (NVMe) type SSD, does not support SATA type M2 SSD.
Specifications:
For PCIe 3.0 or higher x16 port.
ASME CHIPSET from ASM2824.
Compatible with motherboards with PCIe 3.0 port or higher and supporting NVMe SSDs (UEFI Bios).
Supports an overall maximum transfer rate of 64Gb/s.
Compatible with M2 2280 SSD sizes. Screws provided.
Two NVMe drives on each side of the card.
Cooling of the chipset provided by an aluminum radiator cooled by forced ventilation.
Power supply via 15 pin SATA plug.
For use on Windows 10 and above, Linux Kernel 3.3 and newer.
Supplied with LOW and HIGH Profile brackets.
