SIIG 1x8 1080p HDMI Splitter HDbitT over IP Extender Kit 120m CEH26W11S1
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

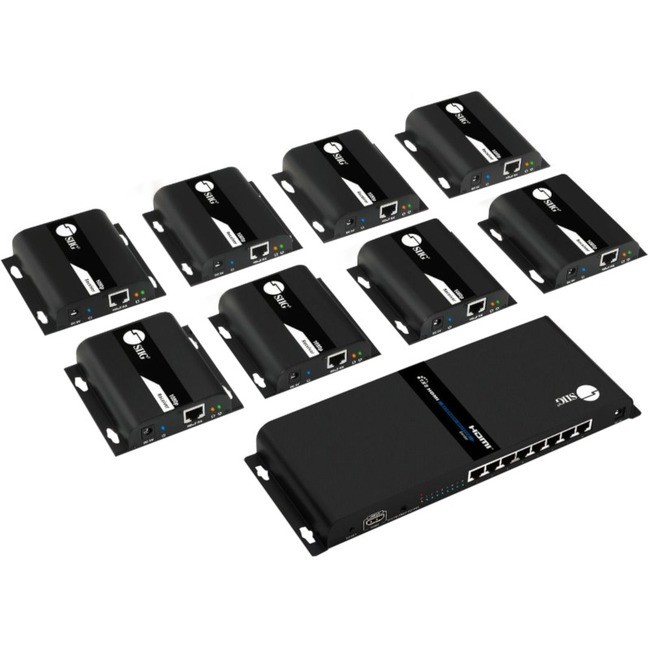

SIIG 1x8 1080p HDMI Splitter HDbitT over IP Extender Kit 120m CEH26W11S1
Price: US $1125.85
1X8 HDMI SPLITTER EXTENDER KIT 120M
  • About Us
  • Payment Info
  • Shipping Info
  • Customer Support
  • response
SIIG 1x8 1080p HDMI Splitter HDbitT over IP Extender Kit 120m CEH26W11S1 Brand: SIIG UPC: 0662774044781 Mfr Part #: CEH26W11S1

General Information

Extends 1080p HDMI signal up to 394ft over Cat6 cable to up to 8 displays, IR control, works with Gigabit network switches for more displays and extension

  • With a single Cat6 cable, you can easily extend HDMI audio/video signals up to 394ft (120m) with our 1x8 HDMI Splitter HDbitT over IP Extender Kit - 120m. Direct 1-to-1 connection, 1-to-Many through Gigabit network switches. Additional receivers, part# CE-H26U11-S1, are sold separately
  • Features cascade connection of up to 30 receivers per transmitter. 1-to-many configuration through 1) Unmanaged/Dedicated Gigabit switches, 2) Smart Gigabit switches with VLAN to segregate video traffic from the rest of the LAN. Many-to-many configuration is also supported via VLAN setups. Note that each VLAN can only accommodate 1 transmitter (TX). Note: We recommend using SIIG's 24-port AV Over IP Smart Ethernet Switch, part# CE-SW0111-S1, sold separately
  • Delivers crystal clear Full HD content up to 1080p@60Hz resolution. Supports up to 1080p; supports 408i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz; Auto adjustment for different cable lengths to produce the best video/audio experience. Supports 2-channel Stereo Audio. * Note: There's a 250ms or less delay/latency due to data compression. Not recommended for real-time applications, such as PC gaming
  • IR remote control through Cat6 cable allow source device to recognize remote commands; You can control the HDMI source device at a secondary location with the included IR cables that forward commands over a Cat6 cable for convenience. We recommend using high performance pure COPPER Cat6 cables to ensure reliable performance
  • High quality durable surface mountable metal housing with ventilation panels provides excellent heat dissipation and a higher level of RF/EMI shielding to ensure reliable performance and system stability during long hours of non-stop operation
  • Plug-n-Play installation, no software installation required, backed by a 2-year limited warranty

Technical InformationConnectivity Technology:WiredNumber of Input Devices Supported:1Number of Output Devices Supported:8Maximum Operating Distance:393.70 ft

Media & PerformanceMedia Type Supported:Twisted PairTwisted Pair Cable Standard:Category 7

Power DescriptionFrequency:50 HzFrequency:60 Hz

Physical CharacteristicsTransmitter Height:1.18"Transmitter Width:4.37"Transmitter Depth:11.81"Receiver Height:0.93"Receiver Width:3.70"Receiver Depth:3.81"Form Factor:Wall MountableForm Factor:Surface-mountableTransmitter Weight (Approximate):1.81 lbReceiver Weight (Approximate):5.28 oz

  • 1x8 HDMI Splitter HDbitT over IP Extender Kit - 120m
  • 9 x Power Adapters
  • 1 x IR Blaster Cable
  • 8 x IR Receiver Cable
  • Quick Start Guide
    • Country of Origin:ChinaEnvironmentally Friendly:YesEnvironmental Compliance:Restriction of Hazardous Substances (RoHS)
