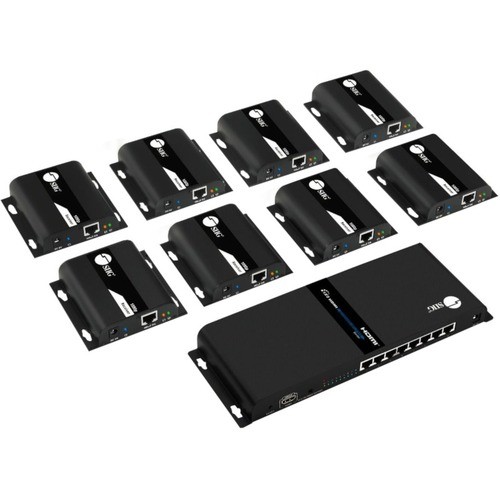

SIIG 1x8 1080p HDMI Splitter HDbitT over IP Extender Kit - 120m - 8 port HDMI over Cat6 Extender Kit- 394ft (120m) - HDMI HDbitT over IP Extender 1 in 8 out - Full HD 1080p - HDCP - One to Many / Many to Many Connection - Over cat6 cable with cascade feature - Support VLAN - IR Extension - Reset Button- Metal Housing - Power/Link/Activity LED Indicator - 2x IR Extension Cable - Wall Mountable - works with Gigabit network switches - Aliminum metal housing - 2 years warranty
Extends 1080p HDMI signal up to 394ft over Cat6 cable to up to 8 displays, IR control, works with Gigabit network switches for more displays and extension With a single Cat6 cable, you can easily extend HDMI audio/video signals up to 394ft (120m) with our 1x8 HDMI Splitter HDbitT over IP Extender Kit - 120m. Direct 1-to-1 connection, 1-to-Many through Gigabit network switches. Additional receivers, part# CE-H26U11-S1, are sold separately Features cascade connection of up to 30 receivers per transmitter. 1-to-many configuration through 1) Unmanaged/Dedicated Gigabit switches, 2) Smart Gigabit switches with VLAN to segregate video traffic from the rest of the LAN. Many-to-many configuration is also supported via VLAN setups. Note that each VLAN can only accommodate 1 transmitter (TX). Note: We recommend using SIIG's 24-port AV Over IP Smart Ethernet Switch, part# CE-SW0111-S1, sold separately Delivers crystal clear Full HD content up to 1080p@60Hz resolution. Supports up to 1080p; supports 408i/480p @60Hz, 576i/576p @50Hz, 720p @50/60Hz, 1080i/1080p @50/60Hz; Auto adjustment for different cable lengths to produce the best video/audio experience. Supports 2-channel Stereo Audio. * Note: There's a 250ms or less delay/latency due to data compression. Not recommended for real-time applications, such as PC gaming IR remote control through Cat6 cable allow source device to recognize remote commands; You can control the HDMI source device at a secondary location with the included IR cables that forward commands over a Cat6 cable for convenience. We recommend using high performance pure COPPER Cat6 cables to ensure reliable performance High quality durable surface mountable metal housing with ventilation panels provides excellent heat dissipation and a higher level of RF/EMI shielding to ensure reliable performance and system stability during long hours of non-stop operation Plug-n-Play installation, no software installation required, backed by a 2-year limited warranty
ManufacturerSIIG, Inc Manufacturer Part NumberCE-H26W11-S1 Brand NameSIIG Product Name1x8 HDMI Splitter HDbitT over IP Extender Kit - 120m Product TypeVideo Extender Transmitter/Receiver Technical Information Connectivity TechnologyWired Number of Input Devices Supported1 Number of Output Devices Supported8 Maximum Operating Distance393.70 ft Video Graphics ModesFull HD Maximum Video Resolution1920 x 1080 Interfaces/Ports Network (RJ-45)Yes HDMI InYes HDMI OutYes Number of Network (RJ-45) Ports16 Number of HDMI Inputs1 Number of HDMI Outputs8 Media & Performance Media Type SupportedTwisted Pair Twisted Pair Cable StandardCategory 7 Power Description Frequency50 Hz,60 Hz Physical Characteristics Transmitter Height1.18" Transmitter Width4.37" Transmitter Depth11.81" Receiver Height0.93" Receiver Width3.70" Receiver Depth3.81" Form FactorWall Mountable,Surface-mountable Transmitter Weight (Approximate)1.81 lb Receiver Weight (Approximate)5.28 oz Miscellaneous Package Contents 1x8 HDMI Splitter HDbitT over IP Extender Kit - 120m 9 x Power Adapters 1 x IR Blaster Cable 8 x IR Receiver Cable Quick Start Guide Country of OriginChina Environmentally FriendlyYes Environmental ComplianceRestriction of Hazardous Substances (RoHS) Warranty Limited Warranty2 Year WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
