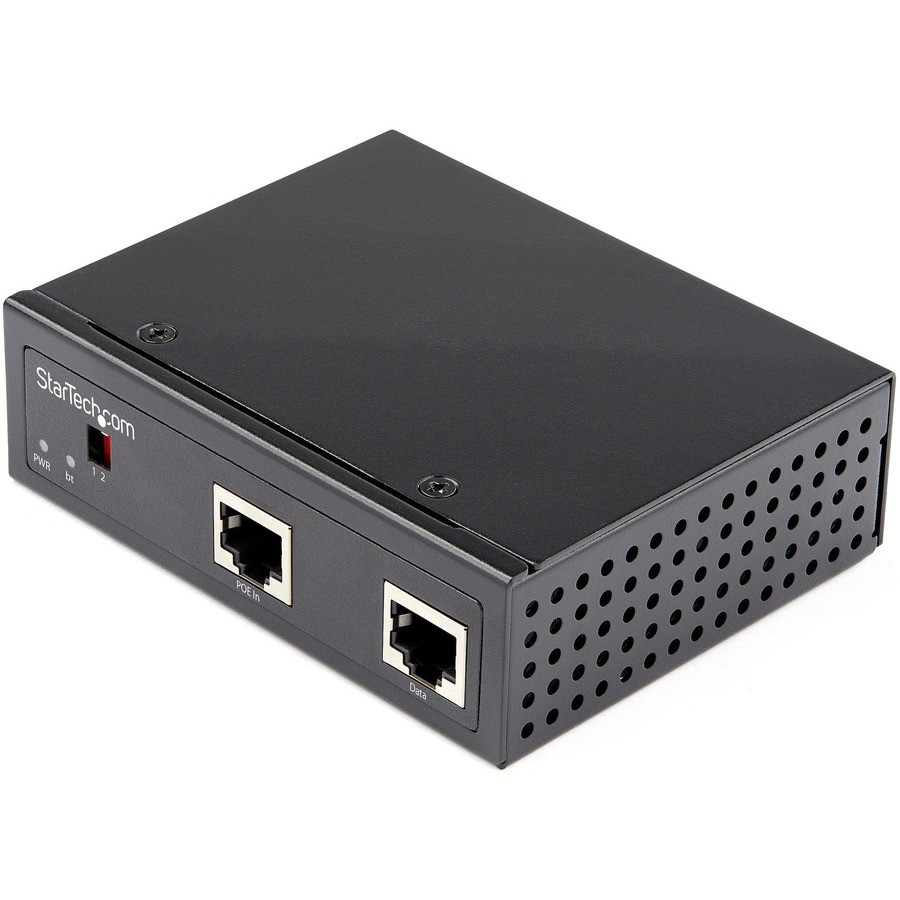

StarTech 90W Industrial Gigabit PoE Splitter POESLT1G48V Brand: StarTech UPC: 0065030889735 Mfr Part #: POESLT1G48V

General InformationSplits a PoE connection (max 90W) into separate data (RJ45) and DC power (terminal block) that can power any device that uses DC power between 12V-48VDC (1.5A). Power non-PoE devices using network infrastructure, where power is not available. Power Non-PoE Devices Perfect for using PoE to power older devices while also providing network access for monitoring and control applications. Applications include: Security (card swipe or proximity boxes) Environmental monitoring (temperature/moisture sensors) Telco (analog interface systems/conversion) Straightforward Deployment Supports IEEE 802.3af (PoE / Type 1), IEEE 802.3at (PoE+ / Type 2), and IEEE 802.3bt (PoE++ / Type 3) PoE inputs up to 90W and splits data and power. Power output via terminal block can be configured for 12/16/24/48V DC (1.5A). The configuration is completed by DIP switches and the product can be wall or DIN rail mounted using the included hardware. Designed for Harsh Environments Industrial features include -40 C to 75 C operating temperature, IP-30 rated housing, vibration, shock, and free-fall standard testing. Vibration: EN 60068-2-6 Shock: EN 60068-2-27 Free-Fall: EN 60068-2-32 600,000+ hours MTBF rating using Telcordia/Bellcore at 50 C for long-term reliability. The POESLT1G48V is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer

More from the Manufacturer

Power DescriptionMinimum Output Voltage:12 V DCMaximum Output Voltage:48 V DC

Physical CharacteristicsForm Factor:DIN Rail/Wall (Approximate):5.29 oz

POESLT1G48V PoE Splitter

Quick-Start Guide

Hardware Mounting Kit

Terminal Block

Certifications & Standards:

• IEEE 802.3
• IEEE 802.3u
• IEEE 802.3ab
• IEEE 802.3at
• IEEE 802.3af
• IEC 61000-4-2
• IEC 61000-4-4
• IEC 61000-4-5
• EN 60068-2-6
• EN 60068-2-27
• EN Friendly:YesEnvironmental Certification:EU RoHSEnvironmental Compliance:Restriction of Hazardous Substances (RoHS) 2Environmental Compliance:Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)Environmental Compliance:Waste Electrical and Electronic Equipment Directive (WEEE)REACH free of SVHC:YesEnd of Life Manual Availability:YesCountry of Origin:Taiwan
