Description:
Single-Chip HID USB to SMBus Master Bridge
Integrated USB transceiver; no external resistors or crystal
required
SMBus master device
GPIO can be configured as Input/Output and Open-Drain/
Push-Pull
512 Byte SMBus data buffer
Integrated 194 Byte One-Time Programmable ROM for
storing customizable product information
On-chip power-on reset circuit
On-chip voltage regulator: 3.45 V output
USB Peripheral Function Controller
USB Specification 2.0 compliant; full-speed (12 Mbps)
USB Suspend states supported via SUSPEND
and /SUSPEND pins
HID Interface
Standard USB class device requires no custom driver
Supported on Windows, Mac, and Linux
Open access to interface specification
Windows, Mac, and Linux HID-to-SMBus Libraries
APIs for quick application development
SMBus Configuration Options
Configurable Clock Speed
Device Address: 7-bit value that is the slave address of the
CP2112. The device will only ACK this address, but will not
respond to any read/write requests
Read/Write Timeouts
SCL Low Timeout
Retry Counter Timeout
GPIO Interface Features
8 GPIO pins with configurable options
Usable as inputs, open-drain or push-pull outputs
Configurable clock output for external devices
48 MHz to 94 kHz
Toggle LED during SMBus reads
Toggle LED during SMBus writes
Supply Voltage
Self-powered: 3.0 to 3.6 V
USB bus powered: 4.0 to 5.25 V
I/O voltage: 1.8 V to VDD
Ordering Part Number
CP2112-F03-GM
Temperature Range: –40 to +85 °C
Package：

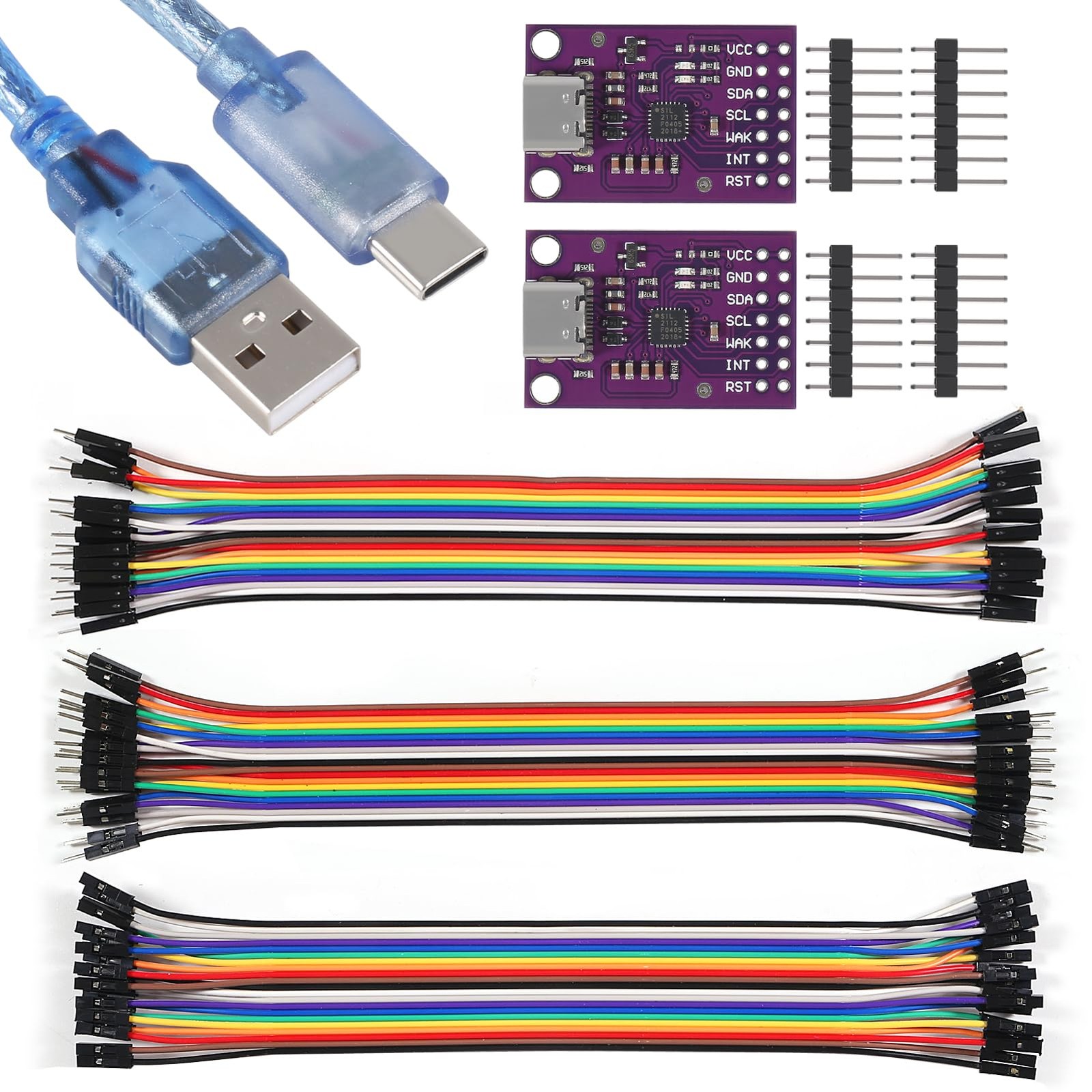

2PCS type-c CP2112 debug board
1PCS type-c USB cable
20CM 20pin Male to Female
20CM 20pin Male to Male
20CM 20pin Female to Female Breadboard Jumper
The CP2112's highly integrated USB-to-SMBus bridge controller integrates a USB 2.0 full-speed function controller, USB transceiver oscillator and eight GPIO pins.
60pcs （20 cm /8-inch）Multicolored Dupont Wire 20pin Male to Female, 20pin Male to Male, 20pin Female to Female Breadboard Jumper Ribbon Cables Kit Compatible with Arduino Projects
Supports HID to SMBus library API for Windows, Mac and Linux for rapid application development
Applications: portable controllers, USB dongles, data logging for arduino
Package：2PCS type-c CP2112 debug board;1PCS type-c USB cable; 20CM 20pin Male to Female, 20CM 20pin Male to Male, 20CM 20pin Female to Female Breadboard Jumper
