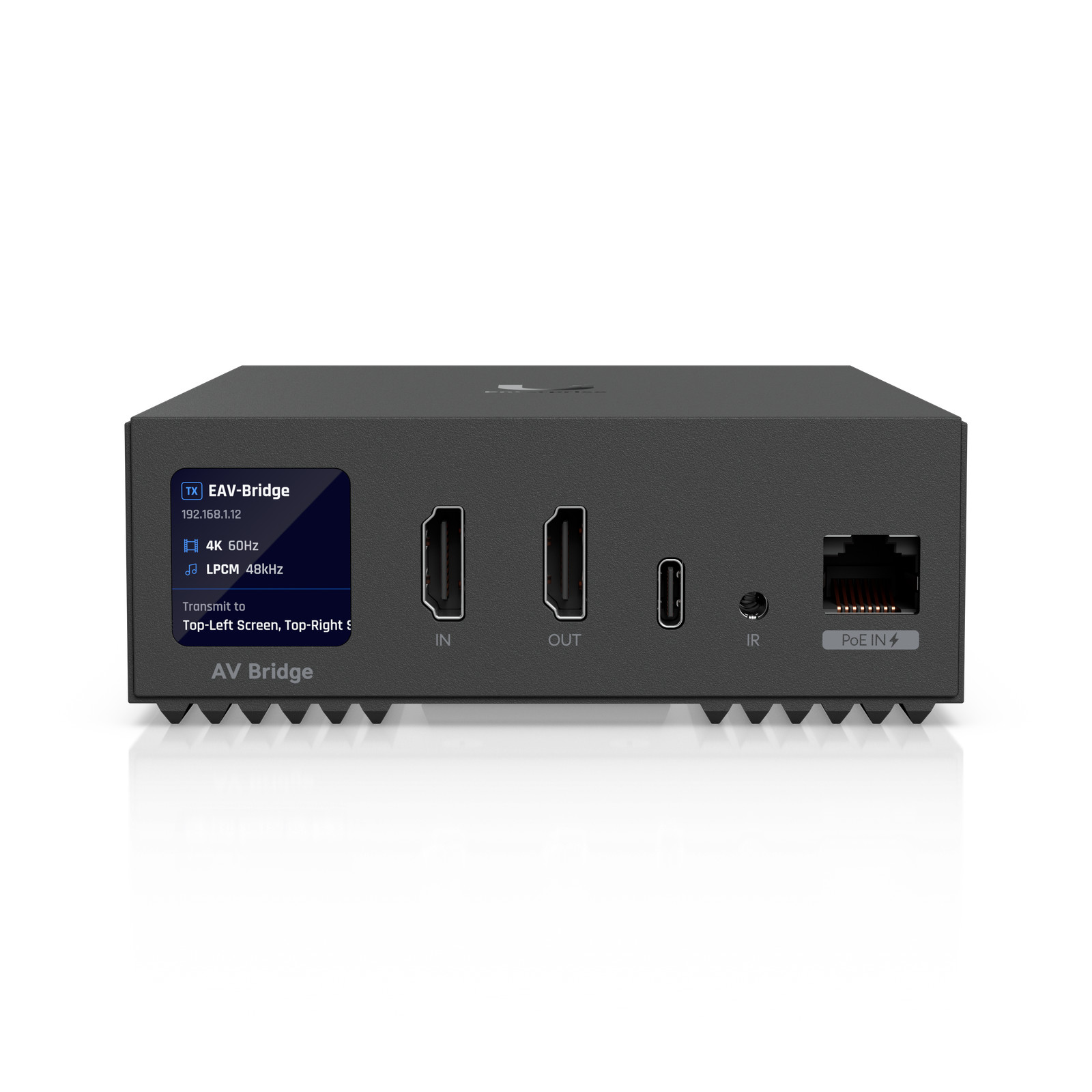

Enterprise Audio/Video Bridge Model: EAV-Bridge Product Description

PoE+ powered AV-over-IP transceiver that bridges 4K60 HDMI and professional XLR audio as either a source or destination.

Technical Specifications Networking Interface(1) GbE RJ45 PoE+ In Etherlighting™ portPower MethodPoE+Max. Power Consumption14WDimensions109 x 134.4 x 40.4 mm (4.3 x 5.3 x 1.6")Weight560 g (1.2 lb)MountingDIN rail, Wall, Pole (Included)NDAA CompliantYesCertificationsFCC, IC, CEAmbient Operating Temperature-5 to 40° C (23 to 104° F)Ambient Operating Humidity5 to 90% noncondensingAudio Input(1) HDMI in(2) XLR female analog with 6.35 mm analog combo input, phantom power: 48V DC supportedAudio Output(1) HDMI out(2) XLR male analog outputButton(1) Factory resetEnclosure MaterialAluminumFrequency20 Hz – 20k Hz ±0.5dBIR Connection(1) 3.5 mm Input or OutputLCM Display(1) 1.3” touchscreenOutputMono / Stereo soundPole Mount Diameter1.5–2" (38–50 mm)Signal Distribution1-to-1, 1-to-N streaming1 to 8x8 TV wall configurationSurround FormatPCMVersatile Port(1) USB Type-C 5V, 1AVideo Content Support480p / 720p / 1080p / 4KVideo Input(1) HDMI 2.0, 4K at 60 Hz (60 FPS)Video Output(1) HDMI 2.0, 4K at 60 Hz (60 FPS) 📦 Brand New - Factory Sealed 🛡️ Manufacturer Warranty 🚚 Fast Free Shipping with Tracking
