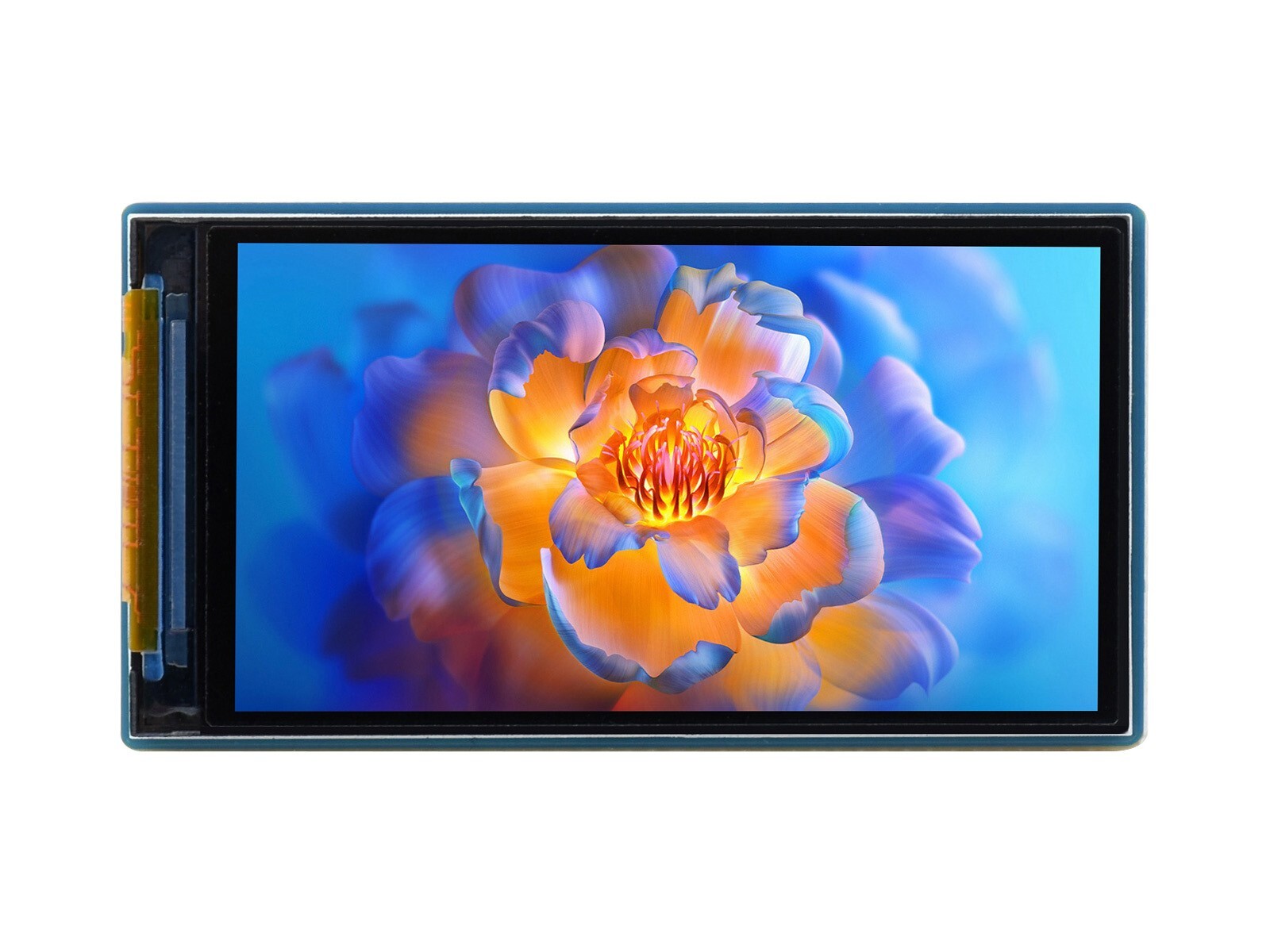

Waveshare 1.9inch LCD Display Module 170×320 Resolution SPI Interface IPS

Price: CN $18.91

DESCRIPTION
1.9inch LCD Display Module, 170×320 Resolution, SPI Interface, IPS, 262K Colors1.9inchLCD Display Module

Embedded ST7789V2 Driver Chip, Using SPI Interface

Comes with examples for Raspberry Pi, Arduino, STM32, etc.

Size1.9"
Display Color262K

InterfaceSPI
Display PanelIPS
170×320 resolution, 262K colors, clear and colorful displaying effect
SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)

SpecificationsOPERATING VOLTAGE3.3V / 5VRESOLUTION170 × 320 pixelsCOMMUNICATION INTERFACE4-wire SPIDISPLAY SIZE22.70 × 42.72 mmDISPLAY PANELIPSPIXEL SIZE0.1335 × 0.1335 mmDRIVERST7789V2MODULE SIZE27.3 × 51.2mm
Onboard Voltage Translator

Compatible With 3.3V / 5V Power Input

Onboard SPI Control Interface

For Use With Controller Boards Like Raspberry Pi / Arduino / STM32

BLBacklightRSTReset, low activeDCData/Command selection (high for data, low for command)CSChip selection, low activeCLKSPI clock inputDINSPI data inputGNDGroundVCCPower (3.3V / 5V input)
Hardware Connection

Connecting With Raspberry Pi

Connecting With Arduino Board

Connecting With STM32

Usage Example
Product Show

Outline DimensionsPACKAGE CONTENT

Weight:0.015 kg
