DESCRIPTION

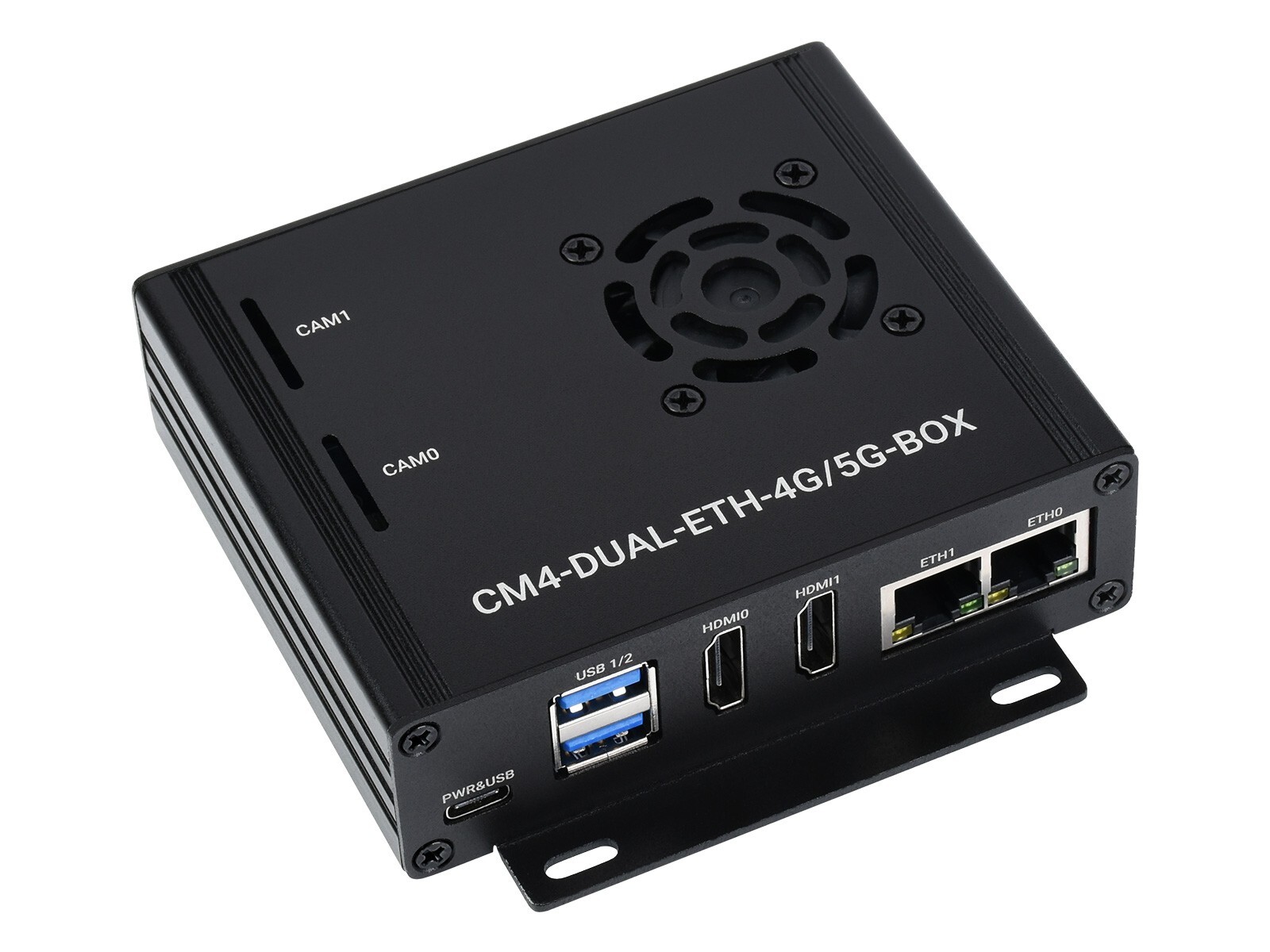

Dual Gigabit Ethernet 5G/4G Mini-Computer Based On Raspberry Pi Compute Module 4 (NOT Included), Metal Case, With Cooling Fan Dual GigE 5G/4G ComputerBased On CM4

Designed For Raspberry Pi Compute Module 4

Compatible With Communication Modules With M.2 B KEY Interface

An additional communication module is required to enable 5G/4G/3G/2G cellular network function, recommended: SIM7600G-H-M.2, SIM8202G-M2, SIM8200EA-M2 Dual GigE 5G/4G Base Inside

Make It Easy To Build Your Own Raspberry Pi CM4 Mini PC

for reference only, CM4 and communication module are NOT included. Base Board Specifications CM4 SOCKET suitable for all variants of Compute Module 4 NETWORKING Dual Gigabit Ethernet RJ45 M.2 B KEY, for connecting 5G / 4G module Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication USB USB 3.2 Gen1 × 2 PIN HEADER Raspberry Pi 40PIN GPIO header DISPLAY MIPI DSI port (15pin 1.0mm FPC connector) CAMERA MIPI CSI-2 port × 2 (15pin 1.0mm FPC connector) VIDEO HDMI × 2, supports 4K 30fps output RTC Real-time clock with battery socket and ability to wake Compute Module 4 STORAGE MicroSD card socket for Compute Module 4 Lite (without eMMC) variants FAN HEADER 5V/12V (12V by default), allows speed adjustment and measurement POWER INPUT 5V/2.5A DIMENSIONS 99.6 × 87.0mm Comparing The Expansion Boards CM4 BASE BOARD INTERFACE COUNT AND SPECIFICATIONS POE GIGABIT
ETH 40PIN
GPIO PCIE USB① DSI HDMI CSI RTC FAN
HEADER POWER
INPUT FEATURES
NANO A √ 2.0×1 ×1 5V CM4 sized
NANO B ×1 √ 2.0×1 ×1 ×1 ×1 5V CM4 sized
NANO C √ 2.0×1 ×1 ×1 ×1 5V Onboard Camera
DUINO M.2 M 2.0×1 ×1 ×1 5V Arduino compatible
MINI BASE A ×1 √ M.2 M 2.0×4 ×1 ×2 ×2 5V 5V mini size
MINI BASE B ×1 √ M.2 M 2.0×4 ×1 ×2 ×2 √ 5V 5V mini size
MINI BASE C ×1 √ M.2 M 2.0×2 ×1 ×2 √ 5V 5V Dedicated 40PIN LCD Connector
TOUCH SCREEN ×1 M.2 M 2.0×4 ×1 ×1 5V IPS screen
MINI DUAL GIGABIT ×2 √ 2.0×1 5V SH1.0 5V dual ETH
BINOCULAR CAMERA ×1 √ M.2 M 2.0×4 ×2 5V dual 8MP
cameras
4CH RS485 ×1 2.0×2 ×1 ×2 ×1 5V 7-36V dual ETH
WIFI6 DUAL ETH ×1 √ M.2 E 2.0×3 ×1 ×2 ×2 ×1 5/12V 7-36V WIFI6 dual ETH
DUAL GIGABIT ETH ×2 √ 3.0×3 ×1 ×2 ×2 √ 5/12V 7-36V
IOT DUAL GIGABIT ETH ×2 √ 3.0×2 ×1 ×2 ×2 √ 5/12V 5V 5G/4G support
IOT BASE √ ×1 Gen2×1 2.0×2 ×2 ×2 ×2 √ 5/12V 7-36V 5G/4G support
RS232
RS485
ADC
POE BASE (B) √ ×1 √ Gen2×1 2.0×4 ×2 ×2 ×2 √ 5/12V 5V RS232
RS485
POE UPS BASE √ ×1 √ M.2 M 2.0×4 ×1 ×2 ×2 √ 5/12V 7-36V UPS
POE BASE √ ×1 √ 3.0×4 ×2 ×2 ×2 √ 5/12V 7-36V
RASPBERRY PI OFFICIAL ② ×1 √ Gen2×1 2.0×4 ×2 ×2 ×2 √ 12V 12V
WIRELESS BASE ×1 M.2 B /
Mini-PCIe 2.0×3 ×1 ×1 √ 5/12V 5V or
7-36V 5G/4G support
RS485
CAN
rail-mount
5″ TOUCH SCREEN ② ×1 √ M.2 M 2.0×4 ×1 ×2 √ 5/12V 5V
7″ ALL-IN-ONE ×1 M.2 M 2.0×4 used ×1 used √ 5/12V
used 7-36V touch screen
camera
speaker NOTE ① USB 3.0 is equivalent to USB 3.2 Gen1
② There's PoE header only on the Raspberry Pi official IO board without PoE circuit, that means additional PoE module is required for the official IO board to enable PoE feature.
Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A). Rich Interfaces

Providing Interfaces Including: ETH/CSI/DSI/RTC/HDMI/Micro SD/USB/M.2 B KEY

Precise Cut-Out With Clear Label

Each Cut-Out Is Completely Aligned With The Connector

Cooling Fan Included

Comes With Cooling Fan, Combined With The Airflow Vent, Better Heat Dissipation

Wall Mount Support

Wall Mount Holes On Two Sides, Handy For Mounting

Application Examples

Suitable For Raspberry Pi Telecommunication Projects, Or Other Industrial Applications

for reference only, display, cameras, and antenna are NOT included. Outline Dimensions
PACKAGE CONTENT

Weight:0.357 kg

1. CM4-DUAL-ETH-4G/5G-BASE x1
2. Metal case (top and bottom) x1
3. Fan-4010-PWM-12V x1
4. OPTIONS5V 3A Type-C power adapter x1
5. Screwdriver x1
6. Antenna connector rubber plug 4pcs x1
7. Screws pack x1
