DESCRIPTION

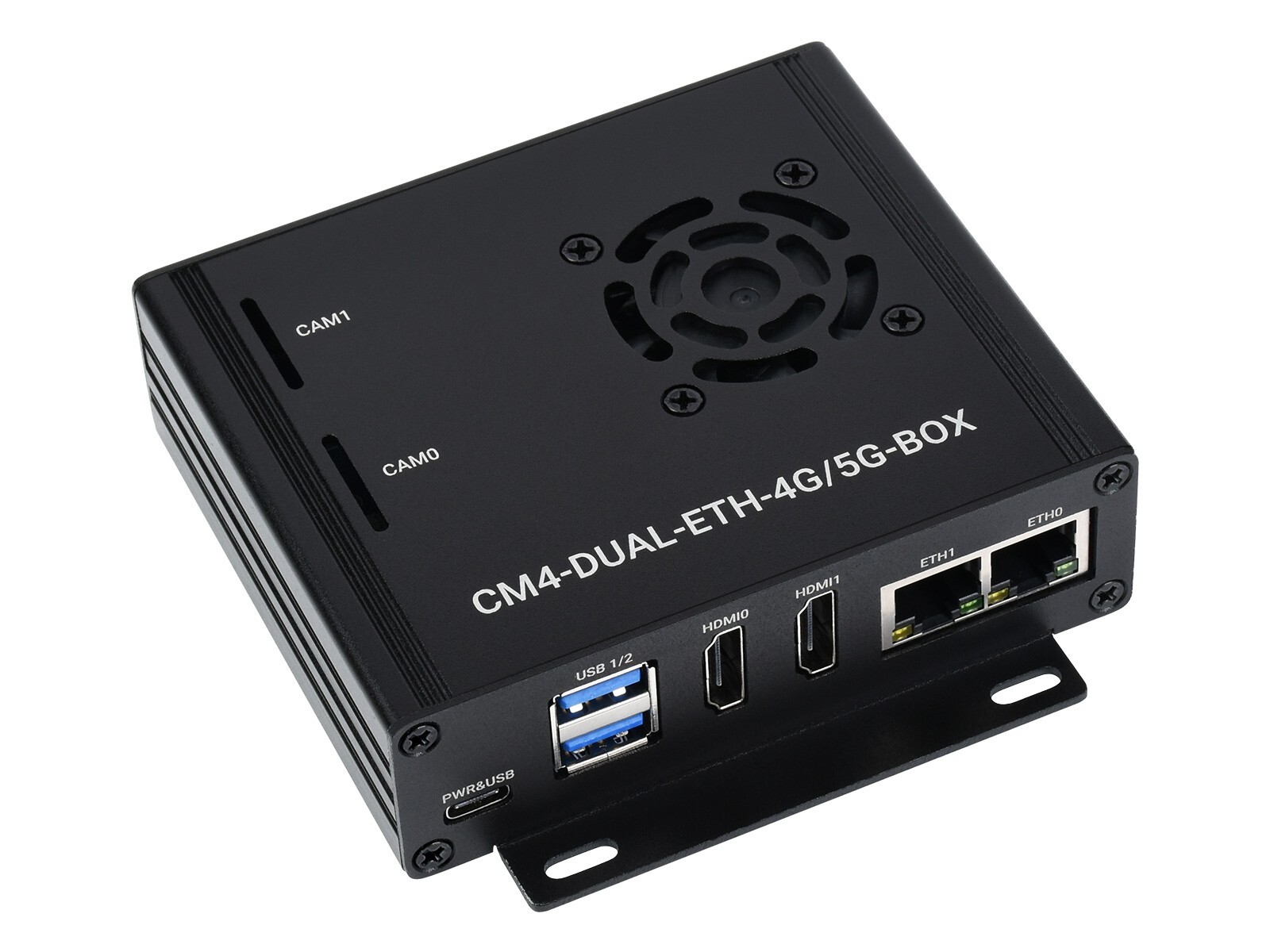

Dual Gigabit Ethernet 5G/4G Mini-Computer Based On Raspberry Pi Compute Module 4 (NOT Included), Metal Case, With Cooling Fan Dual GigE 5G/4G ComputerBased On CM4

ETH 40PIN
GPIO PCIE USB① DSI HDMI CSI RTC FAN
HEADER POWER
INPUT FEATURES
NANO A √ 2.0×1 ×1 5V CM4 sized
NANO B ×1 √ 2.0×1 ×1 ×1 ×1 5V CM4 sized
NANO C √ 2.0×1 ×1 ×1 ×1 5V Onboard Camera
DUINO M.2 M 2.0×1 ×1 ×1 5V Arduino compatible
MINI BASE A ×1 √ M.2 M 2.0×4 ×1 ×2 ×2 5V 5V mini size
MINI BASE B ×1 √ M.2 M 2.0×4 ×1 ×2 ×2 √ 5V 5V mini size
MINI BASE C ×1 √ M.2 M 2.0×2 ×1 ×2 √ 5V 5V Dedicated 40PIN LCD Connector
TOUCH SCREEN ×1 M.2 M 2.0×4 ×1 ×1 5V IPS screen
MINI DUAL GIGABIT ×2 √ 2.0×1 5V SH1.0 5V dual ETH
cameras
4CH RS485 ×1 2.0×2 ×1 ×2 ×1 5V 7-36V dual ETH
WIFI6 DUAL ETH ×1 √ M.2 E 2.0×3 ×1 ×2 ×2 ×1 5/12V 7-36V WIFI6 dual ETH
DUAL GIGABIT ETH ×2 √ 3.0×3 ×1 ×2 ×2 √ 5/12V 7-36V
IOT DUAL GIGABIT ETH ×2 √ 3.0×2 ×1 ×2 ×2 √ 5/12V 5V 5G/4G support
IOT BASE √ ×1 Gen2×1 2.0×2 ×2 ×2 ×2 √ 5/12V 7-36V 5G/4G support
RS232
RS485
ADC
POE BASE (B) √ ×1 √ Gen2×1 2.0×4 ×2 ×2 ×2 √ 5/12V 5V RS232
RS485
POE UPS BASE √ ×1 √ M.2 M 2.0×4 ×1 ×2 ×2 √ 5/12V 7-36V UPS
POE BASE √ ×1 √ 3.0×4 ×2 ×2 ×2 √ 5/12V 7-36V
WIRELESS BASE ×1 M.2 B /
7-36V 5G/4G support
RS485
CAN
5″ TOUCH SCREEN ② ×1 √ M.2 M 2.0×4 ×1 ×2 √ 5/12V 5V
7″ ALL-IN-ONE ×1 M.2 M 2.0×4 used ×1 used √ 5/12V
used 7-36V touch screen
speaker NOTE ① USB 3.0 is equivalent to USB 3.2 Gen1
② There's PoE header only on the Raspberry Pi official IO board without PoE circuit, that means additional PoE module is required for the official IO board to enable PoE feature.
Unless otherwise specified, the PoE feature here stands for integrating 802.3af-compliant PoE circuit (5V/2.5A). Rich Interfaces
