Black Wired mode one
Wavlink USB2.0 Network Print Server, LAN Print Share Server for USB Printers, LPR Print Protocol 10/100Mbps Computer Print Server Adapter for Windows, MacOS 10.7 or above, No Driver Required(BEFORE YOU PLACE AN ORDER,PLAESE CONTACT US WHETHER IT IS COMPATIBLE)
⭐Note Before Purchase: This print server does not require driver installation, but you need to download and install the printer's driver from its official website and follow the manual to install the usb server. Read ""Printer Compatibility List"" in ""Product Document"" before purchase. GUI(Graphical User Interface)-based management, DHCP and auto IP supported.
⭐Share A Printer: Tired of maintaining the printer's host PC? Wavlink print server converts an old USB printer into a network printer, sharing a USB printer with multiple users over an Ethernet. No additional printers are needed and save money, space and less cable mess.
⭐Print From Anywhere: Print from any computer connected to the LAN. This print server doesn’t require a wired connection to the computer, however you must connect the server to your network device (eg. router/switch) with the included RJ45 network cable.
⭐Extensive Compatibility: This print server is USB2.0 compliant, it works with Windows 2003/2008/2012/XP/Vista/7/8/8.1/10/11, Mac 10.7 or later. Compatible with almost all the USB printers such as ink-jet printer, laser printer, needle printer, multi-function printer, etc..
⭐Perfect Solution: This USB printer network adapter allows any computer in the same LAN to access the USB printer connected with this print server device. It is suitable for home or business applications, and government or educational institutions that require shared printing capabilities."
WAVLINK USB2.0 Network Print Server, Share a USB Printer Over LAN!
Description:
Wavlink new palm-sized Networking USB 2.0 Server enables any USB printer into wired network printer so printer can be accessed by all computer users on the network. It complies with USB 2.0 specifications (backward compatible with USB 1.1 spec.), and provides users with an auto-sensing Ethernet port that works with either 10Base-T or 100Base-T networks.
Easy to Operate:
①.Connect the power adapter.
②.Connect the printer with the USB-A cable(Not Included).
③.Connect to network with the Ethernet cable(Included).
④.Install the printer driver & follow the manual to configure the printer and network settings, then you can print from any computer on the network.
Print Over LAN: Connect a USB-only printer to the LAN and share it among all computers on the network.
Easy Configuration: Easy configuration with intuitive web based GUI(Graphics User Interface)
Appliances Not Recommended: Do not support connecting peripherals such as hard disk, usb flash drive, card reader, phone, tablet etc.
Warm Tips
☺This print server does not require driver installation, but you need to download and install the printer's driver from the printer official website and follow the manual to install the usb server.
☺Read ""Printer Compatibility List"" in “Product Document” before purchase.
☺Make sure your computers and the print server are in the same local network (subnet, LAN).
☺This product can only be connected to a router or switch via a network cable. Do not support broadcasting wifi. However, you should connect the device to the wireless router and share the printer via wifi of the router.
Features：
- 10Base-T/100Base-T auto-sensing.
- Easily connect your USB printer to a network.
- Allows multiple computers to share one USB printer on the network.
- Print from any computer on your network.
- The built-in web management feature provides more convenience by allowing the user to configure, monitor and even reset the print server via a web browser.
- Works with any home or office Ethernet network.
- Supports protocol: LPR
Specification：
Model: WL-NU72P11
Color: Black
Material Type: ABS
Item Weight: 37g/ 1.3oz
Network Cable Length: 100cm/3.3ft/39.4in
Power Adapter Cable Length: 120cm/3.9ft/47in
Product Dimensions: 54*54*25mm / 2.1*2.1*1inches
System Requirement: Windows 2003/2008/2012/XP/7/8/8.1/10/11, Mac 10.7 or later.
Package List:
1x Networking USB LPR Print Server
1x RJ45 Ethernet Cable
1x Power Adapter
1x Instruction Manual

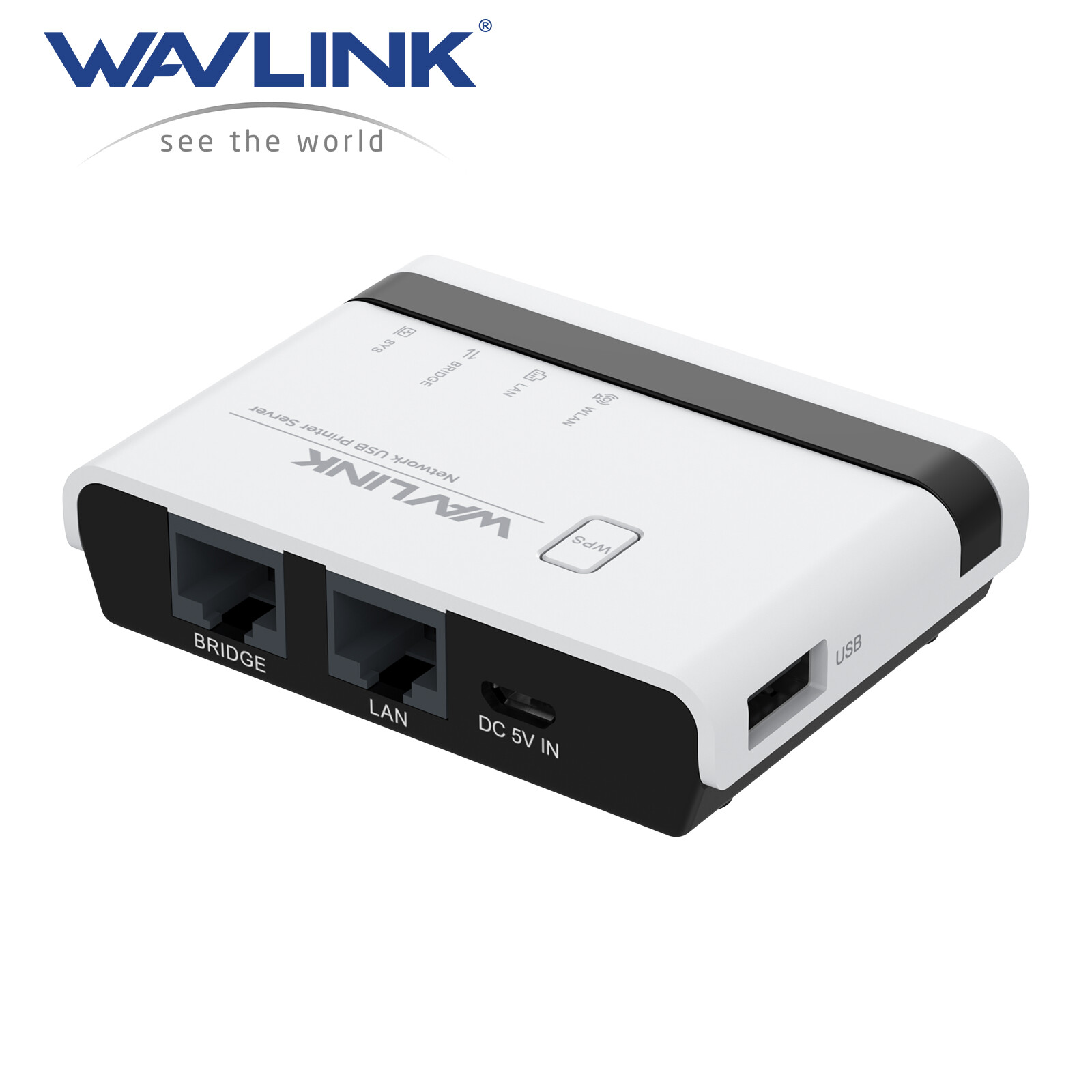

White 3-1 Mode oneWavlink WL-NU516U1 Wireless N300 USB Network Printer Server with Two Ethernet Ports1.【Share Up to 4 Printers】This print server transforms your ordinary USB printer into a wireless printer, flexibility print documents from laptops or computers. You can share a printer among multiple devices on the same network. Also, with the help of one USB hub, this print server supports connecting maximum 4 printers, which greatly simplifies the printing process.2.【3 Mode Wired/ Wireless/ Standalone 】 In wired mode and 2.4G wireless network mode, the print server receives WiFi signals from router and allows computers to print wirelessly through the same network. In standalone mode, this print service has a built-in repeater function that repeat the WiFi and then broadcasts the signal to the computer, thus allowing the computer to print wirelessly.3.【Centralized Web Management】 Get rid of hassled driver installation and complicated setting steps, enjoy one-stop printer and print server configuration on the web interface Please Note: This print server does not require an external driver, but you need to download and install the printer's driver from its official website and follow the Quick Start Guide to connect the printer to the computer.4.【Broad Compatibility】 Widely compatible with Windows 7/8/10/11/XP and Mac OS. Equipped with a high-speed 480Mbps usb2.0 port and 100Mbps bridge & LAN ports , the wifi print server is perfect for almost all usb printers, including ink-jet printers, laser printers, receipt printers, stylus printers, barcode printers and other RAW-protocol-supported printers.5.【Compact Size, Powerful Use】 Features a pocket-size of 7.5 x 5.4 x 1.8cm and a light weight of 43g. Supports automatic queue printing, which is ideal for applications at home, small office, supermarket, educational institutions... What you get: 1 x Wireless USB Print Server, 5V/1A Power Adapter, Ethernet Cable, Micro USB Cable.
Come and Get WAVLINK WiFi USB Print Server, Share Printers in Home&Office Wireless
WAVLINK wifi print server allows you to share usb printers with multiple users in different ways. In the wired/wireless mode, the product connects to the superior router through the network cable/wifi signal. In stand-alone mode, the product broadcasts a wifi signal, and computers can also share the printer by connecting this signal. The usb-a port complies with usb2.0, which supports connecting four printers or storage devices via a usb hub. Its palm-size and wide compatibility make the print server suitable for home, warehouse, shop, office, e-commerce, soho, government, educational institutions and any other places that require shared printing capabilities.
Installation Steps
1.Connect the power adapter.
2.Connect the printer and network.
3.Follow the Quick Start Guide to configure the printer and network settings on your PC
Please check the Quick Start Guide for more detailed printer and network setup steps.
Description of LED Indicators
WLAN LED is on/off —— The WiFi is activated/deactivated
LAN LED is on/off —— The LAN port is connected/disconnected
BRIDGE LED is on/off —— The BRIDGE port is connected/disconnected
SYS LED is on/slow blinking —— The printer server has/hasn't connected to the router.
SYS LED is fast blinking —— The WPS is ON
Wide Compatibility
This USB wireless print server works with most usb printers, such as HP, Canon, Epson, Brother, Sharp, Fuji Xerox, Lenovo, Aurora, Samsung, Konica Minolta, Deli, Toshiba, Kyocera, Zebra, OKI and other printers that support RAW protocol. A few printers are not supported, such as Canon LBP2900, 2900+, 3000, 7200, HP P1108, HP M403D, Epson 1390. If you are not sure whether your printer supports the RAW protocol, it's recommended to consult our customer service to confirm.
WPS & Reset Button
WPS function supported, allowing for easy and convenient connection to your wireless network without input password. Press the WPS button for 6s to pair with the router when in Wireless Repeater Mode and press the Reset button for 6s to reset the device.
Share Printers via Network
WAVLINK usb wireless print server converts your usb printers into wifi printers, so that all connected computers(connect to the print server directly or through a router) can share these printers, suitable for home, warehouse, shop, office, etc. Note: It is recommended that your computer and the print server be under the same local network.
Manage on Web Interface
Supporting web management, this print server provides more convenience by allowing the user to configure, monitor and even reset the print server on a web interface, which eliminates the hassle of technically complex setup of your print server.
Good Heat Dissipation
Heat ventilation holes are added at the bottom of the usb print server to ensure a good cooling effect and prolong its service life.
Specification
Model: WL-NU516U1
Color: White
Material Type: PC+ABS
Item Weight: 43g/1.5oz
Network Cable Length: 1.1m/3.61ft
Power Adapter Cable Length: 1m/3.28ft
Product Dimensions: 7.5x5.4x1.8cm/2.95x2.13x0.70in
System Requirement: Windows 7/8/10/11/XP, Mac OS
Operation Modes: Wire Mode, Wireless Mode, Standalone Mode
Default Parameters
Login:
User Password: admin
Default IP:192.168.10.1
Default SSID: NETUSB_XXXX
WiFi Key: netusb12345
Features
- Allow multiple computers to share USB Printers on your local network and print from any computers.
- Compatible with most mainstream USB interface printers.
- Support Samba Service to share USB storage.
- Provide 2 x 10/100Mbps Ports for LAN and Bridge.Can extend your network.
- Support High-Speed USB 2.0 Standard for the Stable Printing Service.
- Support Various Operation Mode:Wired,2.4G Wireless Network and Standalone Mode.
- Support WEB management which is easy to manage your USB Printer Server.
- Support mDNS and SSDP Protocol to find a USB Printer Server easily.
- Support JetDirect(AppSocket)protocol.
- Support WPS button for easy and convenient connection to your wireless network without input password
- Using USB HUB can share up to 4 Printers or 4 Storage devices.
In the Box
1 x Wireless USB Print Server
1 x 5V/1A Power Adapter
1 x Ethernet Cable
1 x Micro USB Cable
1 x Quick Start Guide
Warm Notes
- Please make sure that the print server is connected to a power supply before use.
- This print server does not require an external driver, but you need to download and install the printer's driver from its official website and follow the Quick Start Guide to connect the printer to the computer.
- This print server is compatible with printers that support RAW protocol. If you are not sure whether your printer supports the RAW protocol, please contact our customer service to confirm.
- It is recommended that your computer and the print server be under the same local network.
- In stand-alone mode, you don’t need to connect the superior router, but there’s no access to the Network at the same time.
- Supports connecting multi-function printers, but does not support the scanning function of it
- This product does not support printing from phones and tablets.
