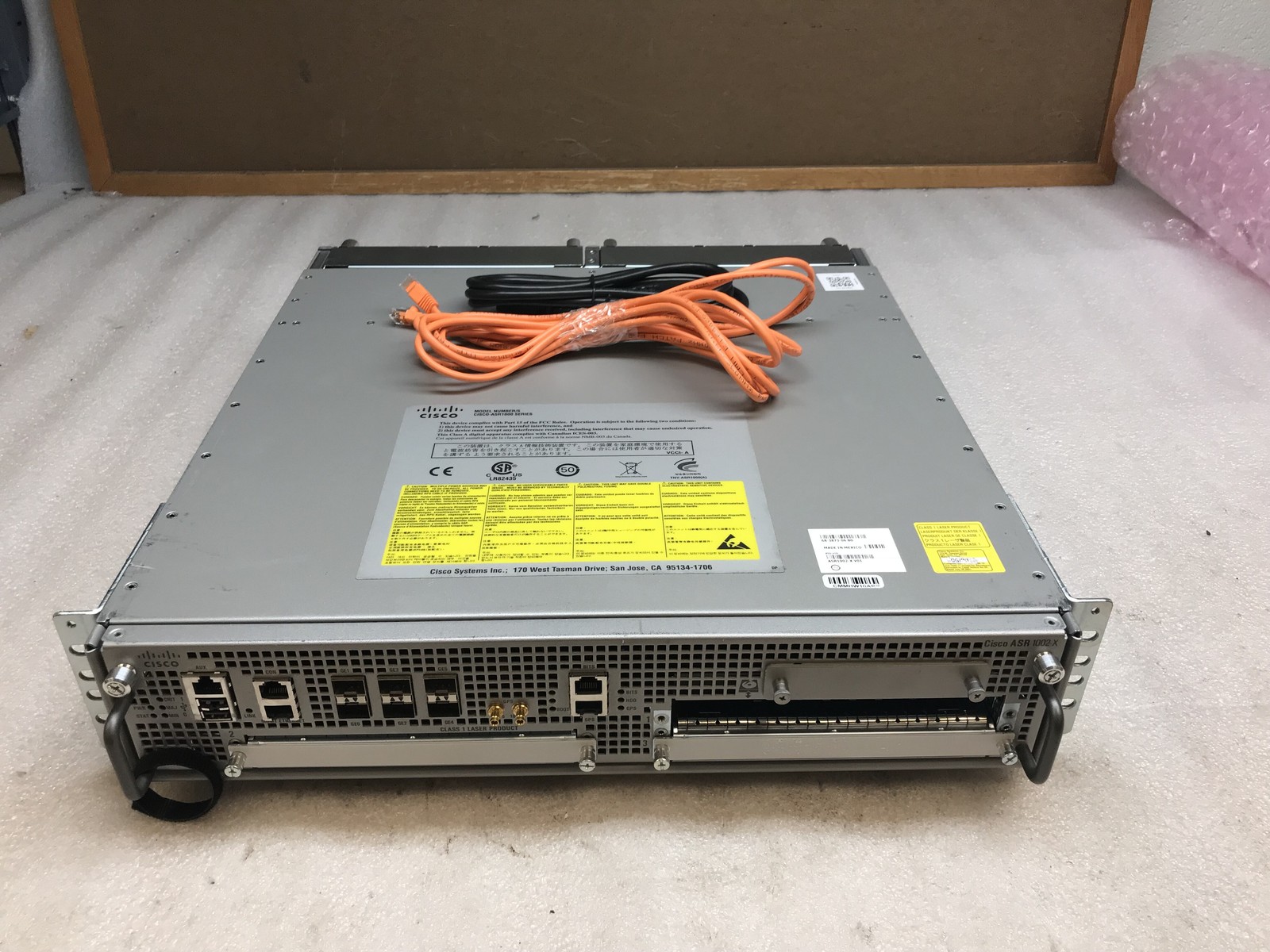

Listing Grid template example Product Photo Description Cisco ASR1002-X V01 5Gbps Adv Enterprise Router Dual AC PSU Tested Cisco ASR1002-X V01 5Gbps Adv Enterprise Router Dual AC PSU Tested

The Cisco ASR1002-X is a high-performance 2RU Aggregation Services Router designed for enterprise, data-center, and service-provider networking environments. This unit has been console tested, reset, and verified to boot normally from its saved IOS XE image. It includes dual redundant AC power supplies and a permanent Advanced Enterprise license with 5 Gbps licensed Cisco

Model: ASR1002-X

Chassis Revision: V01

Device Type: Aggregation Services Router

Network Layer: Layer 3

Licensed Throughput: 5 Gbps

License Level: Advanced Enterprise

License Type: Permanent

Additional License: Permanent AVC

Operating System: Cisco IOS XE 3.13.06.S

Cisco IOS Version: 15.4(3)S6

System Memory: 8 GB

Internal Bootflash: Approximately 6.7 GB

Built-In Network Ports: 6x Gigabit Ethernet SFP

Expansion: 3x SPA slots

Installed SPA Modules: None

Power Supplies: 2x Cisco ASR1002-PWR-AC

Power Supply Revision: V03

Form Factor: 2RU rackmount

PoE Support: No

Stackable: No

Key Features

• Permanent 5 Gbps throughput license
• Permanent Advanced Enterprise feature license
• Six integrated Gigabit Ethernet SFP interfaces
• Integrated route and forwarding processors
• Three SPA expansion slots for compatible interface modules
• Dual redundant, hot-swappable AC power supplies
• IOS XE modular operating system
• Suitable for WAN aggregation, enterprise routing and service-provider applications

Testing Performed

• Successfully powered on with both power supplies
• Successfully completed system boot
• Correct IOS XE image configured and retained
• Configuration register verified at 0x2102
• Startup configuration retention tested
• Route processor verified OK,Active
• Forwarding processor verified OK,Active
• Built-in six-port interface module verified OK
• Both AC power supplies verified OK
• Environmental sensors, voltages and temperatures verified normal
• NVRAM tested and operating properly
• Bootflash tested and operating properly
• Configuration reset with generic hostname and required boot setting retained

Important Notes

• Physical chassis label identifies the unit as V01.
• Router is licensed for 5 Gbps throughput. Higher throughput levels are not activated.
• No optional SPA interface modules or SFP transceivers are installed.
• The saved configuration contains only the generic hostname and boot configuration required to load the correct IOS XE image.
• Unit may have scratches, scuffs, label residue or other cosmetic wear from previous use.
• Please review all photographs for the exact physical condition.

Included

• 1x Cisco ASR1002-X V01 Aggregation Services Router
• 2x Cisco ASR1002-PWR-AC Power Supplies
• Rack Ears
• Power Cable
• Ethernet Cable

Not Included

• Manual
• Original packaging

Specifications Functional Condition:
F3 - Key Functions Working

Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.

Cosmetic Condition:
C4 - Used Good

Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.

Data Sanitization:
S3 - Data Clear

Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22

Mpn
ASR1002-X V01 Function Tests Powers On
Passed Physical Inspection
Passed Functions
Passed Buttons
Passed Shipping
