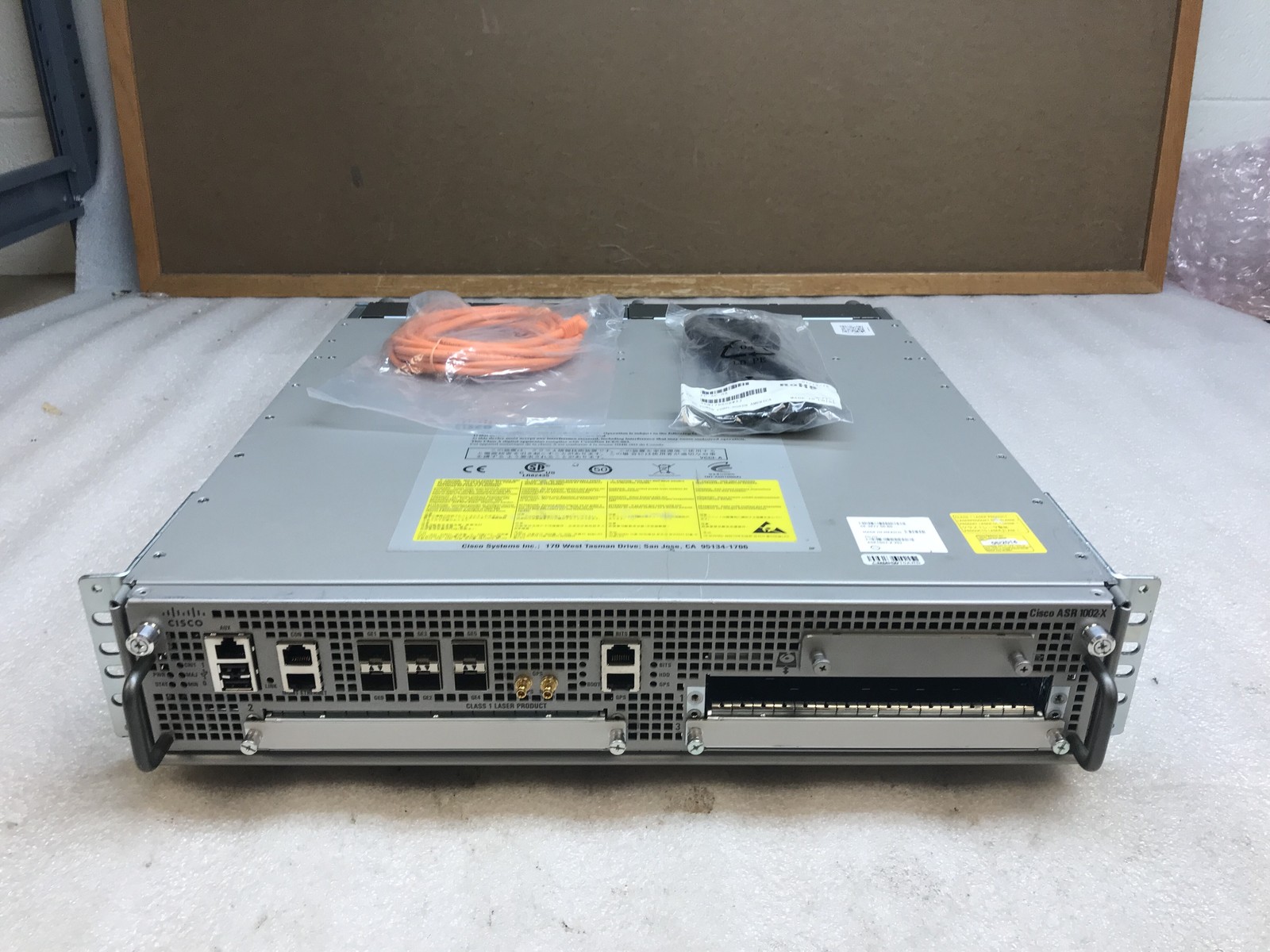

Listing Grid template example Product Photo Description Cisco ASR1002-X V01 5Gbps Router Dual AC PSU Advanced Enterprise License Cisco ASR1002-X V01 5Gbps Adv Enterprise Router Dual AC PSU Tested

The Cisco ASR1002-X is a high-performance enterprise edge router designed for WAN aggregation, data-center interconnects, managed services, and other demanding network applications. This unit has been console-tested, successfully rebooted, and verified to retain its startup configuration. It has a confirmed 5 Gbps throughput level, permanent Advanced Enterprise Services licensing, 8 GB of memory, six integrated Gigabit Ethernet interfaces, and dual working AC power Cisco

Model: ASR1002-X

Exterior hardware version: V01

IOS inventory hardware revision: V02

Chassis serial number: FOX1813GW4S

IOS-XE version: 03.13.06a.S

Cisco IOS version: 15.4(3)S6a

Software package: Advanced Enterprise Services

License type: Permanent

Licensed throughput level: 5 Gbps

Installed memory: 8 GB

Bootflash capacity: Approximately 6.68 GB

Integrated interfaces: 6× Gigabit Ethernet

Power supplies: 2× Cisco ASR1002-PWR-AC V03

Form factor: 2RU rack-mountable

Configuration register: 0x2102

Hostname: Router

Key Features

• Confirmed 5 Gbps system throughput
• Permanent Advanced Enterprise Services license
• Six integrated Gigabit Ethernet interfaces
• Dual redundant AC power supplies
• Integrated route and forwarding processors
• Modular expansion capability
• Suitable for enterprise WAN, edge-routing, aggregation, and service-provider applications
• IOS-XE universal software image installed
• Startup configuration successfully saved and retained after reboot
• Boot variable properly configured for automatic startup

Testing Performed

• Successfully powered on and completed the boot process
• Successfully booted from the configured IOS-XE image
• IOS image read and MD5 verification completed
• Confirmed 5,000,000 kb/s throughput level
• Confirmed permanent Advanced Enterprise Services licensing
• Confirmed both AC power supplies report OK
• Confirmed route processor reports OK and active
• Confirmed forwarding processor reports OK and active
• Confirmed all six built-in Gigabit Ethernet interfaces are recognized
• Confirmed configuration can be written to NVRAM
• Confirmed startup configuration survives a complete reboot
• Confirmed configuration register is correctly set to 0x2102
• Temperatures, voltages, and cooling system tested within normal operating parameters

Important Notes

• The exterior chassis label identifies the unit as V01, while Cisco IOS inventory reports hardware revision V02.
• This is previously used enterprise equipment and may show scratches, scuffs, label residue, or other cosmetic wear from normal installation and removal.
• No passwords or customer-specific configurations are installed.
• Buyers are responsible for verifying software, licensing, and compatibility requirements for their intended Cisco ASR1002-X Router
• 2× Cisco ASR1002-PWR-AC Power Supplies
• Power Cable
• Ethernet Cable
• Rack Ears

Not Included

• User Manual
• Original Packaging

Specifications Functional Condition:
F3 - Key Functions Working

Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.

Cosmetic Condition:
C4 - Used Good

Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.

Data Sanitization:
S3 - Data Clear

Device has been sanitized by one of the following methods: Factory Reset, NIST 800-88 Clear, or DOD 5220.22

Mpn
ASR1002-X V01 Function Tests Powers On
Passed Physical Inspection
Passed Functions
Passed Buttons
