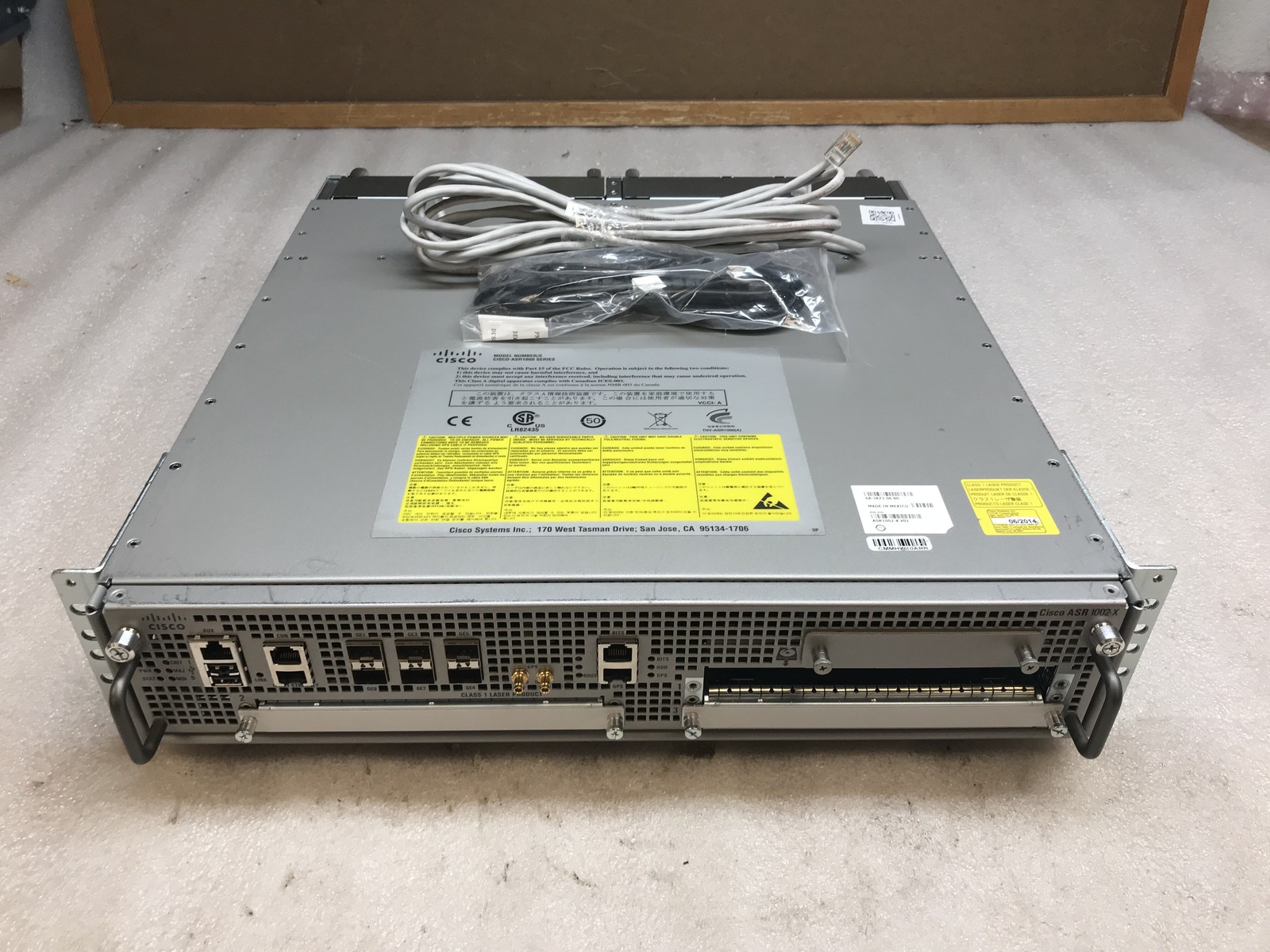

Listing Grid template example Product Photo Description Cisco ASR1002-X V01 Aggregation Services Router Dual AC PSU 5Gbps Tested Cisco ASR1002-X V01 Aggregation Services Router Dual AC PSU 5Gbps Tested
The Cisco ASR1002-X is an enterprise-class aggregation services router designed for WAN aggregation, edge routing, VPN, and high-performance network deployments. This unit has been console tested, successfully boots into Cisco IOS XE, retains its saved configuration, and recognizes all installed hardware.
The router is configured to boot from the newest installed IOS image. Both power supplies, cooling fans, route processor, forwarding processor, and integrated interface module report normal operation. Unused network interfaces were administratively shut down to prevent expected missing-transceiver and disconnected-link alarms.
Specifications
- Model: Cisco ASR1002-X
- Physical version: V01
- Electronic chassis revision: V02
- Chassis serial number: FOX1813GW4W
- Installed memory: 8 GB
- Bootflash capacity: Approximately 6.7 GB
- Licensed throughput: 5 Gbps
- Feature license: Advanced Enterprise
- Installed operating system: Cisco IOS XE 03.13.06.S
- Cisco IOS version: 15.4(3)S6
- System register: 0x2102
- Six integrated Gigabit Ethernet SFP interfaces
- Dedicated Ethernet management interface
- Dual hot-swappable AC power supplies
- Rack-mountable Power over Ethernet support
Key Features
- Enterprise aggregation and edge-routing platform
- Permanent Advanced Enterprise feature license
- Licensed for up to 5 Gbps aggregate throughput
- Integrated route and forwarding processors
- Redundant AC power supplies
- Supports IPv4 and IPv6 routing
- Supports MPLS, VPN, QoS, firewall, and advanced routing features
- Multiple Cisco IOS XE images retained in bootflash
- Boot variable corrected and verified
- Saved configuration successfully retained through reboot
- All installed hardware reports operational status
Testing Performed
- Powered on and completed full boot process
- Console access tested
- Both AC power supplies detected and operational
- Fans and temperature sensors checked
- Route processor and forwarding processor checked
- Integrated six-port interface module detected
- Bootflash filesystem accessed successfully
- NVRAM configuration successfully saved and retained
- Configuration register verified at 0x2102
- IOS boot variable configured for IOS 15.4(3)S6
- Router successfully booted from the selected system image
- Unused interfaces administratively disabled
- Previous user configuration removed
- Hostname returned to Router
Important Notes
- The exterior label identifies the unit as V01, while the electronic Cisco inventory reports chassis revision V02.
- Empty SFP interfaces may report informational transceiver-missing conditions when no modules are installed. This is normal and does not indicate failed hardware.
- Cosmetic wear, scratches, or marks may be present from previous rack installation.
- Buyers are responsible for confirming software, licensing, and feature compatibility with their intended Cisco ASR1002-X Aggregation Services Router
- 2x Cisco ASR1002-PWR-AC Power Supply Modules
- Rack Ears
- Power Cable
- Ethernet Cable
Not Included
- User Manual
- Original Packaging
Specifications Functional Condition:
F3 - Key Functions Working
Equipment in this category has undergone testing to confirm that its core functionalities are operational. Essential functions that a typical user would expect are verified working. Secondary functions or software may not be present or configured. Units may be missing components or parts that are not essential to key functions.
Cosmetic Condition:
C4 - Used Good
Good overall used condition. Some light scratches or scuffs. No dents, dings or cracks.
Data Sanitization:
S2 - Non-Data
Device has been assessed as a device that does not contain data, or data has been physically removed.
